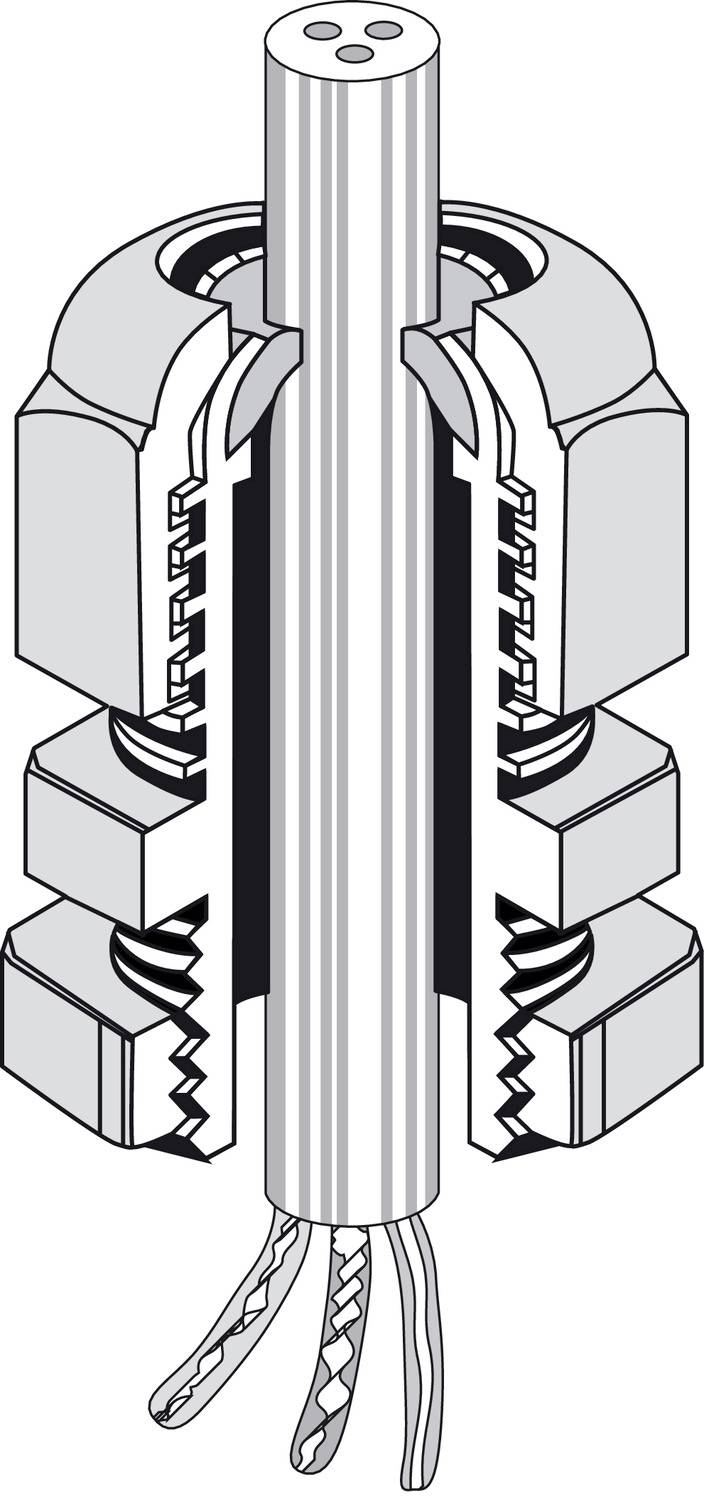

Hensel 3600208 Cable gland with locknut, with strain relief, shockproof Plastic Light grey 1 pc(s)
Product type
Cable gland
External thread
M12
Type
straight
Material
Plastic
Clamp Ø
4 mm
EAN:
Part number:
Item no:
Technical specifications
- Type of seal: Sealing ring
- Cable gland: no.
- Suitable for cable diameters of 4 to 6 mm
- Metric thread size: 12
- Thread pitch 2 mm
- Surface: Untreated
- Hexagonal corner dimensions 16 mm
- Material quality: Polyamide (PA)
- Product type
Cable gland
- Features
with locknut
with strain relief
shockproof
- Factory colour
Light grey
- External thread
M12
- Type
straight
- Material
Plastic
- Clamp Ø
4 mm
- Terminal Ø (max.)
6 mm
- Thread length
8 mm
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP67
- Spanner size
15 mm
- Dimensions
16 mm
- Halogen-free
Yes
- Content
1 pc(s)
- Dim
16
- RoHS-compliant
Yes
- Manufacturer part #
3600208
- Type
AKM 12
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295236 Hensel 3600208 Cable gland with locknut, with strain relief, shockproof Plastic Light grey 1 pc(s)
Description
Attachment cable socket for knockouts M 12. Sealing range Ø 4-6 mm.
