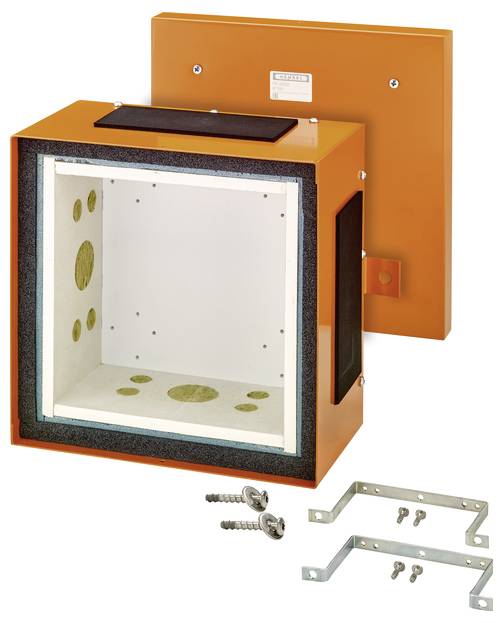

Hensel 60001073 Junction box Weather-proof (L x W) 255 mm x 255 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 20
- Type of housing bushing: Sealing membrane
- Rated insulation voltage UI: 100 V.
- Assembly: None
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -25..40 °C.
- Shape: Square
- Protection class IP55
- Pourable: no.
- Casting compound supplied: no.
- Material: Steel
- Product type
Junction box
- Features
Weather-proof
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Orange

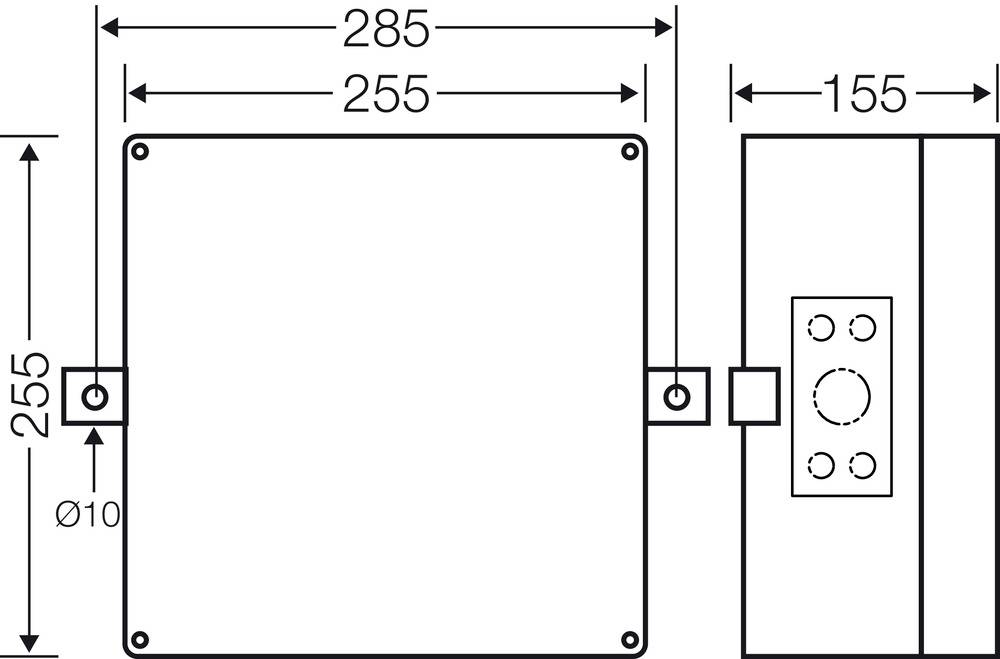

- Dim
(L x W) 255 mm x 255 mm
- Length
255 mm
- Width
255 mm
- Depth
160 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293205 Hensel 60001073 Junction box Weather-proof (L x W) 255 mm x 255 mm 1 pc(s)
Description
Communication distributor without terminals, for the installation of telecommunication connection strips. With mounting bracket for fixing a maximum of 2 telecommunications connection strips. Cable entry via integrated elastic sealing membranes. With general building supervision approval from the German Institute for Building Technology. The approval of the construction and supervisory authority for the individual case is necessary for the use.
This text is machine translated.
This text is machine translated.
