Hensel 61000726 Terminal Screws, Jack connector Multicolour 1 pc(s)
Packaging type
Piece
Product type
Terminal
Connection
Screws
Jack connector
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
EAN:
Part number:
Item no:
Highlights & Details

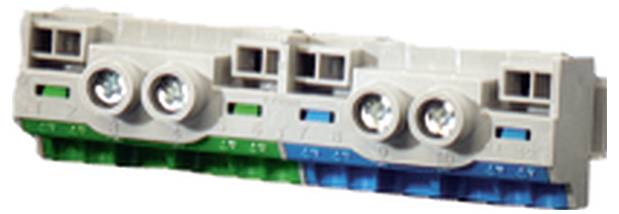

Hensel PE and N terminal KV FC 04
- KV FC 04
Technical specifications
- Design: PE and N terminal
- Connectable conductor cross-section: Fine strand with wire-end sleeve: 2..25 mm²
- Connectable conductor cross-section multi-strand 2..25 mm²
- Connection position: Lateral
- Number of terminal points per pole: 6
- Operating temperature: 40 °C
- Mounting type: Direct mounting
- Material of the insulating body: Thermoplastic
- Packaging type
Piece
- Product type
Terminal
- Connection
Screws
Jack connector
- Cross section (flexible) (min.)
2 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
2 mm²
- Cross section (inflexible) (max.)
25 mm²
- Number of pins
2
- Factory colour
Multicolour
- Nominal current
101 A
- Nominal current - rounded value
101 A
- Nominal voltage
690 V
- Manufacturer part #
61000726
- Content
1 pc(s)
- Type
KV FC 04
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297827 Hensel 61000726 Terminal Screws, Jack connector Multicolour 1 pc(s)
Description
KV-PE and N terminal for small distribution boards with 4.5 division units. FIXCONNECT plug-in terminal technology.
