Hensel 61000731 Terminal Screws, Jack connector Multicolour 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Terminal
Connection
Screws
Jack connector
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
Highlights & Details

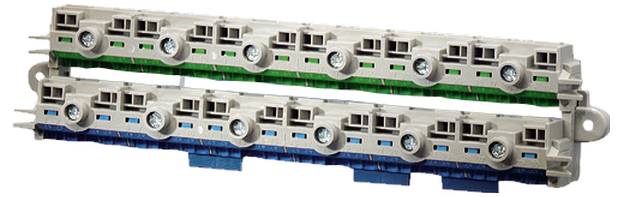

Hensel PE and N terminal KV FC 24
- KV FC 24
Technical specifications
- Design: PE and N terminal
- Connectable conductor cross-section: Fine strand with wire-end sleeve: 2..25 mm²
- Connectable conductor cross-section multi-strand 2..25 mm²
- Connection position: Lateral
- Number of terminal points per pole: 30
- Operating temperature: 40 °C
- Mounting type: Direct mounting
- Material of the insulating body: Thermoplastic
- Packaging type
Piece
- Product type
Terminal
- Connection
Screws
Jack connector
- Cross section (flexible) (min.)
2 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
2 mm²
- Cross section (inflexible) (max.)
25 mm²
- Number of pins
2
- Factory colour
Multicolour
- Nominal current
75 A
- Nominal current - rounded value
75 A
- Nominal voltage
690 V
- Manufacturer part #
61000731
- Content
1 pc(s)
- Type
KV FC 24
- Insulation material
Thermoplastic material
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295853 Hensel 61000731 Terminal Screws, Jack connector Multicolour 1 pc(s)
Description
KV PE and N terminal for small distributors with 12 division units per row and KV empty housing. FIXCONNECT plug-in terminal technology. N separable, up to 4 different potentials.
