Hensel 61001159 N terminal Screws, Jack connector Blue 1 pc(s)
Product type
N terminal
Connection
Screws
Jack connector
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
Nominal current - rounded value
75 A
EAN:
Part number:
Item no:
Highlights & Details

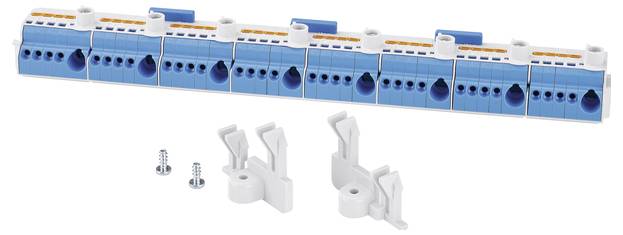

Hensel N-separator terminal, retrofit kit KV FC 35 NT
- KV FC 35 NT
Technical specifications
- Design: N-separator terminal, field installation kit
- Connectable conductor cross-section: Fine strand with wire-end sleeve: 2..16 mm²
- Connectable conductor cross-section multi-strand 2..25 mm²
- Connection position: Lateral
- Number of terminal points per pole: 40
- Operating temperature: 40 °C
- Mounting type: Direct mounting
- Material of the insulating body: Thermoplastic
- Product type
N terminal
- Features
+ separator
- Connection
Screws
Jack connector
- Configuration
N
- Cross section (flexible) (min.)
2 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
2 mm²
- Cross section (inflexible) (max.)
25 mm²
- Number of pins
1
- Factory colour
Blue
- Nominal current
75 A
- Nominal current - rounded value
75 A
- Nominal voltage
690 V
- Manufacturer part #
61001159
- Content
1 pc(s)
- Type
KV FC 35 NT
- Connector colour
Blue
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295201 Hensel 61001159 N terminal Screws, Jack connector Blue 1 pc(s)
Description
N terminal in FIXCONNECT NT terminal technology. From 1.5 mm² to 4 mm² for single-wire and flexible copper conductors as plug-in terminals with N-separation function. Clamp terminals from 1.5 mm² to 25 mm² with wire protection and protection against self-loosening for single-wire, multi-wire and flexible copper conductors. Suitable for installation in Hensel KV small distribution boards. Number of clamping points 6 x 25 mm² and 24 x 4 mm²
