Hensel 62000009 Junction box Halogen-free, Sealable (L x W) 180 mm x 130 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 10
- Rated insulation voltage UI: 690 V.
- Assembly: Terminal
- Lid mounting: Screwed
- Introduction from behind: Yes
- Operating temperature: -25..40 °C.
- Shape: Rectangular
- Max. Conductor cross-section 10 mm²
- Surface: Untreated
- IP66 protection rating
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Grey
- Dim

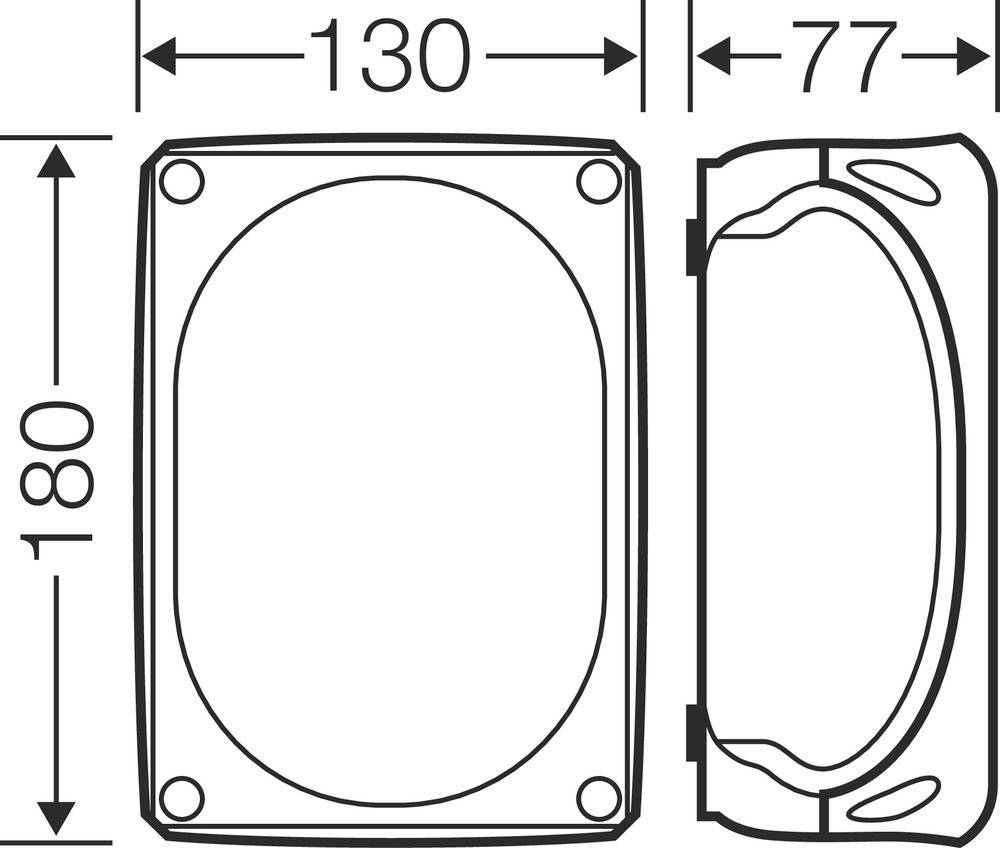

(L x W) 180 mm x 130 mm
- Length
180 mm
- Width
130 mm
- Depth
77 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293210 Hensel 62000009 Junction box Halogen-free, Sealable (L x W) 180 mm x 130 mm 1 pc(s)
Description

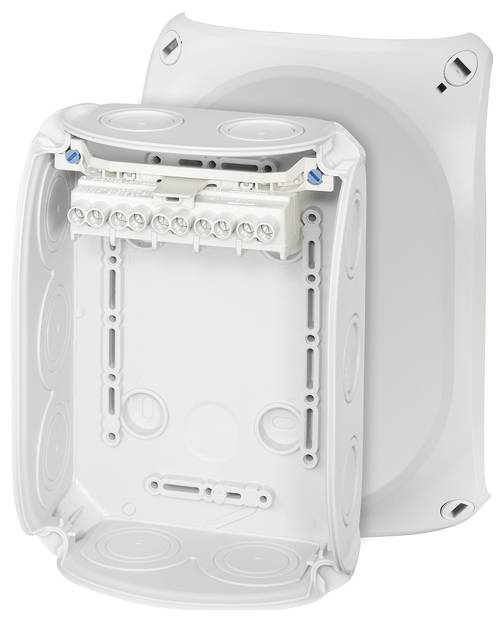

Cable junction box made of high-quality thermoplastic. For surface-mounting applications in buildings or protected installation outdoors. With external straps for fixing and lid fixing via quick-release fasteners. With innovative clamping technology up to 6 mm², 5-pin. Cable entry via elastic sealing membranes in housing walls and floor. Subsequent use of cable supports by removing the sealing membrane. With cover strap.
This text is machine translated.
This text is machine translated.
