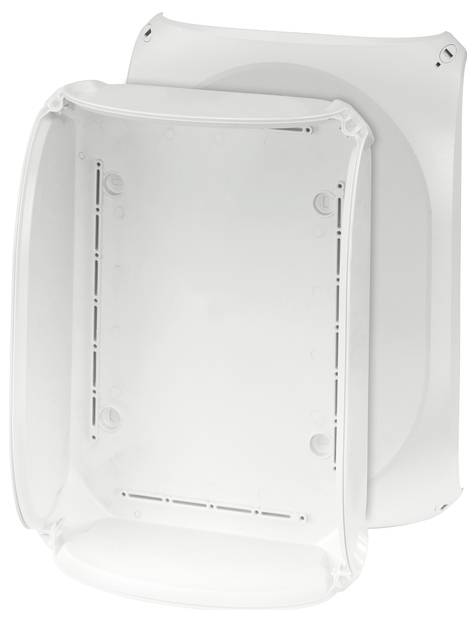

Hensel 62000095 Junction box Halogen-free, Sealable, Weather-proof (L x W) 355 mm x 255 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of Introductions: 2
- Type of housing bushing: None
- Assembly: None
- Lid mounting: Screwed
- Introduction from behind: Yes
- Operating temperature: -25..70 °C.
- Shape: Rectangular
- Surface: Untreated
- Protection class IP66/IP67
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
Weather-proof
- Mounting type
Surface-mount
- Max. fire resistance
70 °C
- Content
1 pc(s)
- Factory colour
Grey

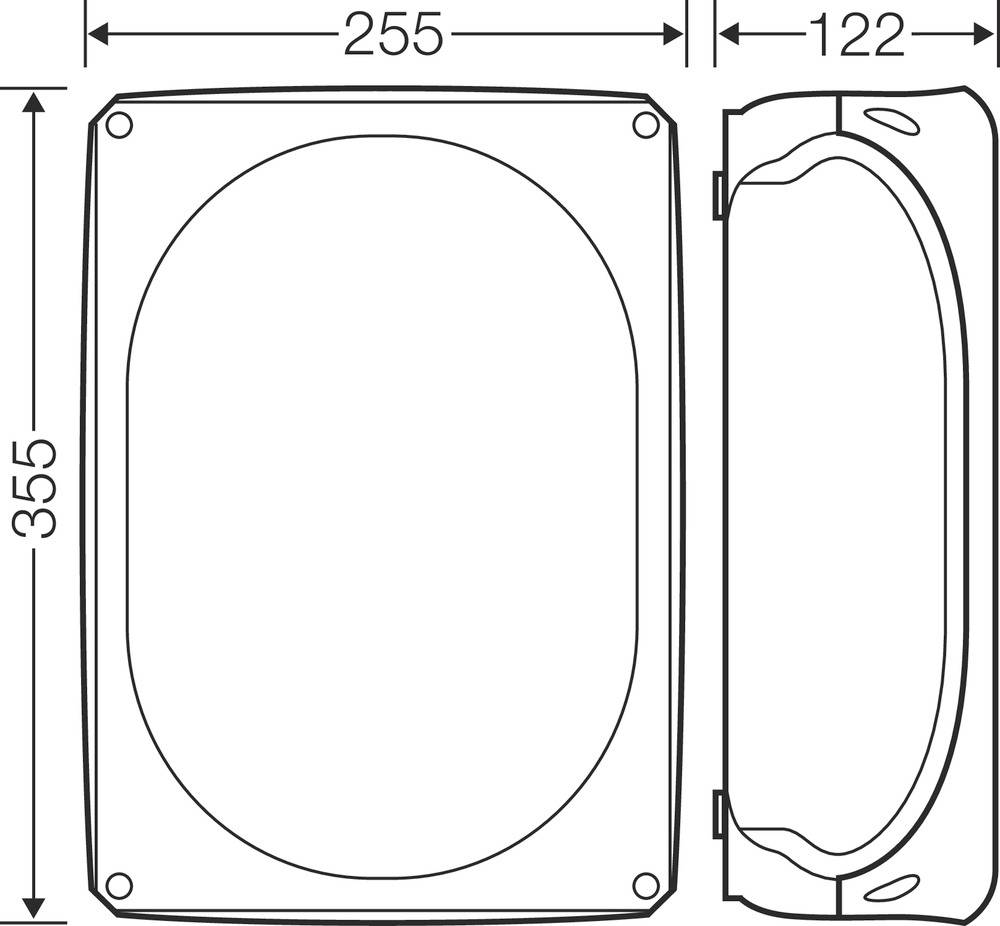

- Dim
(L x W) 355 mm x 255 mm
- Length
355 mm
- Width
255 mm
- Depth
122 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297848 Hensel 62000095 Junction box Halogen-free, Sealable, Weather-proof (L x W) 355 mm x 255 mm 1 pc(s)
Description
Cable junction box made of high-quality thermoplastic for unprotected outdoor installation or surface-mounted applications in buildings. Resistant to weather influences such as UV exposure to sunlight, protected against rain water, temperature resistant and impact resistant. Cover attachment via quick-release fasteners. With external straps for attachment. Seawater-resistant, for offshore applications. With approval for installation on ships. Cable junction box without terminal. Housing walls without knockouts. Cable entries can be drilled individually. Wall area can be used for cable entry max. m 63.
