Hensel 62000101 Junction box Halogen-free, Sealable, Weather-proof (L x W) 104 mm x 104 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 7
- Type of housing bushing: Prestamped
- Rated insulation voltage UI: 690 V.
- Assembly: Terminal
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -25..70 °C.
- Shape: Square
- Max. Conductor cross-section: 6 mm²
- Surface: Untreated
- Protection class: IP68
- Pouring: Yes
- Casting compound supplied: Yes
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
Weather-proof
- Mounting type
Surface-mount
- Max. fire resistance
70 °C
- Content
1 pc(s)
- Factory colour
Grey
- Dim
(L x W) 104 mm x 104 mm
- Length
104 mm
- Width
104 mm
- Depth
70 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297365 Hensel 62000101 Junction box Halogen-free, Sealable, Weather-proof (L x W) 104 mm x 104 mm 1 pc(s)
Description

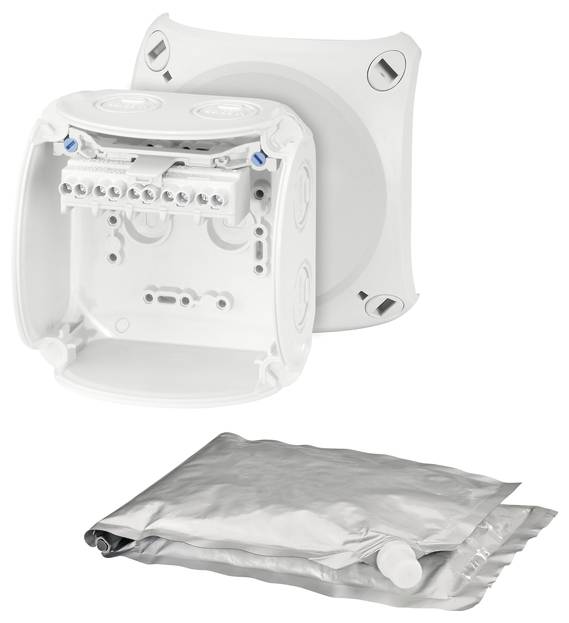

Cable junction box made of high-quality thermoplastic for potting for a waterproof connection. For unprotected installation outdoors in the event of the risk of condensation and/or liquid ingress, for installation in the ground without traffic loads. Can be used for heating cable / heating tape up to max. 70 °C surface temperature. For re-installation or testing, the lid can be removed and the casting compound removed. Cover attachment via quick-release fasteners. With external straps for attachment. With terminals up to 4 mm², 5-pin. Cable entry via metric knockouts in housing walls. Extension cable connection in the accessories. With casting compound and sealing plugs.
This text is machine translated.
This text is machine translated.
