Name: Hensel 62000335 Junction box (L x W) 93.00 mm x 93.00 mm 1 pc(s)
Brand: Hensel
SKU: 3162997

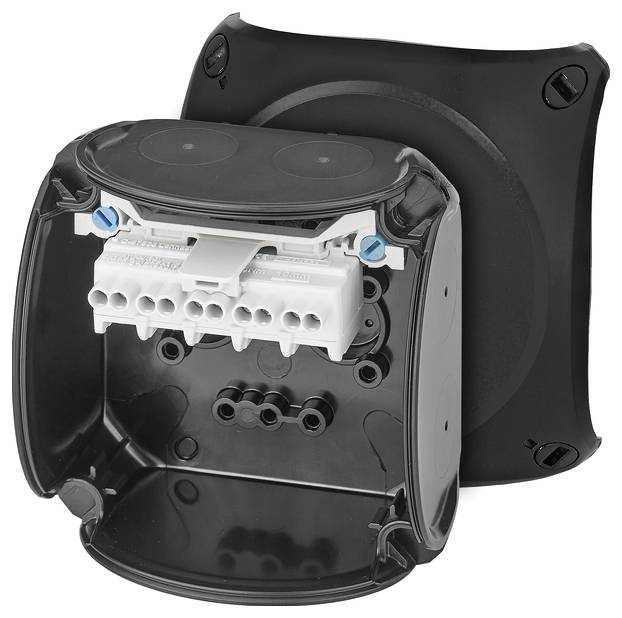

Black, open plastic box with white electrical connectors and blue screws, suitable for electrical installations.

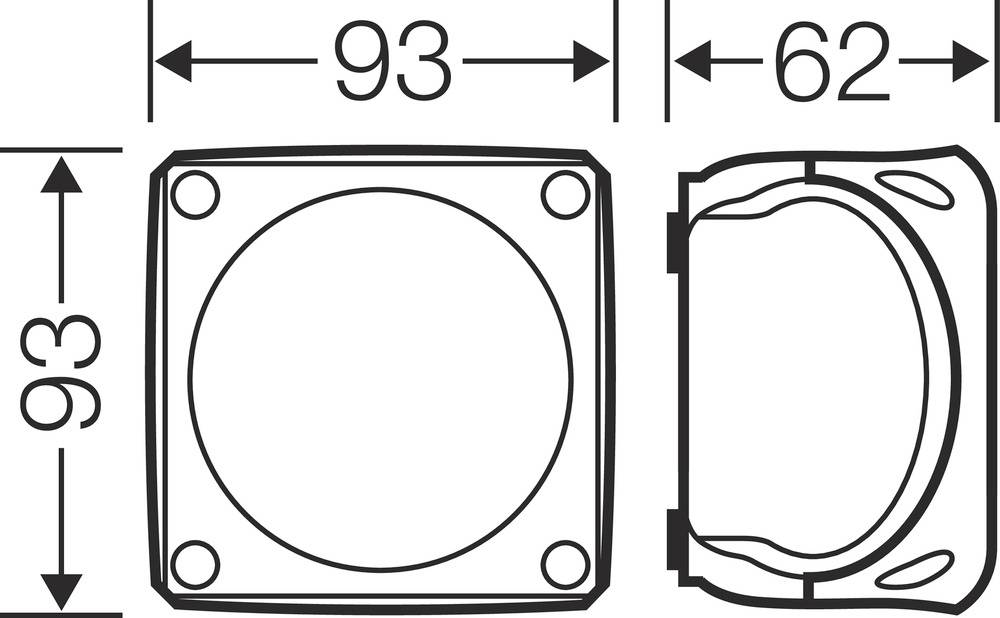

Technical drawing of a square object with dimensions: Height 93 mm, Width 93 mm, Depth 62 mm. Shows front and side view.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Max. Conductor cross-section: 4 mm²
Equipment: Terminal
Shape: Square
Mounting type: Wall/ceiling mounting
Introduction from behind: No.
Length: 93 mm
Width 93 mm
Depth: 62 mm
Can be stacked: No.
Number of inserts: 7
Type of housing bushing: Other
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Colour, black
Protection class (IP) IP66
Design cover: Blind cover
Cover attachment: Screwed
Can be potted: No.
Supplied with casting compound: No.
Lead-sealable: No.
Rated insulation voltage UI 690 V
Function retention: Without
With shielding: No.
Weather resistant: Yes
Operating temperature -20..40°C
Explosion-tested version: Yes
For ex-zone gas: 2
For Ex-Zone Dust: 22

Product type: Junction box

Features: Weather-proof

Mounting type: Surface-mount

Content: 1 pc(s)

Factory colour: Black

Dim: (L x W) 93.00 mm x 93.00 mm

Length: 93.00 mm

Width: 93.00 mm

Depth: 62.00 mm

: IP66

Material (details): Plastic

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3162997 Hensel 62000335 Junction box (L x W) 93.00 mm x 93.00 mm 1 pc(s)

Description

Ex-cable junction box made of high quality thermoplastic for unprotected outdoor installation or surface-mounted applications in buildings in Ex-zones 2 and 22. Resistant to weather influences, such as UV exposure to solar radiation, protected against rain water, temperature-resistant and impact-resistant. Cover attachment via quick-release fasteners With external brackets for mounting. With innovative terminal technology up to 2.5 mm², 5-pin. Cable entry via boring at the marked places on the casing walls. EX-mounting cable supports in accessories.
