Name: Hensel 62000337 Junction box (L x W) 130.00 mm x 130.00 mm 1 pc(s)
Brand: Hensel
SKU: 3163010

A black, open plastic enclosure with visible screw fixings and internal electrical connection terminals.

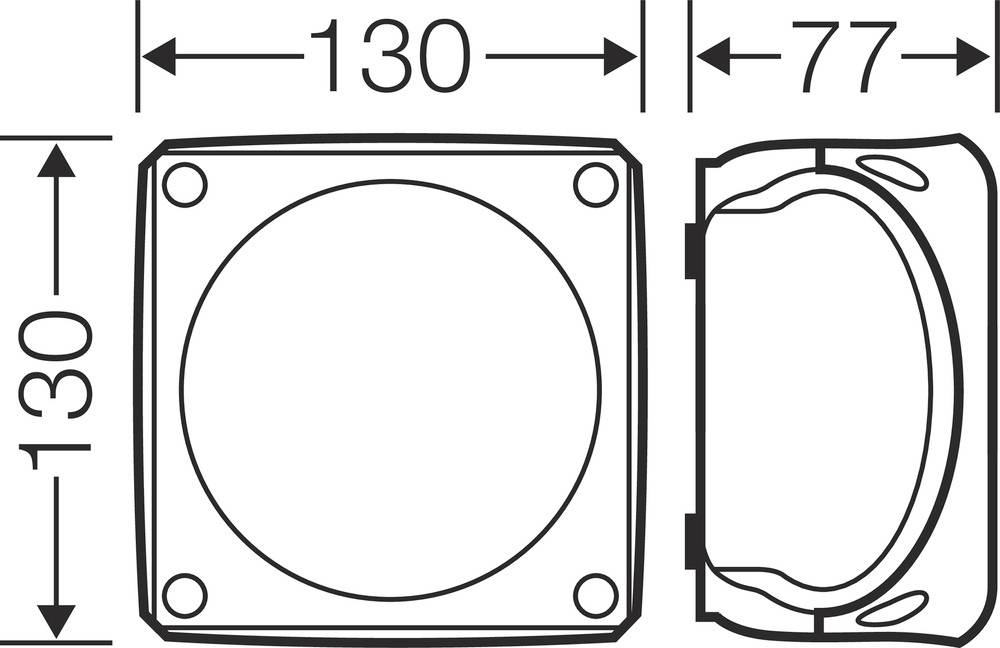

Drawing of a rectangular enclosure with dimensions of 130 x 130 mm in the top view and 77 mm in the side view.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Max. Conductor cross-section: 10 mm²
Equipment: Terminal
Shape: Square
Mounting type: Wall/ceiling mounting
Introduction from behind: No.
Length 130 mm.
Width 130 mm
Depth: 77 mm
Can be stacked: No.
Number of inserts: 7
Type of housing bushing: Other
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Colour, black
Protection class (IP) IP66
Design cover: Blind cover
Cover attachment: Screwed
Can be potted: No.
Supplied with casting compound: No.
Lead-sealable: No.
Rated insulation voltage UI 690 V
Function retention: Without
With shielding: No.
Weather resistant: No.
Operating temperature -20..40°C
Explosion-tested version: Yes
For ex-zone gas: 2
For Ex-Zone Dust: 22

Product type: Junction box

Features: Halogen-free

Mounting type: Surface-mount

Content: 1 pc(s)

Factory colour: Black

Dim: (L x W) 130.00 mm x 130.00 mm

Length: 130.00 mm

Width: 130.00 mm

Depth: 77.00 mm

: IP66

Material (details): Plastic

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3163010 Hensel 62000337 Junction box (L x W) 130.00 mm x 130.00 mm 1 pc(s)

Description

Ex-cable junction box made of high quality thermoplastic for unprotected outdoor installation or surface-mounted applications in buildings in Ex-zones 2 and 22. Resistant to weather influences, such as UV exposure to solar radiation, protected against rain water, temperature-resistant and impact-resistant. Cover attachment via quick-release fasteners With external brackets for mounting. With innovative terminal technology up to 6 mm², 5-pin. Cable entry via boring at the marked places on the casing walls. EX-mounting cable supports in accessories.

This text is machine translated.
