Hensel 62000342 Serial terminal enclosure 130.00 x 130.00 x 77.00 Black 1 pc(s)
Packaging type
Piece
Product type
Serial terminal enclosure
Material
Thermoplastic
IP rating
IP66
Width
130.00 mm
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section: 6 mm²
- Equipment: Terminal
- Shape: Square
- Mounting type: Wall/ceiling mounting
- Introduction from behind: No.
- Length 130 mm.
- Width 130 mm
- Depth: 77 mm
- Can be stacked: No.
- Number of inserts: 7
- Type of housing bushing: Other
- Material: Plastic
- Halogen-free: No.
- Surface protection: Untreated
- Colour, black
- Protection class (IP) IP66
- Design cover: Blind cover
- Cover attachment: Screwed
- Can be potted: No.
- Supplied with casting compound: No.
- Lead-sealable: No.
- Rated insulation voltage UI 690 V
- Function retention: Without
- With shielding: No.
- Weather resistant: Yes
- Operating temperature -20..40°C
- Explosion-tested version: Yes
- For ex-zone gas: 2
- For Ex-Zone Dust: 22
- Packaging type
Piece
- Product type
Serial terminal enclosure
- Features
Explosion-proof
- Material
Thermoplastic
IP66
- Factory colour
Black
- Length
130.00 mm
- Width
130.00 mm
- Height
77 mm
- Dimensions
Länge: 130 mm Breite: 130 mm Tiefe: 77 mm mm
- Content
1 pc(s)
- Type
62000342
- Dim

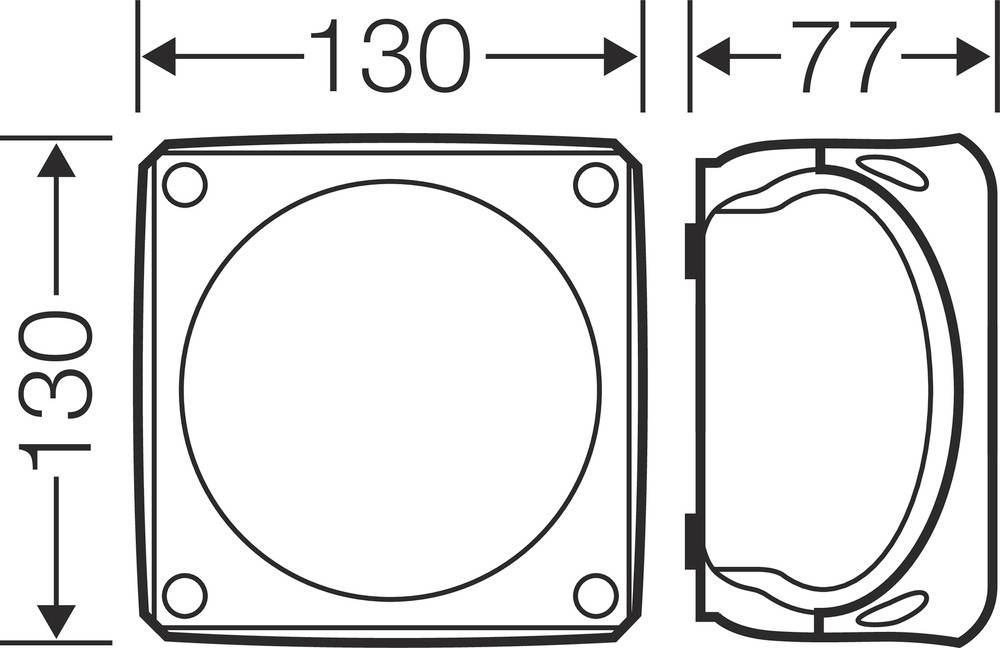

(L x W x H) 130.00 x 130.00 x 77 mm
- Manufacturer part #
62000342
- Depth
77.00 mm
- Material (details)
Plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163741 Hensel 62000342 Serial terminal enclosure 130.00 x 130.00 x 77.00 Black 1 pc(s)
Description

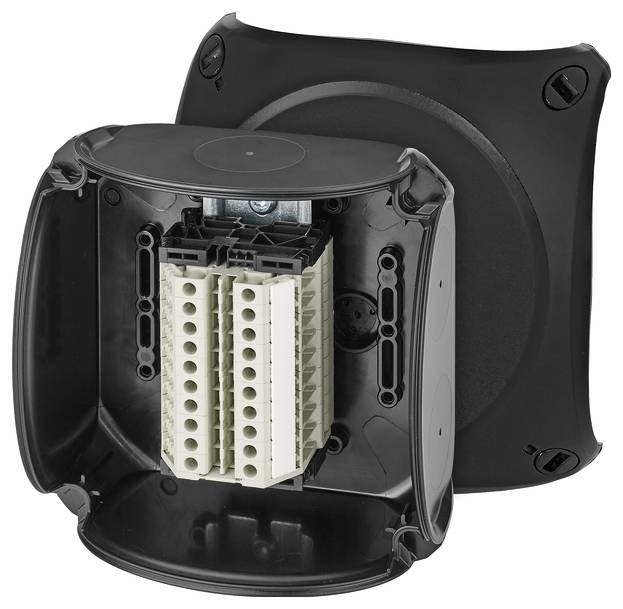

Ex-cable junction box made of high quality thermoplastic for unprotected outdoor installation or surface-mounted applications in buildings in Ex-zones 2 and 22. Resistant to weather influences, such as UV exposure to solar radiation, protected against rain water, temperature-resistant and impact-resistant. Cover attachment via quick-release fasteners With external brackets for mounting. With 10 terminal blocks up to 4 mm². Cable entry via boring at the marked places on the casing walls. EX-mounting cable supports in accessories.
This text is machine translated.
This text is machine translated.
