Hensel 68000039 Terminal Screws, Jack connector Multicolour 1 pc(s)
Packaging type
Piece
Product type
Terminal
Connection
Screws
Jack connector
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
25 mm²
EAN:
Part number:
Item no:
Highlights & Details
Hensel PE-/N-terminal FP FC 54
- FP FC 54
Technical specifications
- Design: PE-/N-terminal
- Connectable conductor cross-section: Fine strand with wire-end sleeve: 6..25 mm²
- Connectable conductor cross-section multi-strand 2..25 mm²
- Connection position: Lateral
- Number of terminal points per pole: 30
- Operating temperature: 40 °C
- Mounting type: Direct mounting
- Material of the insulating body: Thermoplastic
- Packaging type
Piece
- Product type
Terminal
- Connection
Screws
Jack connector
- Cross section (flexible) (min.)
2 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
2 mm²
- Cross section (inflexible) (max.)
25 mm²
- Number of pins
2
- Factory colour
Multicolour
- Nominal current
75 A
- Nominal current - rounded value
75 A
- Nominal voltage
690 V
- Manufacturer part #
68000039
- Content
1 pc(s)
- Type
FP FC 54
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297307 Hensel 68000039 Terminal Screws, Jack connector Multicolour 1 pc(s)
Description

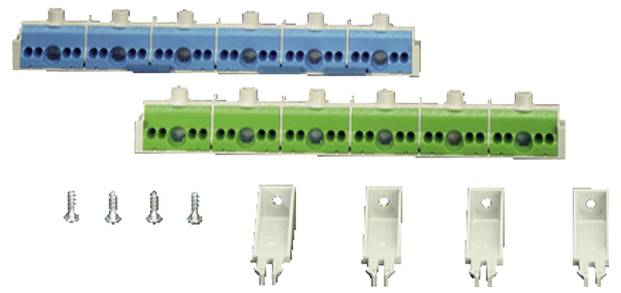

PE and N terminal each PE/N 6 x 25 mm², 24 x 4 mm² for ENYSTAR housing. FIXCONNECT terminal technology for copper conductors. N separable, up to 4 different potentials.
