Hensel 68000217 FP 3402 Switchboard cabinet Surface-mount Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Surface-mount
Width
540 mm
Height
360 mm
Depth
163 mm
Technical specifications
- Attachment option: Yes
- Rated current rail system 250 A.
- Short-circuit strength 28 kA
- Equipped with bus bar: Yes
- With transparent cover: Yes
- Number of pins: 5
- IP66 protection rating
- Housing material: Plastic
- Product type
Switchboard cabinet
- with PE and N terminals
No
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
540 mm
- Height
360 mm
- Dim

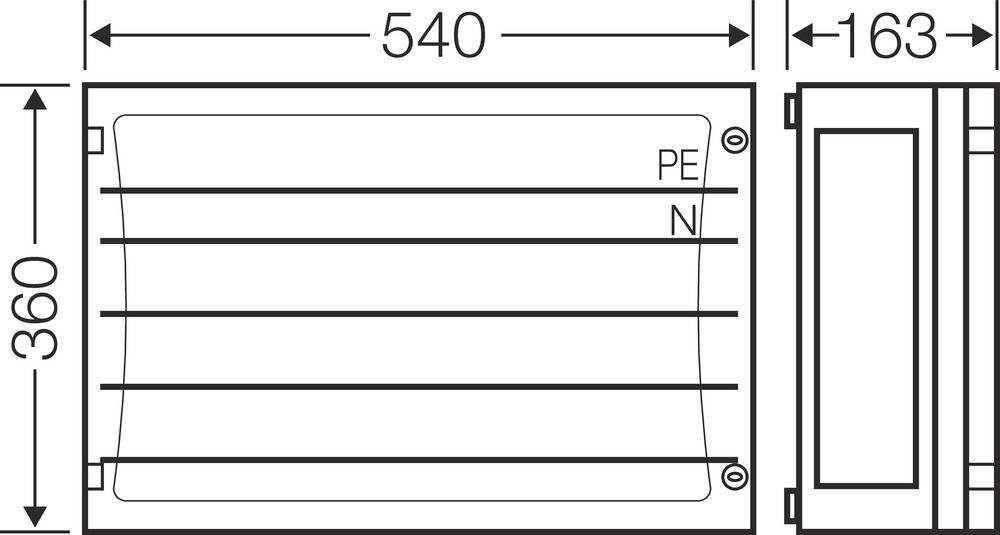

(W x H x D) 540 x 360 x 163 mm
- Depth
163 mm
- Content
1 pc(s)
- Short-circuit withstand rating (Icw)
28 kA
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294062 Hensel 68000217 FP 3402 Switchboard cabinet Surface-mount Content 1 pc(s)
Description

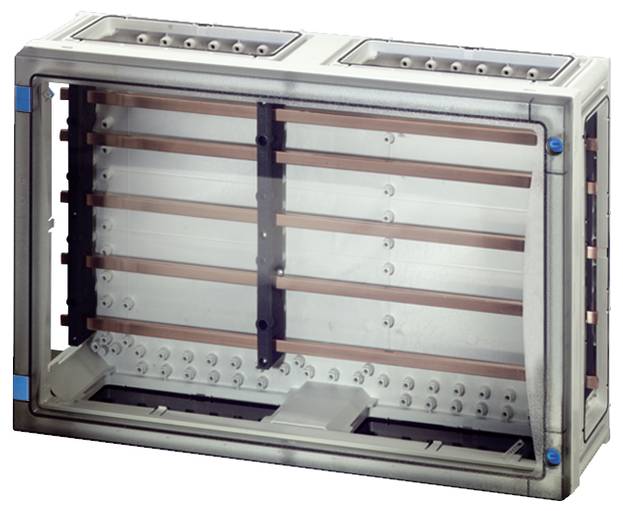

Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Housing with busbars, without device, without terminals. With transparent door and door lock with tool actuation.
