Hensel 68000241 NH fuse holder 250 A
EAN:
Part number:
Item no:
Product type
NH fuse holder
Fuse size
00
Nominal current - rounded value
250 A
Number of pins
3
Nominal current
250 A
Technical specifications
- Attachment option: Yes
- Number of groups: 1
- With transparent cover: Yes
- Placement on rail system: universal
- IP66 protection rating
- Housing material: Plastic
- Product type
NH fuse holder
- Fuse size
00
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Number of pins
3

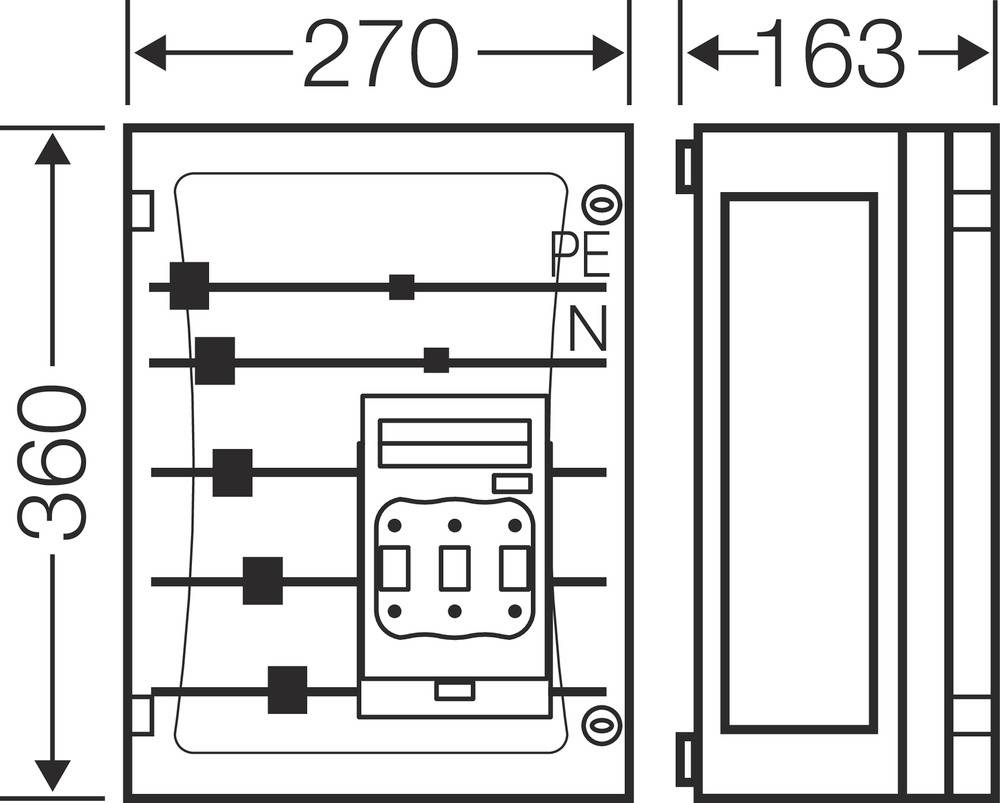

- Dim
(W x H x D) 270 x 360 x 163 mm
- Model
3-phase
- Content
1 pc(s)
- Insulation class
II
- Suitable for
Fuse size 000 - 4
- Width
270 mm
- Height
360 mm
- Depth
163 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297308 Hensel 68000241 NH fuse holder 250 A
Description

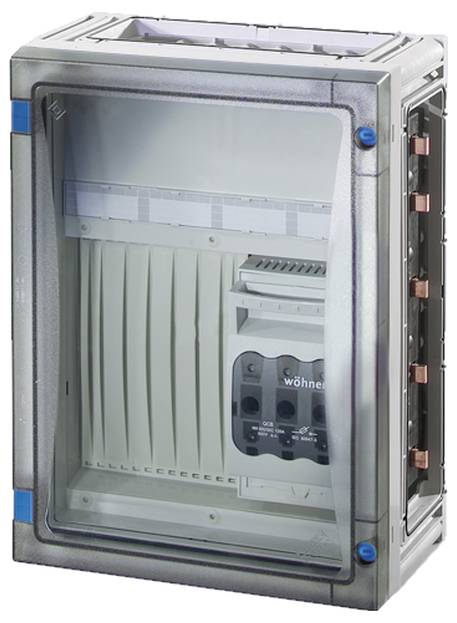

Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Housing with NH 00C fuse switch disconnector, 3-pole, according to IEC 60947-3 on busbars. With feed terminals, PE and N terminals and touch protection. Connection direction can be changed. With transparent door and door lock with tool actuation.
