Hensel FP 0241 68000304 Casing 276 x 366 x 186 Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Casing
Material
Plastic
IP rating
IP66
Width
276 mm
Height
366 mm
Technical specifications
- Attachment option: Yes
- Number of modules: 1
- Number of holes for flange plates: 4
- Number of rows: 1
- Type of cover: Door
- Type of door: Single
- Lid type: Closed
- Installation depth: 136 mm
- Suitable for outdoor use: Yes
- Suitable for lightning protection: no.
- Material thickness housing: 3 mm
- Material thickness door/lid: 3 mm
- Mounting type: Surface-mounted
- Protection class: II
- Product type
Casing
- Features
Cover (clear)
- Material
Plastic
IP66
- Type
Enystar empty housing
- Width
276 mm
- Height
366 mm
- Internal depth
136 mm
- Content
1 pc(s)
- Dim

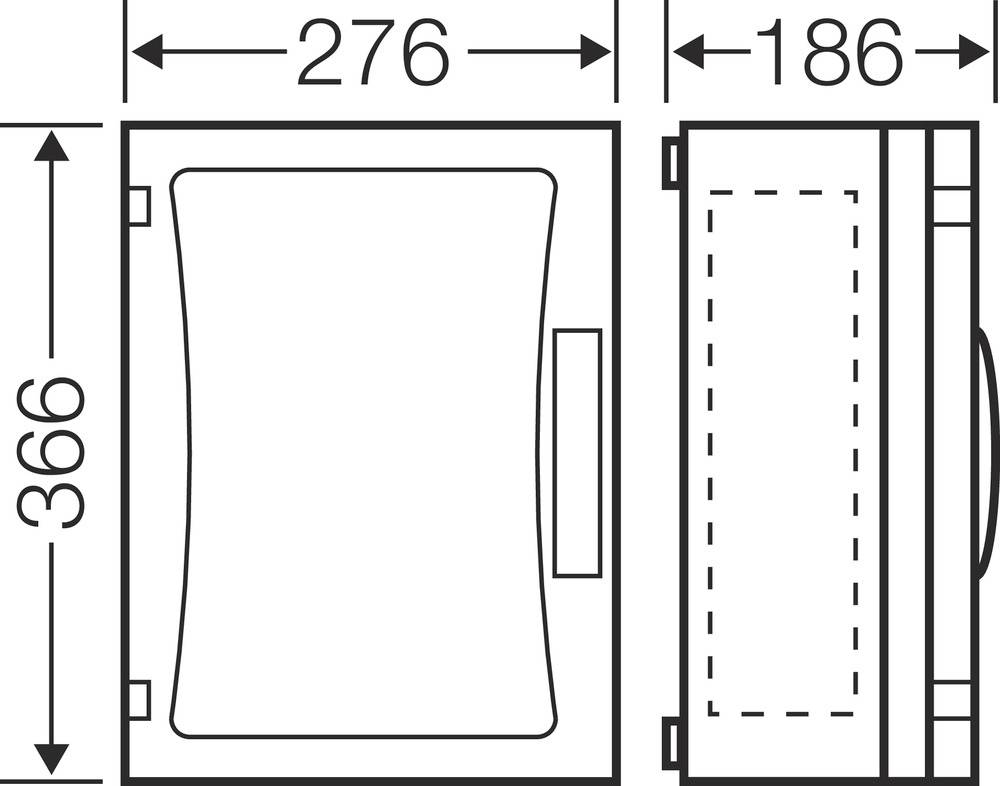

(W x H x D) 276 x 366 x 186 mm
- RoHS-compliant
Yes
- Weight
0
- Depth
186 mm
- Type
FP 0241
Surface mounted (plaster)
II
276
366 mm
186 mm
7035
FALSE
Untreated
136 mm
1
Door
0
Plastic
IK08
IP65
FALSE
Closed
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295076 Hensel FP 0241 68000304 Casing 276 x 366 x 186 Plastic 1 pc(s)
Description

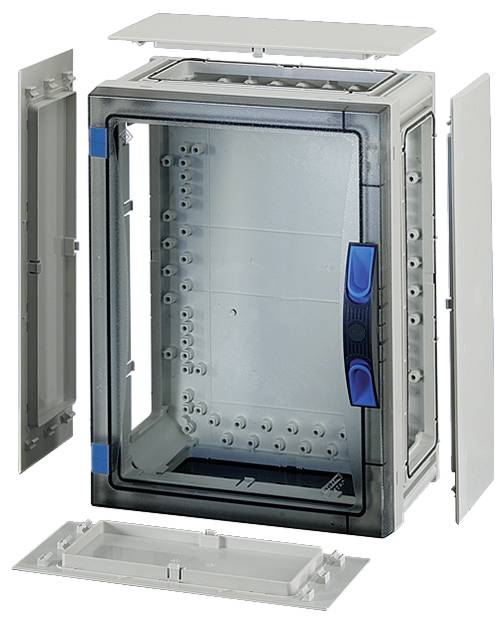

Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Empty housing with transparent door and sealable door lock with manual actuation and locking plate set. For the installation of devices on mounting plate or DIN mounting rail, installation dimensions W 216 x H 306 x D 140 mm. Max. Mounting depth with built-in mounting plate 136 mm, with built-in mounting rail 125 mm.
