Hensel FP 0351 Casing 276 x 546 x 186 Plastic 1 pc(s)
Packaging type
Piece
Product type
Casing
Material
Plastic
IP rating
IP66
Width
276 mm
EAN:
Part number:
Item no:
Technical specifications
- Attachment option: Yes
- Number of modules: 1
- Number of holes for flange plates: 6
- Number of rows: 1
- Door version: Single door, closed
- Installation depth: 136 mm
- Suitable for outdoor use: Yes
- Suitable for lightning protection: no.
- Internal depth 136 mm
- Material thickness housing: 3 mm
- Material thickness door/lid: 3 mm
- Mounting type: Surface-mounted
- Impact strength: IK08
- Protection class: II
- Transparent cover/door: no.
- Packaging type
Piece
- Product type
Casing
- Features
with door
shockproof
- Material
Plastic
IP66
- Type
ENYSTAR empty housing
- Width
276 mm
- Height
546 mm
- Dimensions

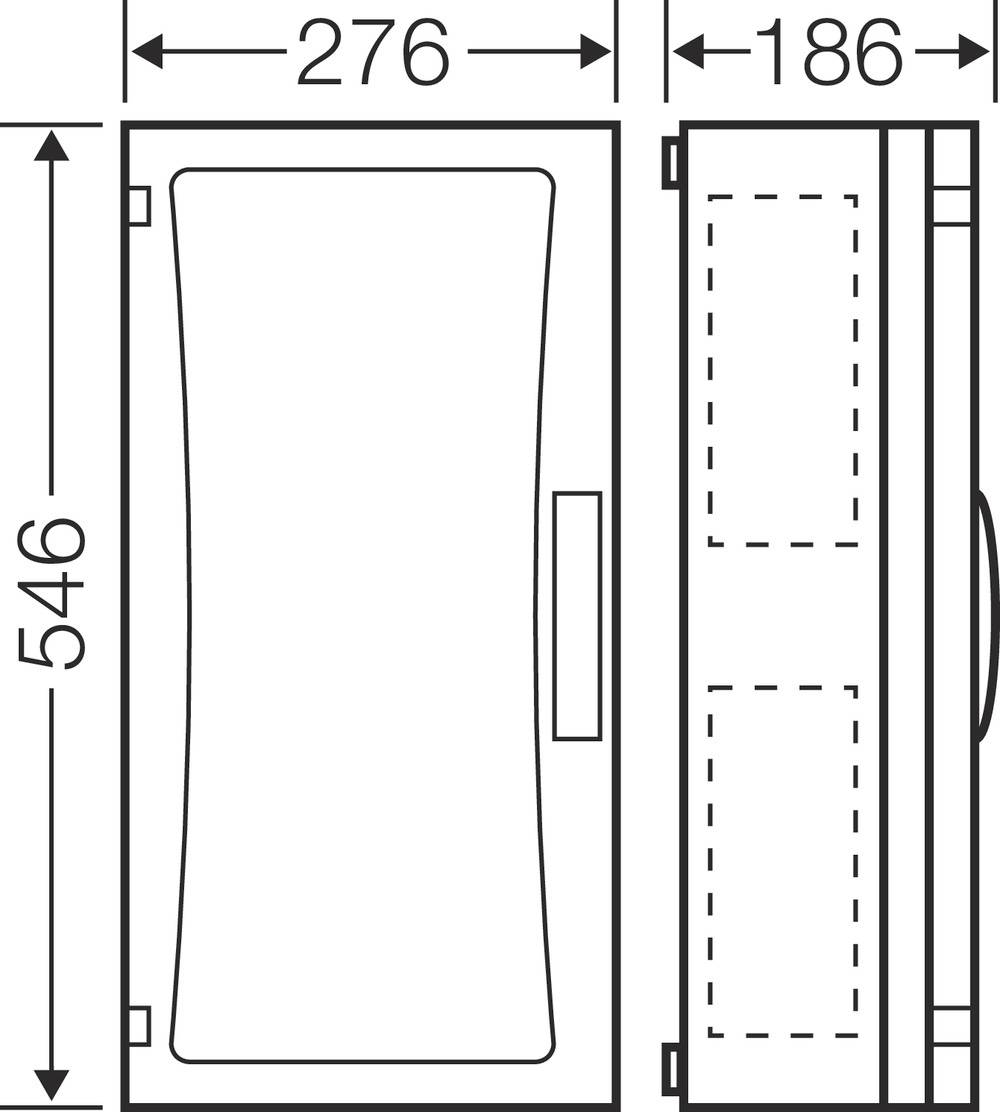

276 x 546 x 186 mm
- Content
1 pc(s)
- Type
FP 0351
- Dim
(W x H x D) 276 x 546 x 186 mm
- Manufacturer part #
68000307
- Depth
186 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292098 Hensel FP 0351 Casing 276 x 546 x 186 Plastic 1 pc(s)
Description
Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Empty housing with non-transparent door and sealable door lock with manual actuation and locking plate set. For the installation of devices on mounting plate or DIN mounting rail, installation dimensions W 216 x H 486 x D 140 mm. Max. Mounting depth with built-in mounting plate 136 mm, with built-in mounting rail 125 mm.
This text is machine translated.
This text is machine translated.
