Hensel FP 1100 Rail-mount adapter 180 x 270 x 163 Grey 1 pc(s)
Product type
Rail-mount adapter
Material
Plastic
Width
270 mm
Content
1 pc(s)
Features
sealable
EAN:
Part number:
Item no:
Highlights & Details
Hensel ENYSTAR terminal housing FP 1100
Our service for you
Technical specifications
- Stackable: Yes
- Rated insulation voltage UI: 400 V.
- Introduction from behind: no.
- Operating temperature: -5..40 °C.
- Max. Conductor cross-section 35 mm²
- Surface: Untreated
- IP66 protection rating
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Rail-mount adapter
- Features
sealable
- Material
Plastic
- Factory colour
Grey
- Type
Terminal housing
- Length
180 mm
- Width
270 mm
- Content
1 pc(s)
- Type
FP 1100

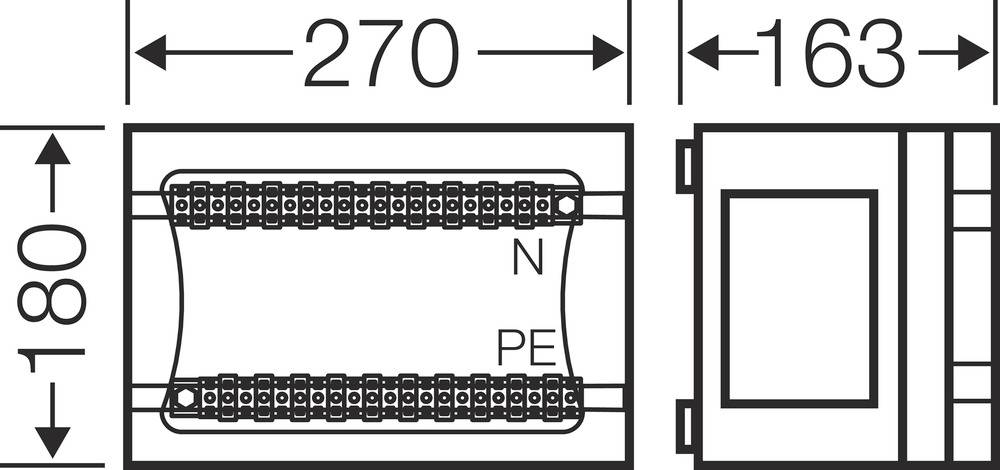

- Dim
(L x W) 180 mm x 270 mm
- RoHS-compliant
Yes
- Manufacturer part #
68000273
- Depth
163 mm
- Mounting type
Surface-mount
- Features
Halogen-free
Sealable
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296322 Hensel FP 1100 Rail-mount adapter 180 x 270 x 163 Grey 1 pc(s)
Description
Housing with door for the construction of installation distributors up to 250 A for use by laymen according to IEC 61439-3. Open housing walls for combination or as single housing with closure plates. Made of high-quality polycarbonate, protective insulation. Quick housing connection through connectors and integrated seals. Large wall penetrations for the electrical connection of the housings to each other. Cable entry via flanges. Wall mounting directly on the housing, via external brackets or with mounting rails. Terminal housing with non-transparent door. Each PE/N 10 x 1.5-10 mm² sol/ f, 11 x 2.5-16 mm² r/ f, 1 x 16 mm² sol or 1 x 16-35 mm² f, Cu. Door lock with tool actuation. Door sealable. Sealing device for door sealing ordered separately.
This text is machine translated.
This text is machine translated.
