Hensel KV 9337 6100103 Casing 295 x 583 x 197 Plastic 1 pc(s)
Product type
Casing
Material
Plastic
IP rating
IP65
Width
295 mm
Height
583 mm
EAN:
Part number:
Item no:
Technical specifications
- Installation depth: 162 mm
- Mounting type: Construction
- Product type
Casing
- Features
with DIN rail
- Material
Plastic
IP65
- Type
Housing
- Width
295 mm
- Height
583 mm
- Content
1 pc(s)
- Dim

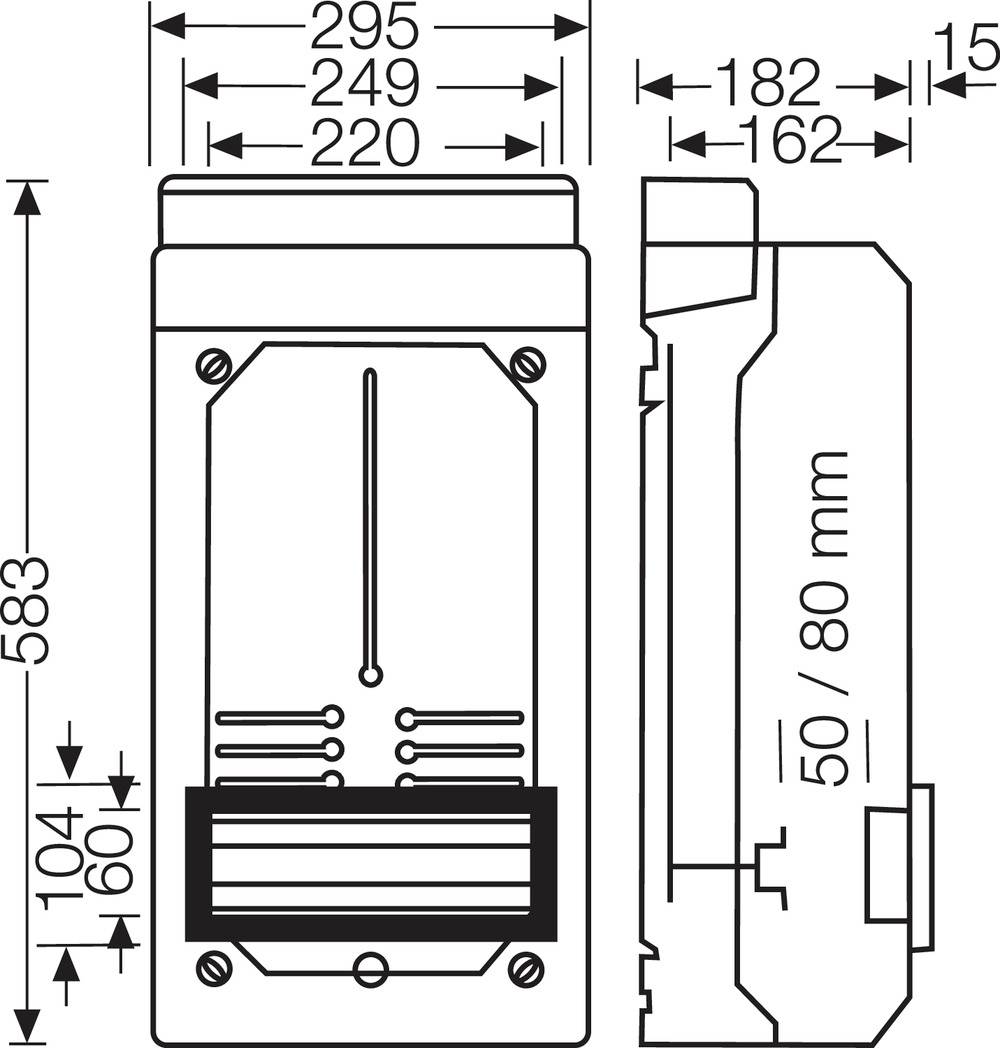

(W x H x D) 295 x 583 x 197 mm
- RoHS-compliant
Yes
- Weight
0
- Depth
197 mm
- Type
KV 9337
- Mounting type
Structure
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297294 Hensel KV 9337 6100103 Casing 295 x 583 x 197 Plastic 1 pc(s)
Description

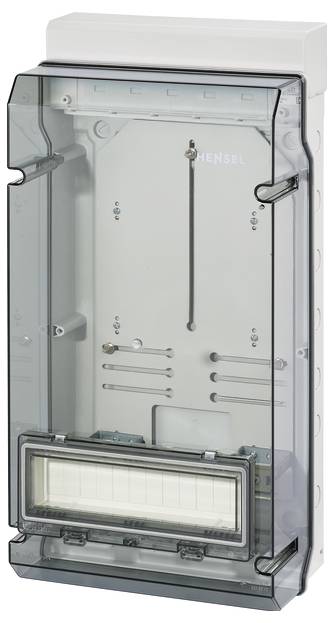

Small distributor counter housing made of high-quality thermoplastic. For surface-mounting applications in buildings or protected installation outdoors. Use in the unmeasured area after consultation with the local network operator. With counter mounting plate and counter fixing screws for counters with three-point fixing and hinged cover with touch protection for 12 division units. Cable entry via integrated elastic sealing membranes. With transparent cover and cable entry cover. Closures for tool actuation, sealable. Protection type IP 65.
