Hensel KV 9339 6100101 Casing 295 x 583 x 182 Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Casing
Material
Plastic
IP rating
IP65
Width
295 mm
Height
583 mm
Technical specifications
- Installation depth: 162 mm
- Mounting type: Construction
- Product type
Casing
- Features
with DIN rail
- Material
Plastic
IP65
- Factory colour
Multicolour
- Type
Housing
- Width
295 mm
- Height
583 mm
- Content
1 pc(s)
- Dim

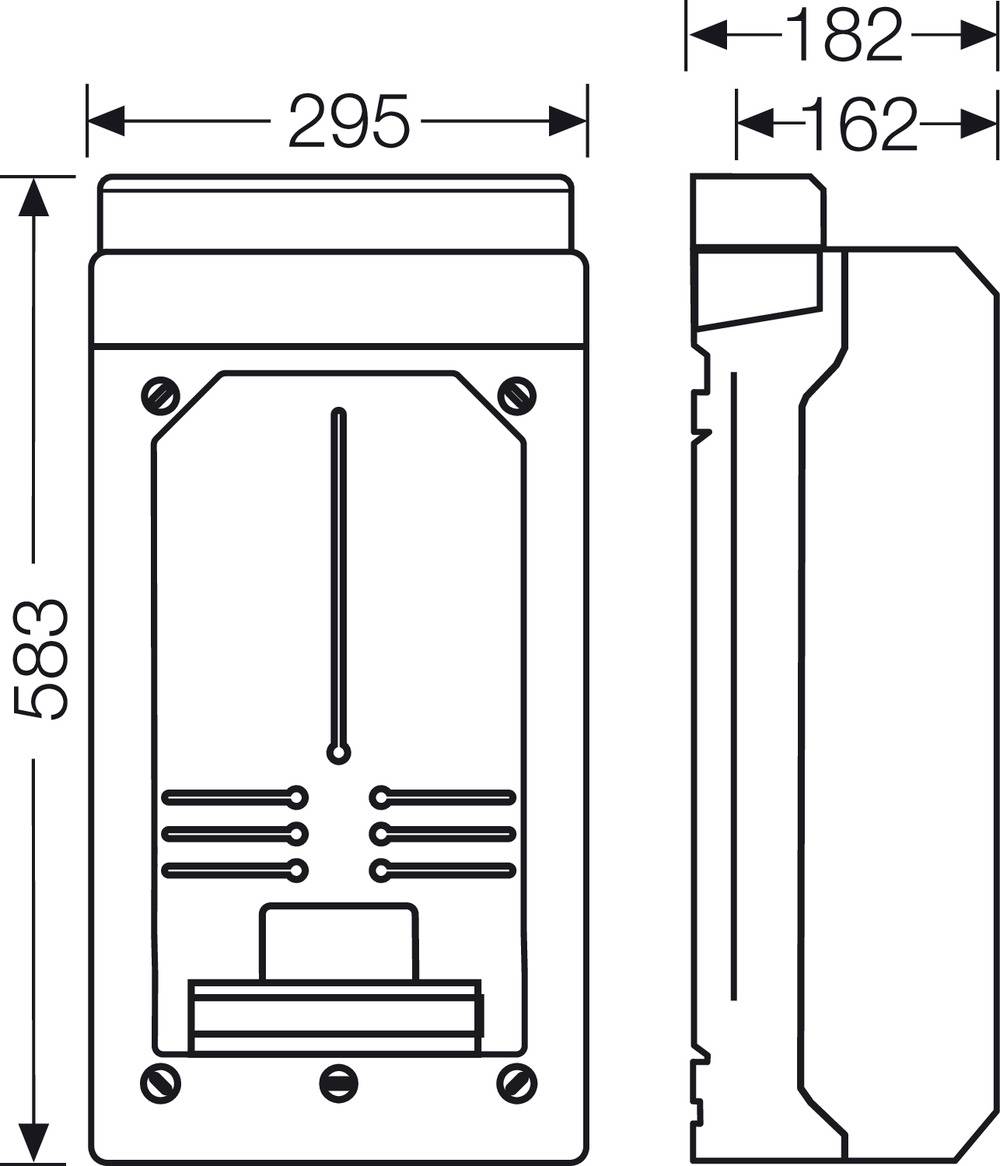

(W x H x D) 295 x 583 x 182 mm
- RoHS-compliant
Yes
- Weight
3.21
- Depth
182 mm
- Type
KV 9339
- Mounting type
Structure
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296303 Hensel KV 9339 6100101 Casing 295 x 583 x 182 Plastic 1 pc(s)
Description

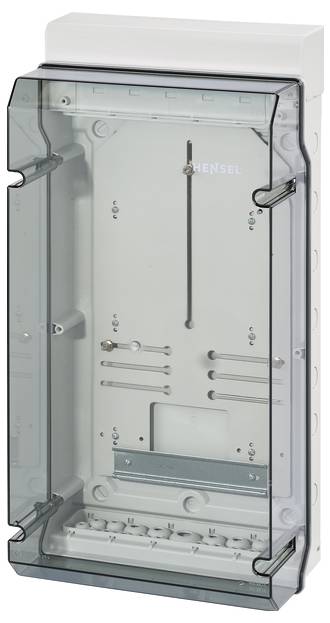

Small distributor counter housing made of high-quality thermoplastic. For surface-mounting applications in buildings or protected installation outdoors. Use in the unmeasured area after consultation with the local network operator. With meter mounting plate and meter mounting screws for counters with three-point mounting. Cable entry via integrated elastic sealing membranes. With transparent cover and cable entry cover. Closures for tool actuation, sealable. Protection type IP 65.
This text is machine translated.
This text is machine translated.
