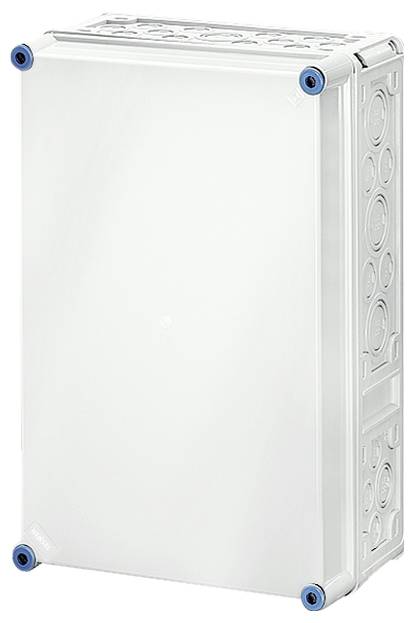

Hensel Mi 0301 2000010 Casing 300 x 450 x 170 Plastic 1 pc(s)
Product type
Casing
Material
Plastic
IP rating
IP65
Width
300 mm
Height
450 mm
EAN:
Part number:
Item no:
Technical specifications
- Attachment option: Yes
- Number of cable entries: 44
- Number of modules: 1
- Number of holes for flange plates: 6
- Number of rows: 1
- Type of cover: Cover
- Lid type: Closed
- Installation depth: 146 mm
- Suitable for outdoor use: Yes
- Suitable for lightning protection: no.
- Material thickness housing: 3 mm
- Material thickness door/lid: 3 mm
- Mounting type: Surface-mounted
- Protection class: II
- Product type
Casing
- Material
Plastic
IP65
- Factory colour
Multicolour
- Type
Housing
- Width
300 mm
- Height
450 mm
- Internal depth
146 mm
- Content
1 pc(s)

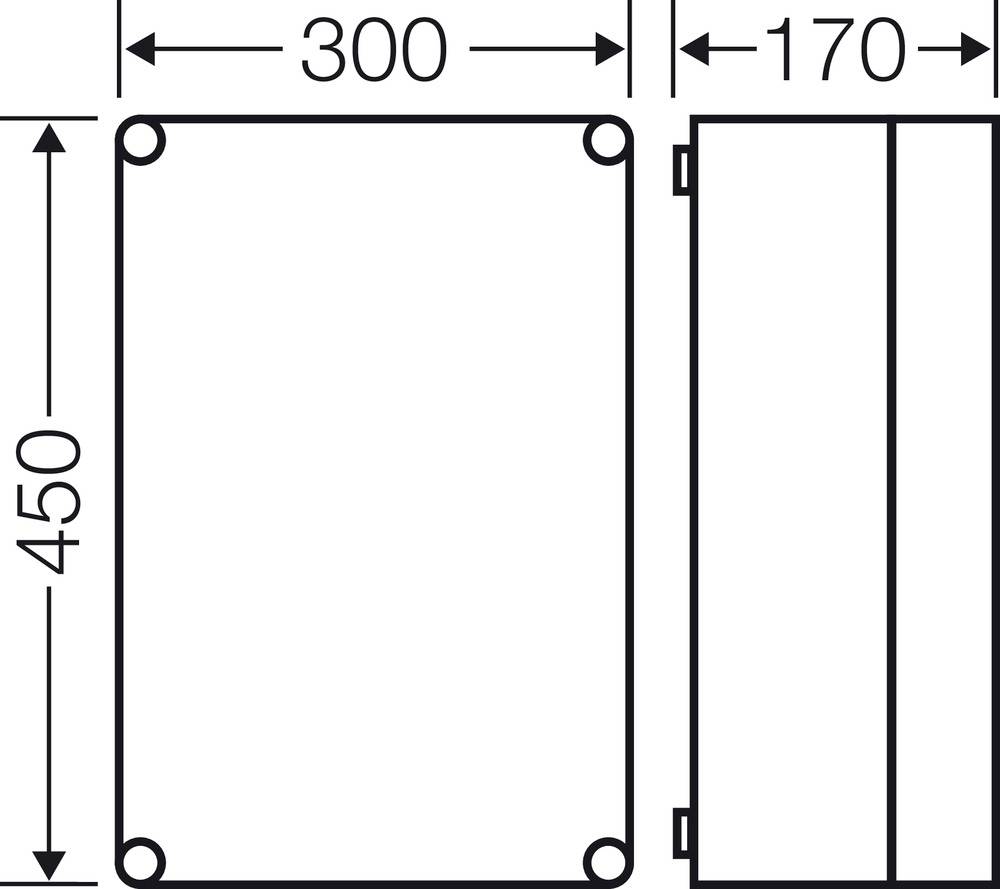

- Dim
(W x H x D) 300 x 450 x 170 mm
- RoHS-compliant
Yes
- Weight
2.64
- Depth
170 mm
- Type
Mi 0301
Surface mounted (plaster)
II
300
450 mm
170 mm
7035
FALSE
Untreated
146 mm
1
Cover
44
Plastic
IK08
IP65
FALSE
Closed
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297288 Hensel Mi 0301 2000010 Casing 300 x 450 x 170 Plastic 1 pc(s)
Description
Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Empty housing with non-transparent cover. Mounting dimensions W 275 x H 425 x D 150 mm for the installation of devices on mounting plate or DIN mounting rail. Max. Installation depth with built-in mounting plate 146 mm, with built-in mounting rail 135 mm. Lid locks with tool actuation.
