Hensel Mi 0410 2000290 Casing 300 x 600 x 214 Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Casing
Material
Plastic
IP rating
IP65
Width
300 mm
Height
600 mm
Technical specifications
- Attachment option: Yes
- Number of cable entries: 50
- Number of modules: 1
- Number of holes for flange plates: 6
- Number of rows: 1
- Type of cover: Cover
- Lid type: Closed
- Installation depth: 191 mm
- Suitable for outdoor use: Yes
- Suitable for lightning protection: no.
- Material thickness housing: 3 mm
- Material thickness door/lid: 3 mm
- Mounting type: Surface-mounted
- Protection class: II
- Product type
Casing
- Features
Cover (clear)
- Material
Plastic
IP65
- Factory colour
Multicolour
- Type
Housing
- Width
300 mm
- Height
600 mm
- Internal depth
191 mm
- Content
1 pc(s)
- Dim

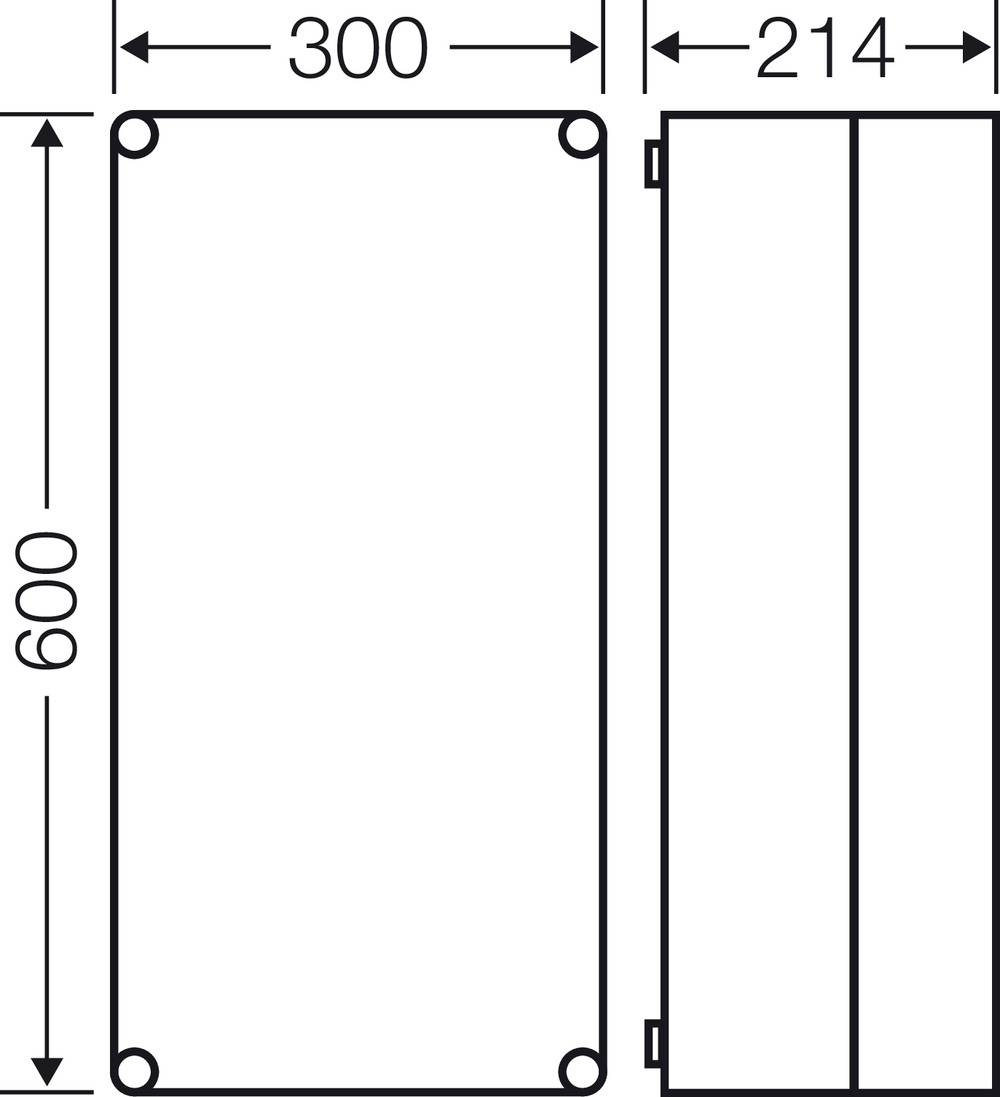

(W x H x D) 300 x 600 x 214 mm
- RoHS-compliant
Yes
- Weight
3.80
- Depth
214 mm
- Type
Mi 0410
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297287 Hensel Mi 0410 2000290 Casing 300 x 600 x 214 Plastic 1 pc(s)
Description

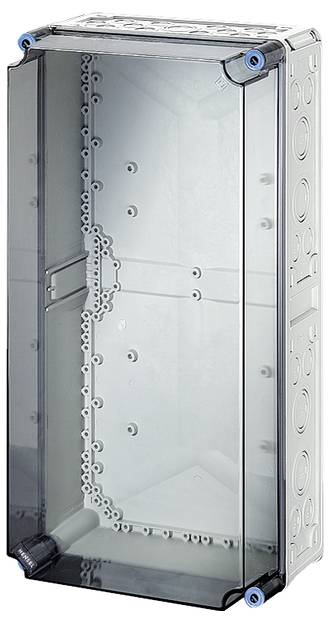

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Empty housing with transparent cover. Installation dimensions W 275 x H 575 x D 195 mm for the installation of devices on mounting plate or DIN mounting rail. Max. Installation depth with built-in mounting plate 191 mm, with built-in mounting rail 180 mm. Lid locks with tool actuation.
