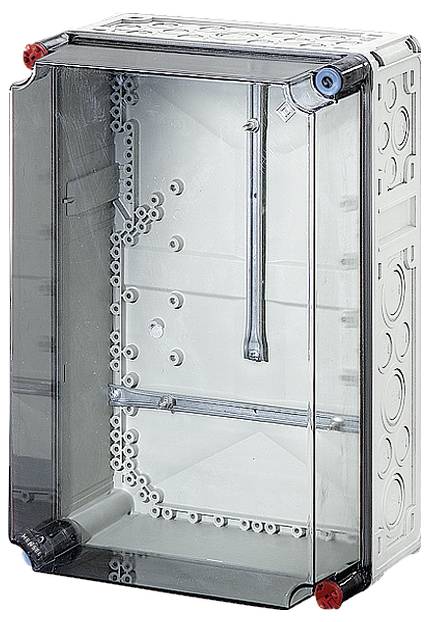

Hensel Mi 2310 2000078 Casing 300 x 450 x 214 Plastic 1 pc(s)
Product type
Casing
Material
Plastic
IP rating
IP65
Width
300 mm
Height
450 mm
EAN:
Part number:
Item no:
Highlights & Details
Hensel counter housing 300x450x214mm T=190 Mi 2310
Our service for you
Technical specifications
- Installation depth: 190 mm
- Mounting type: Construction
- Product type
Casing
- Material
Plastic
IP65
- Type
Counter casing
- Width
300 mm
- Height
450 mm
- Content
1 pc(s)
- Dim

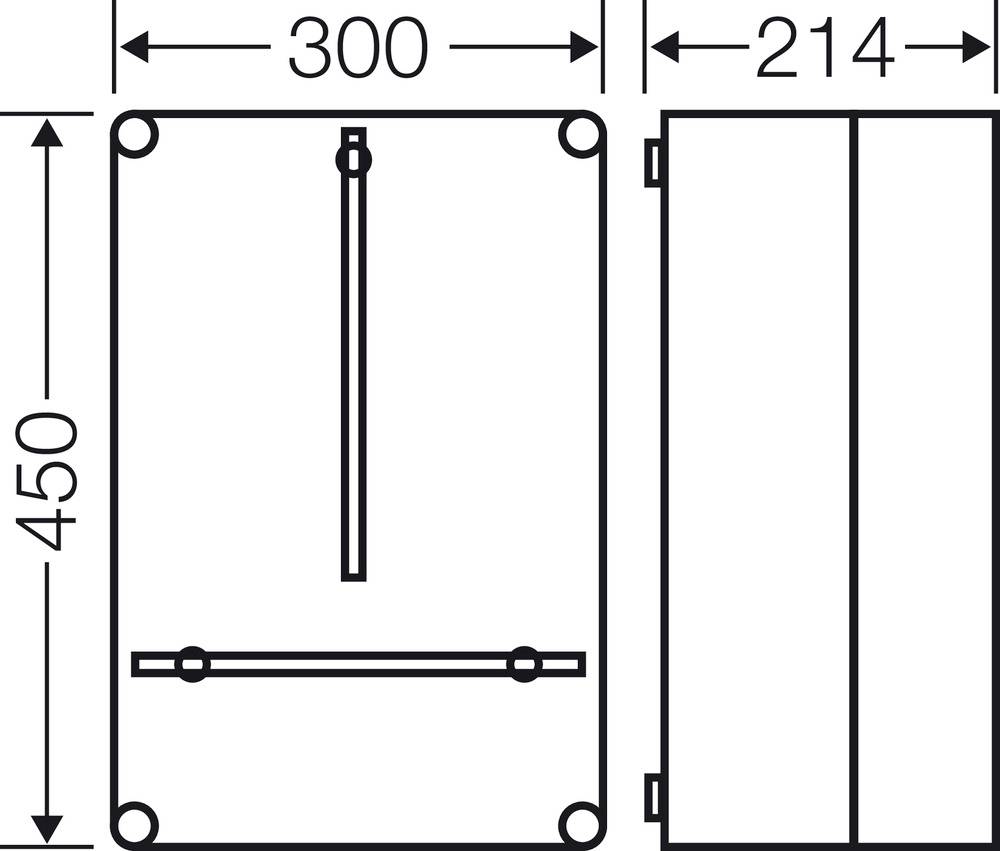

(W x H x D) 300 x 450 x 214 mm
- RoHS-compliant
Yes
- Depth
214 mm
- Type
Mi 2310
- Mounting type
Structure
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296788 Hensel Mi 2310 2000078 Casing 300 x 450 x 214 Plastic 1 pc(s)
Description
Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Meter housing for counters with three-point mounting, including meter mounting. Max. Installation depth 190 mm. Lid closures for tool actuation, double sealable. Use in unmeasured areas after consultation with local network operator.
