1/2
Hensel Mi 2312 20001172 Casing 300 x 450 x 170 Plastic 1 pc(s)
Product type
Casing
Material
Plastic
IP rating
IP65
Width
300 mm
Height
450 mm
EAN:
Part number:
Item no:
Technical specifications
- Installation depth: 108 mm
- Mounting type: Construction
- Product type
Casing
- Material
Plastic
IP65
- Type
Counter casing
- Width
300 mm
- Height
450 mm
- Content
1 pc(s)
- Dim

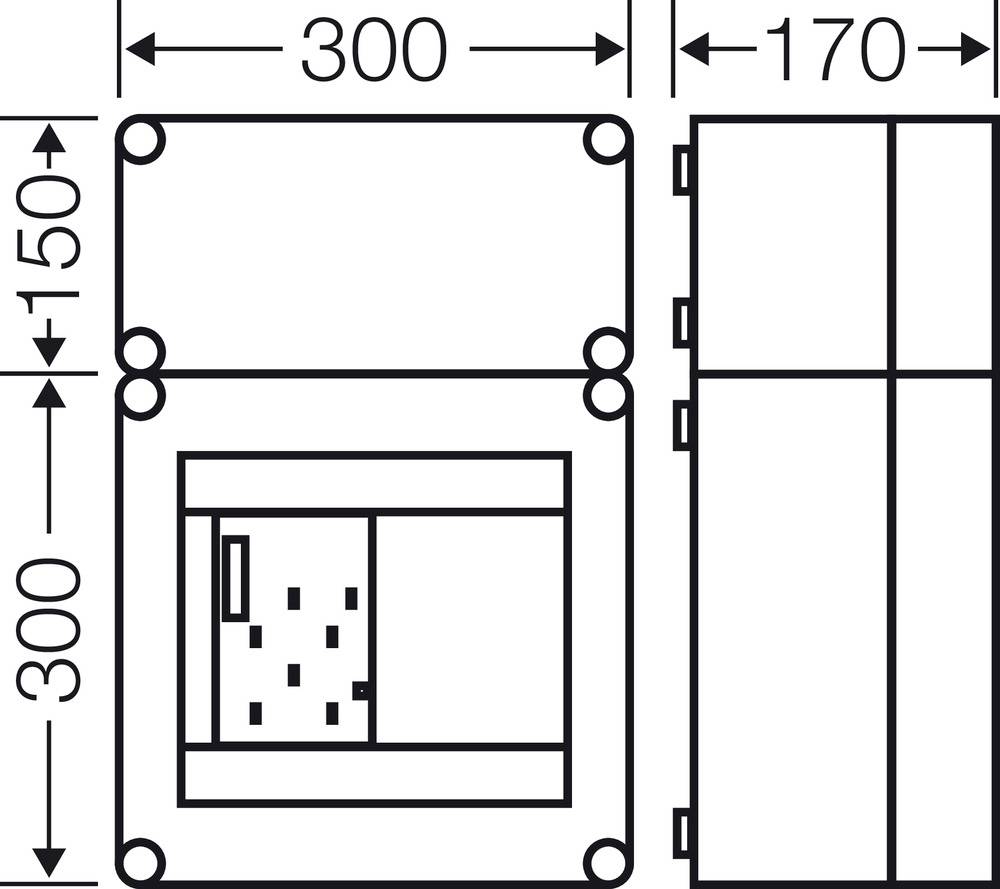

(W x H x D) 300 x 450 x 170 mm
- RoHS-compliant
Yes
- Depth
170 mm
- Type
Mi 2312
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296816 Hensel Mi 2312 20001172 Casing 300 x 450 x 170 Plastic 1 pc(s)
Description

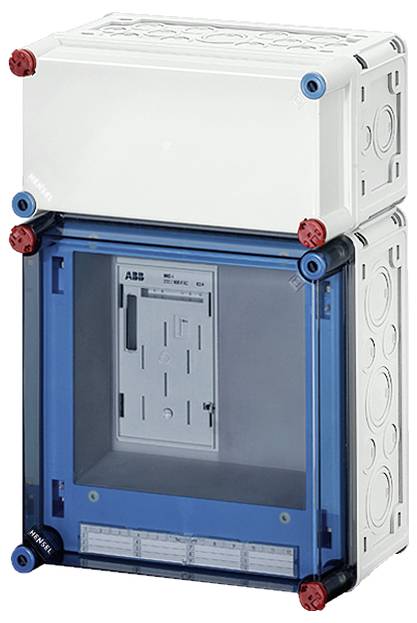

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Counter housing for 1 electronic household counter (EHZ) with pre-assembled connection cables and EHZ room. Max. Installation depth 108 mm. Lid closures for tool actuation, double sealable. Use in unmeasured areas after consultation with local network operator.
