Hensel Mi 2400 2000080 Casing 300 x 600 x 170 Plastic 1 pc(s)
EAN:
Part number:
Item no:
Product type
Casing
Material
Plastic
IP rating
IP65
Width
300 mm
Height
600 mm
Technical specifications
- Installation depth: 146 mm
- Mounting type: Construction
- Product type
Casing
- Features
with DIN rail
- Material
Plastic
IP65
- Type
Counter casing
- Width
300 mm
- Height
600 mm
- Content
1 pc(s)
- Dim

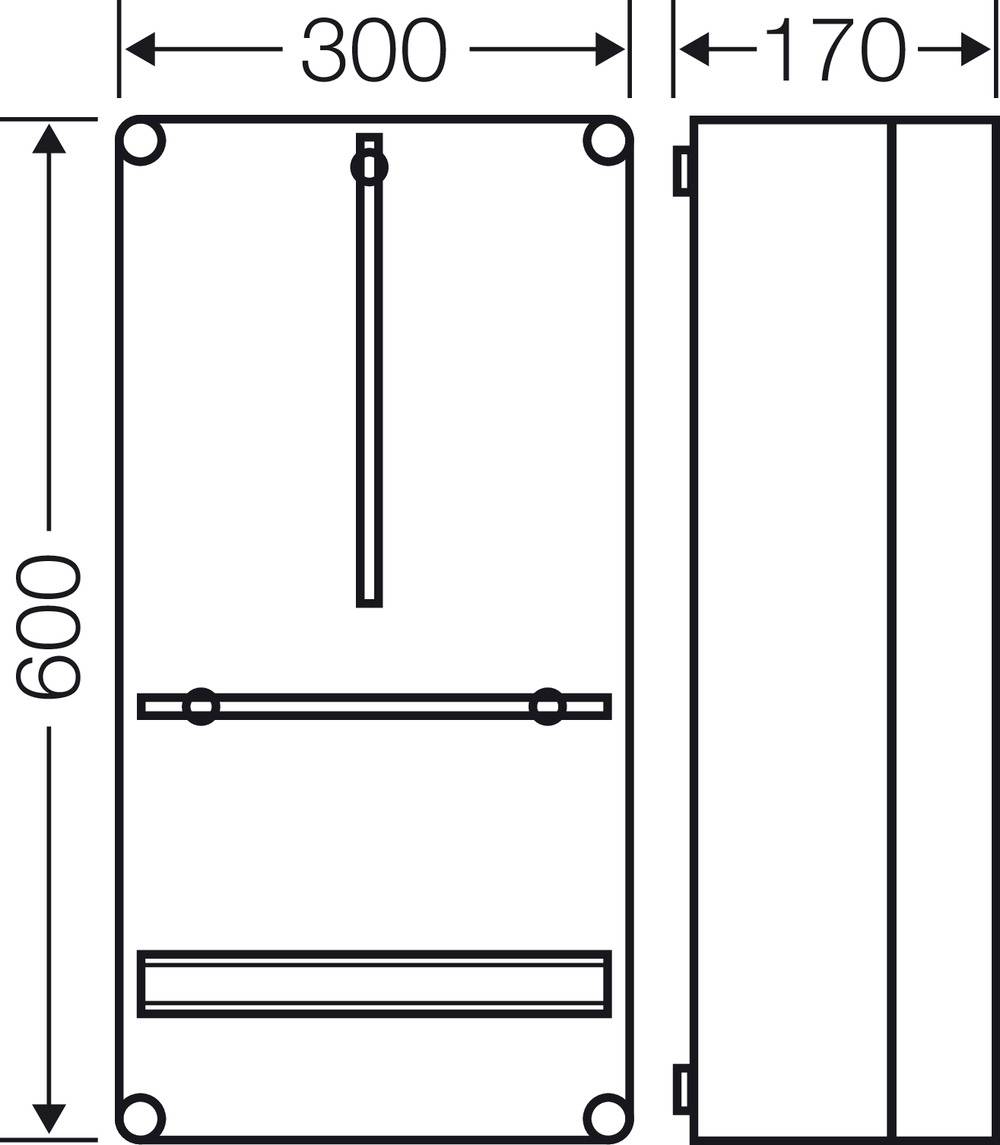

(W x H x D) 300 x 600 x 170 mm
- RoHS-compliant
Yes
- Weight
0
- Depth
170 mm
- Type
Mi 2400
- Mounting type
Structure
Surface mounting
300
600 mm
170 mm
FALSE
146 mm
Plastic
IP65
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297782 Hensel Mi 2400 2000080 Casing 300 x 600 x 170 Plastic 1 pc(s)
Description

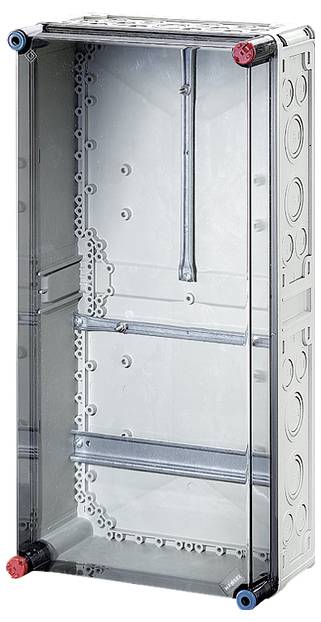

Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Counter housing for counters with three-point mounting, including meter mounting and mounting rail. Max. Installation depth 146 mm. Lid closures for tool actuation, double sealable. Use in unmeasured areas after consultation with local network operator.
