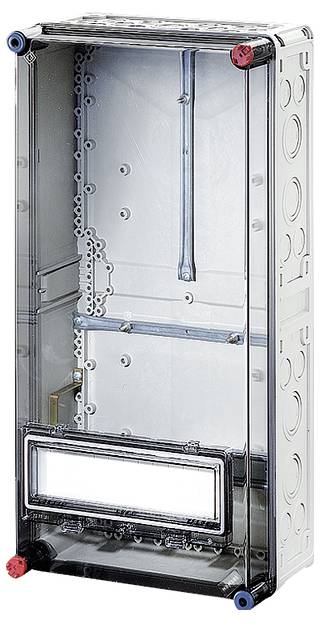

Hensel Mi 2420 Casing 300 x 600 x 185 Plastic 1 pc(s)
Packaging type
Piece
Product type
Casing
Material
Plastic
IP rating
IP65
Width
300 mm
EAN:
Part number:
Item no:
Technical specifications
- Installation depth: 146 mm
- With hinged lid: Yes
- Mounting type: Construction
- Packaging type
Piece
- Product type
Casing
- Features
with DIN rail
- Material
Plastic
IP65
- Type
Counter casing
- Width
300 mm
- Height
600 mm
- Dimensions

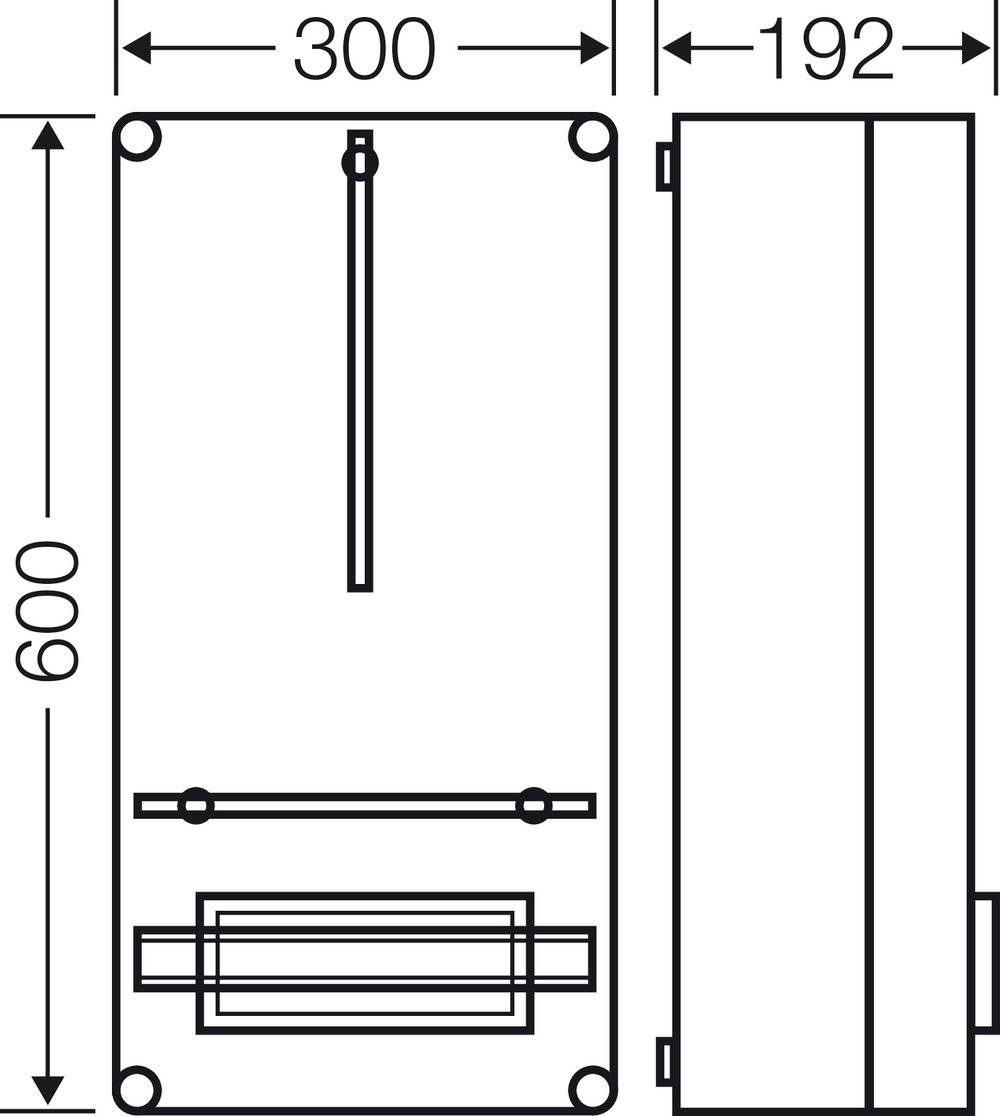

300 x 600 x 185 mm
- Content
1 pc(s)
- Type
Mi 2420
- Dim
(W x H x D) 300 x 600 x 185 mm
- Manufacturer part #
2000084
- Depth
185 mm
- Mounting type
Structure
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293051 Hensel Mi 2420 Casing 300 x 600 x 185 Plastic 1 pc(s)
Description
Housing for the construction of power switching device combinations up to 630 A or as single housing. Made of high-quality polycarbonate insulated. Wall penetrations with large openings for the electrical connection of the housings to each other. Cable entry at all housing walls via metric knockouts or mounting flange. Housing for wall mounting also via external brackets or with mounting rails. Counter housing for counters with three-point mounting, including counter mounting and hinged cover with touch protection for 12 division units and associated mounting rail. Max. Installation depth 146 mm. Lid closures for tool actuation, double sealable. Use in unmeasured areas after consultation with local network operator.
