Hensel RK 0207 T Rail-mount adapter 93 x 93 x 62 Grey 1 pc(s)
Packaging type
Single
Product type
Rail-mount adapter
Material
Thermoplastic
Width
93 mm
Height
62 mm
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 7
- Rated insulation voltage UI: 500 V.
- Assembly: Terminal
- Lid mounting: Screwed
- Introduction from behind: Yes
- Operating temperature: -25..40 °C.
- Shape: Square
- Max. Conductor cross-section 2 mm²
- Surface: Untreated
- IP66 protection rating
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Packaging type
Single
- Product type
Rail-mount adapter
- Features
square
- Material
Thermoplastic
- Factory colour
Grey
- Type
Terminal box
- Length
93 mm
- Width
93 mm
- Height
62 mm
- Dimensions

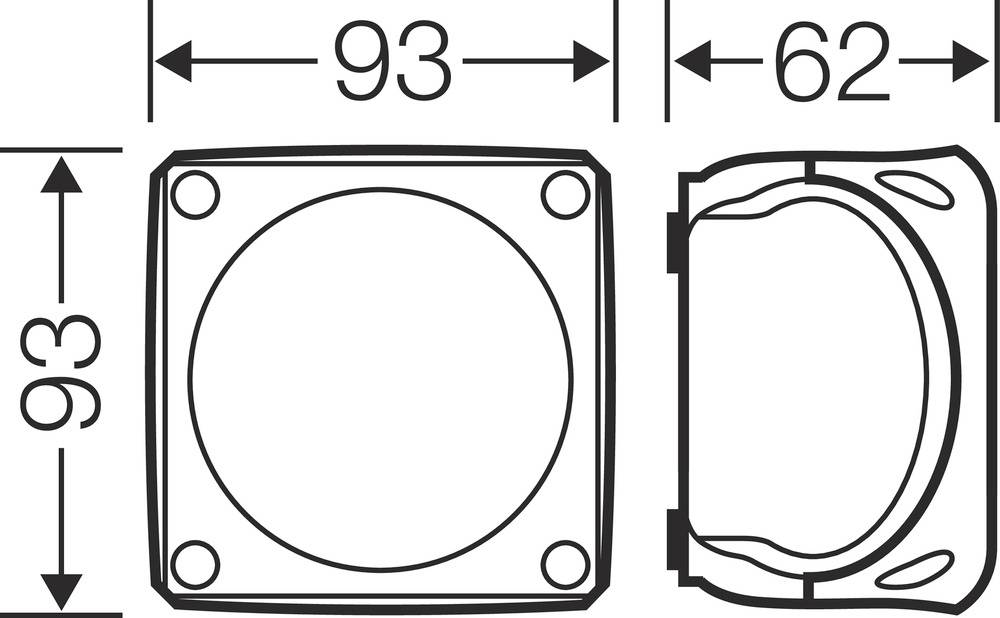

93 x 93 x 62 mm
- Content
1 pc(s)
- Type
RK 0207 T
- Dim
(L x W x H) 93 x 93 x 62 mm
- RoHS-compliant
Yes
- Manufacturer part #
62000173
- Depth
62 mm
- Mounting type
Surface-mount
- Features
Halogen-free
Sealable
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295094 Hensel RK 0207 T Rail-mount adapter 93 x 93 x 62 Grey 1 pc(s)
Description

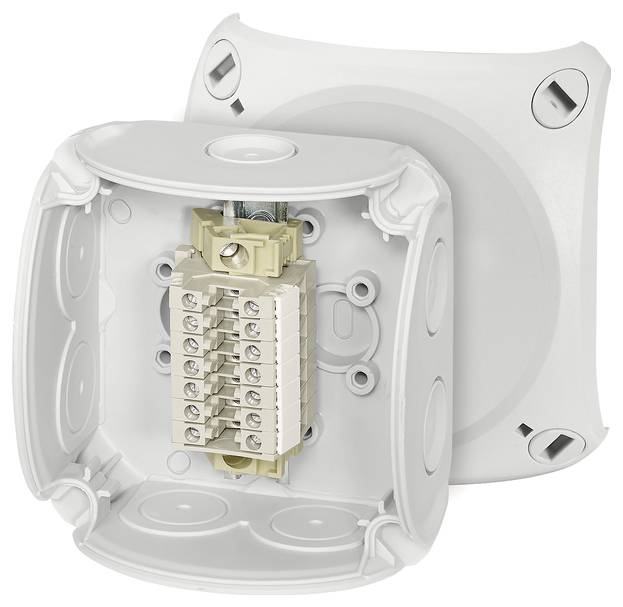

Cable junction box made of high-quality thermoplastic with terminal blocks for aluminum and copper conductors. For surface-mounting applications in buildings or protected installation outdoors. With external straps for fixing and lid fixing via quick-release fasteners. With cover strap. With 7 terminal blocks up to 2.5 mm². Cable entry via elastic sealing membranes in housing walls and floor. Subsequent use of cable supports by removing the sealing membrane.
This text is machine translated.
This text is machine translated.
