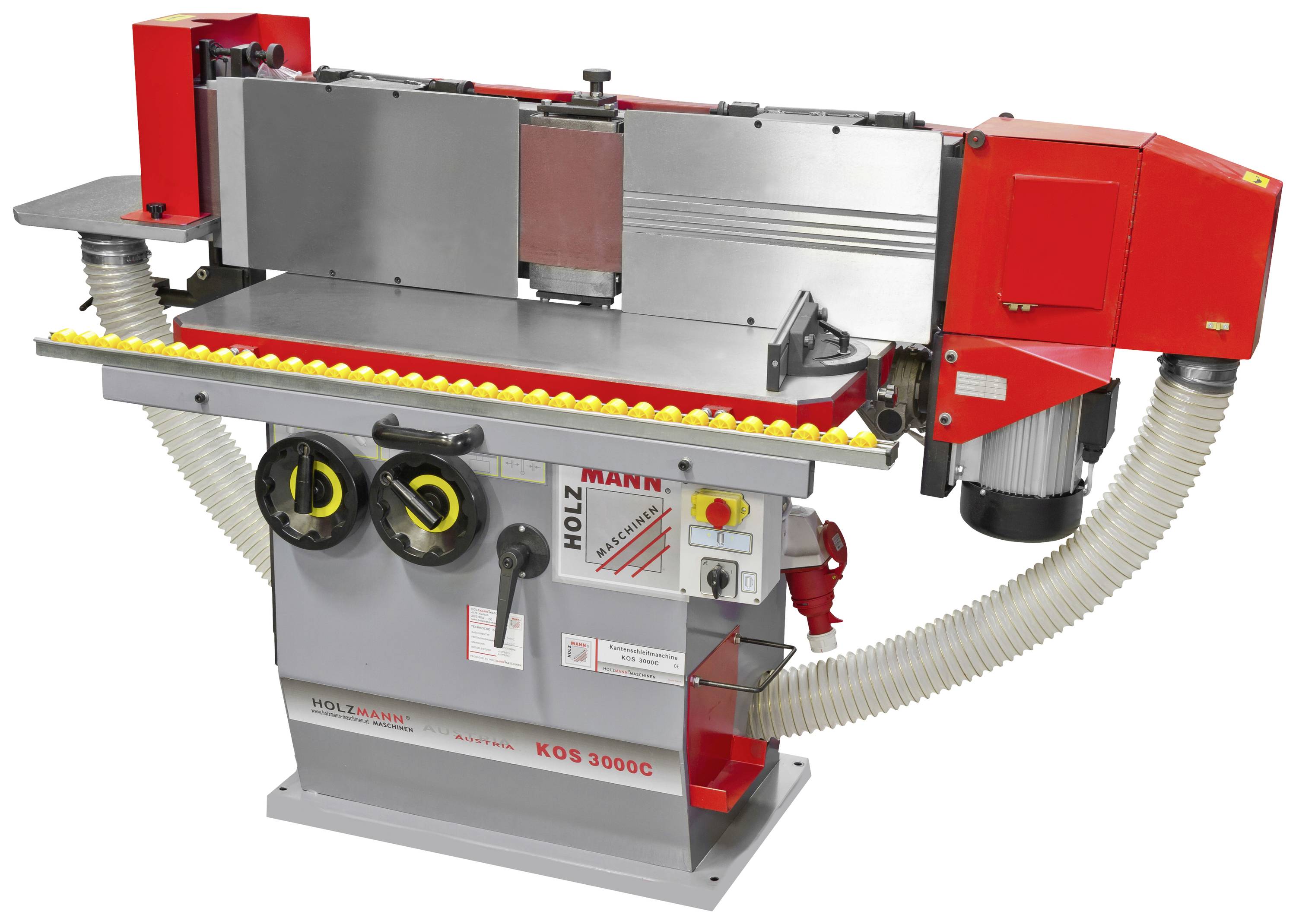

Holzmann Maschinen KOS3000C_400V KOS3000C_400V Edge sander 3000 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Engine power S1 3000 W
- Motor power S6 4200 W
- Table size 960x350 mm
- Product type
Edge sander
3000 W
- Belt length
3000 mm
- Belt width
200 mm
- Operating voltage
400 V
- Dim
(L x W) 960 mm x 350 mm
- Length
960 mm
- Width
350 mm
- Weight
284 kg
Documents & Downloads
Datasheet
Datasheet 3219045 Holzmann Maschinen KOS3000C_400V KOS3000C_400V Edge sander 3000 W
User & Safety Instructions
User & Safety Instructions 3219045 Holzmann Maschinen KOS3000C_400V KOS3000C_400V Edge sander 3000 W
Description
Features
- Separate oscillation motor, hinged veneer felt polisher
- Heavy, very high-quality overall design
- Separate oscillation drive with gearbox motor
- Run-in ruler with grooves for groove protrusions
- Height-adjustable using hand wheel
- Simple column-guided cast table
- Flier-grinding device with fine adjustment, contact shoe, relief rollers, stops
- Extendable table extension with multi-roll system as standard
- Double extraction mechanism for main grinding unit and round grinding table
- Sanding unit can be swiveled continuously from vertical to 45° using the hand wheel
- Precision bearing of the abrasive wheels provides for absolute smooth running
- High quality miter stop with non-angled scale
- Spring band tension as standard
- Graphite-coated bearing surface minimizes friction
- Suction connection 120mm
- Parallel guides of the work table for adjusting the work surface to the unit
- This text is machine translated.
Scope of delivery
- Sandpaper belt
- Milling/grinding device
- Mitre stop
- Round grinding table
- Extendable table extension
