Name: Homematic IP Wireless Analyzer EQ3-RFA
Brand: eQ-3
SKU: 2163550
Availability: InStock

A black radio analysis device with buttons for Plus, Minus, Mode and Power. LED indicators for 'DAT', 'PRE', 'HmlP', 'HM', 'MAX!', 'RX', 'TX'. Frequency: 868 MHz.

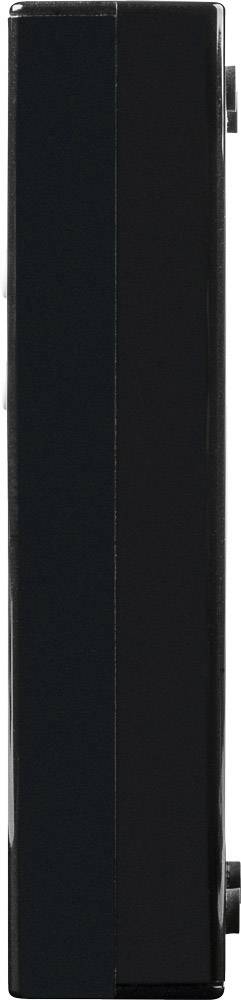

A black, rectangular box, in vertical view, with smooth edges.

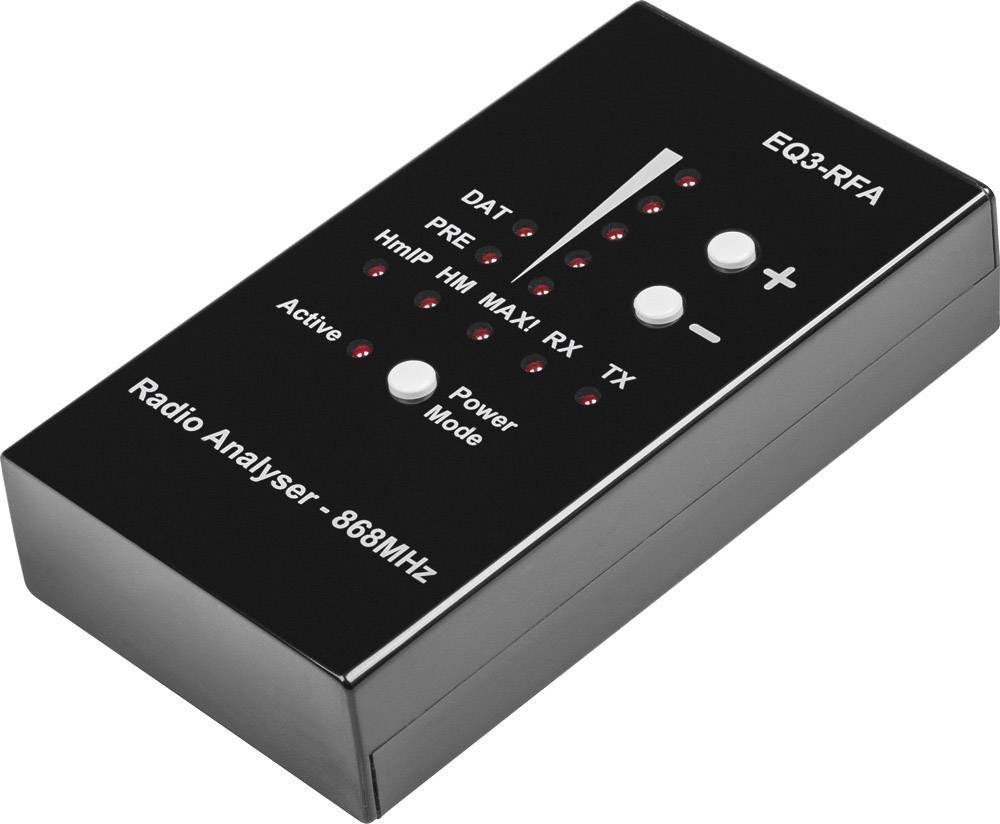

'Radio Analyser: 868MHz' device with LEDs and buttons for signal testing. Displays modes and activity of a radio signal for analysis.

'Radio Analyser - 868MHz' device with indicator lights for different modes, two main buttons and a vertical display bar.

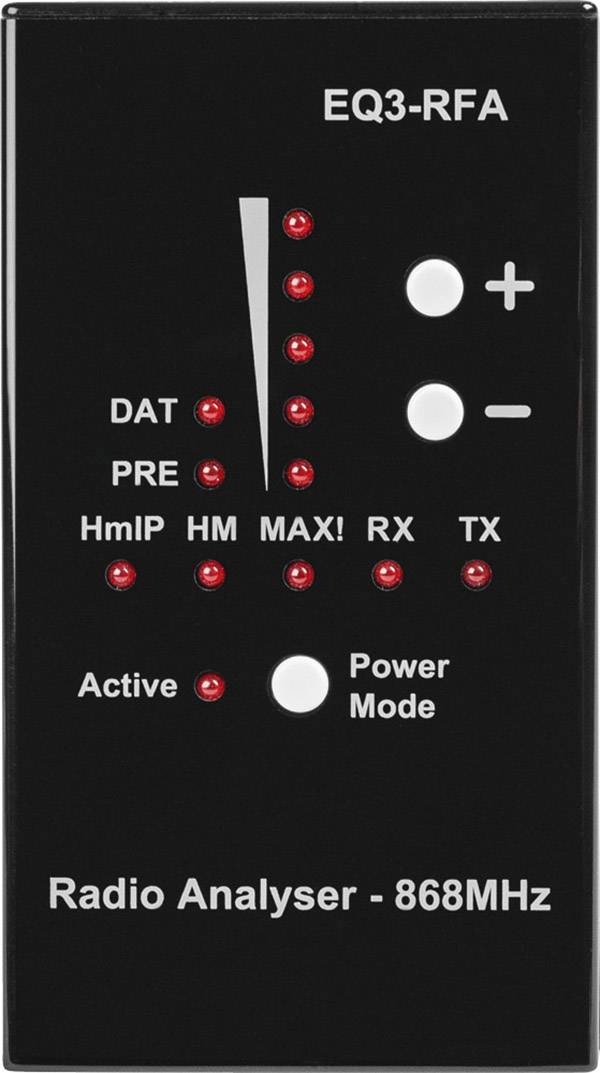

A black radio analyser with 868 MHz, Model EQ3-RFA. Indicators for Data (DAT), Reception Mode (HM), Maximum Power (MAX!), Reception (RX), Transmission (TX).

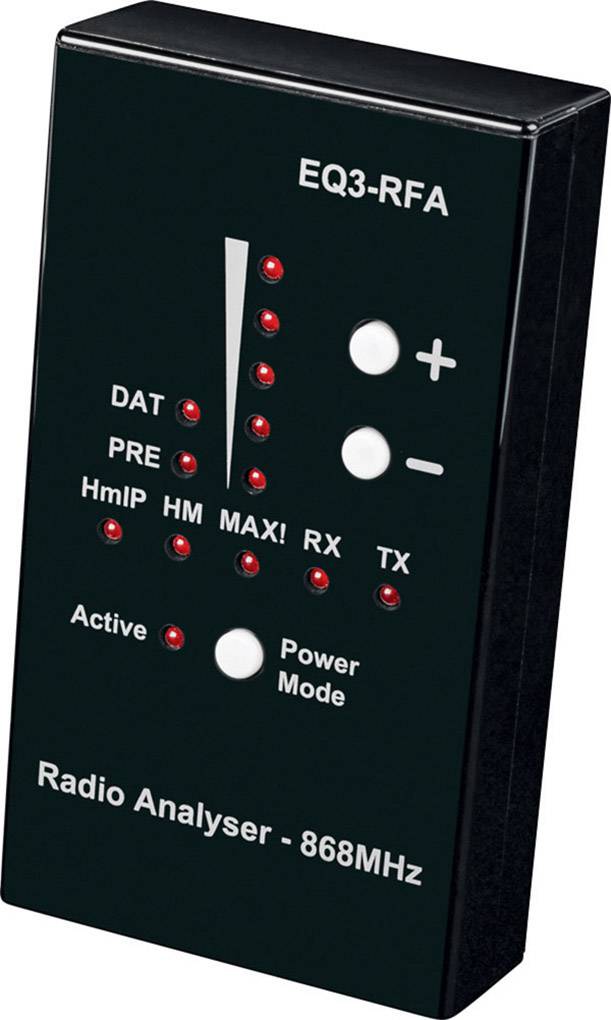

Black device with the inscription 'EQ3-RFA' and 'Radio Analyser - 868MHz', showing multiple illuminated indicators, buttons for plus and minus.

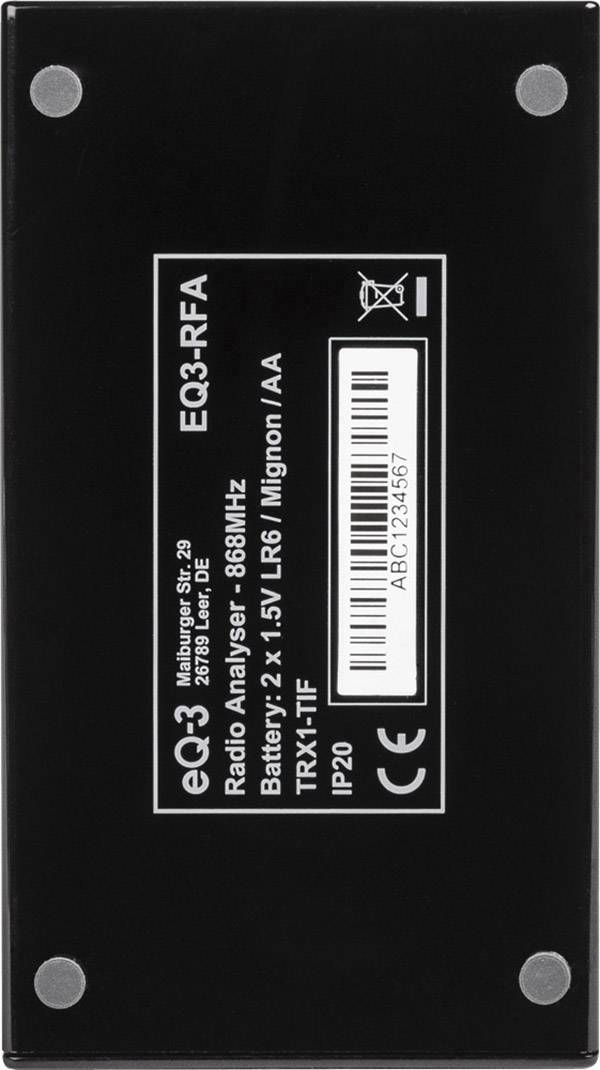

Black electronic device with model 'EQ3-RFA'. Inscription reads 'Radio Analyser - 868MHz', battery type: '2x 1.5V LR6 Mignon/AA'.

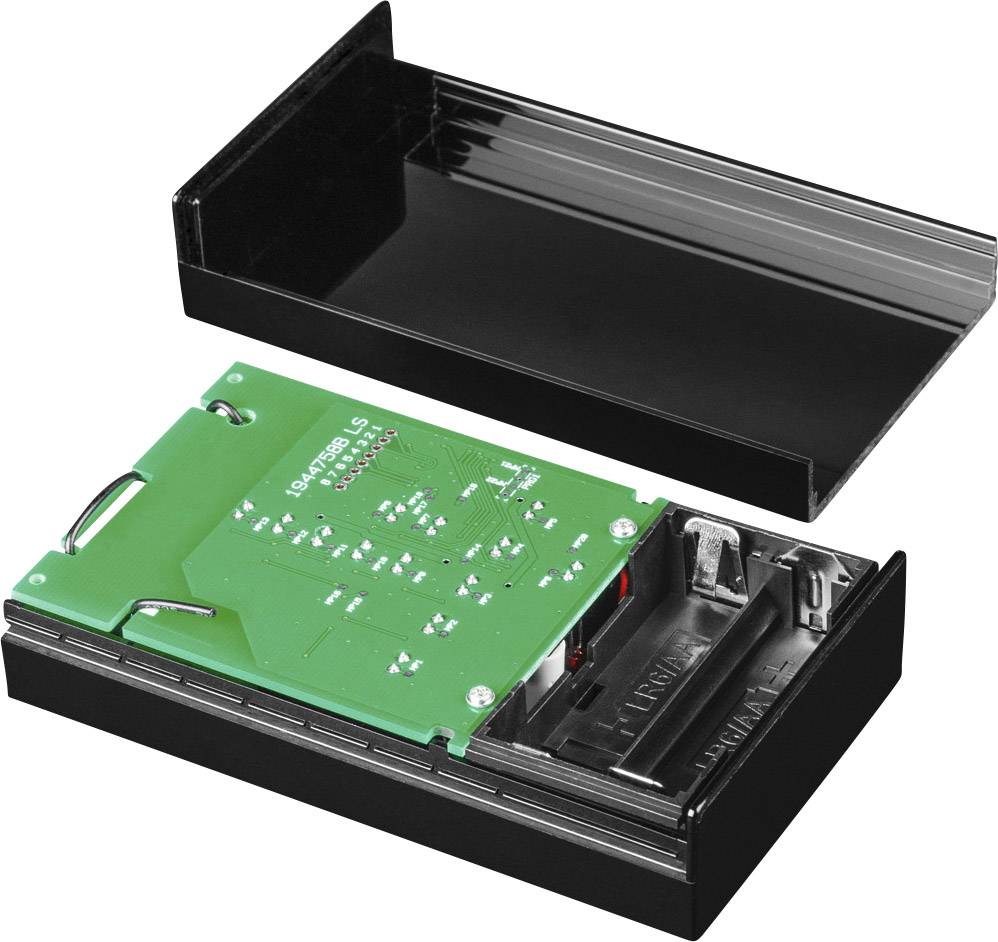

Electronic device with a green circuit board and black plastic casing, opened. Suitable for data processing or power supply.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

27 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 97.99 / piece)

€ 97.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Radio analyzer – 868 MHz

Display, analysis and control of radio message frames of the systems
HomeMatic IP, Homematic and MAX! On the radio frequency 868.3 MHz
Designed for environments with EQ-3 wireless systems

Technical specifications

Power consumption: 27 mA (max.)
Ambience temperature -10 to +55 °C
Radio frequency band 868.0-868.6 MHz

Product type: Analyzer

Series: Homematic IP

Transfer Standard (Smart Home): Manufacturer-specific

Used at: Indoors

: IP20

Power supply (LOV): battery-powered

Data transfer (Smart Home): Wireless

Frequency: 868.3 MHz

: 420 m

Width: 62 mm

Height: 112 mm

Depth: 26 mm

Weight: 140 g

Dim: (W x H x D) 62 x 112 x 26 mm

Hub: Required

Data exchange: Bidirectional (bi)

: n.rel.

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2163550 Homematic IP Wireless Analyzer EQ3-RFA

User & Safety Instructions

User & Safety Instructions 2163550 Homematic IP Wireless Analyzer EQ3-RFA

Description

For the display, analysis and control of radio message frames of the systems Homematic IP, Homematic and MAX! On the radio frequency 868.3 MHz.
The wireless analyzer detects the radio telegram of the used smart home system and thus simplifies an analysis of the radio environment. Designed for environments with EQ-3 wireless systems.
By displaying the transmission and reception power of the devices used, the positioning of individual components in the Smart Home can be adjusted in order to achieve interference-free radio communication as possible.

This text is machine translated.

Features

Flexible use thanks to battery operation and compact housing
Display of the reception strength of a radio message via LED level display
Adapting the reception sensitivity possible for near-field analysis
Operating mode RX: System-independant general reception mode with display of the reception strength (RSSI) via level LEDs for locating as well as analyzing transmitters and possible interference factors
Operating mode TX: Cyclic sending of a radio message frame. Used in conjunction with a second radio analyzer for rough determination of the connection quality and availability of radio components.

Scope of delivery

Radio analyzer - 868 MHz
2 x 1.5 V LR6/Mignon/AA batteries
User manual.

Description

Features

Flexible use thanks to battery operation and compact housing
Display of the reception strength of a radio message via LED level display
Adapting the reception sensitivity possible for near-field analysis
Operating mode RX: System-independant general reception mode with display of the reception strength (RSSI) via level LEDs for locating as well as analyzing transmitters and possible interference factors
Operating mode TX: Cyclic sending of a radio message frame. Used in conjunction with a second radio analyzer for rough determination of the connection quality and availability of radio components.
