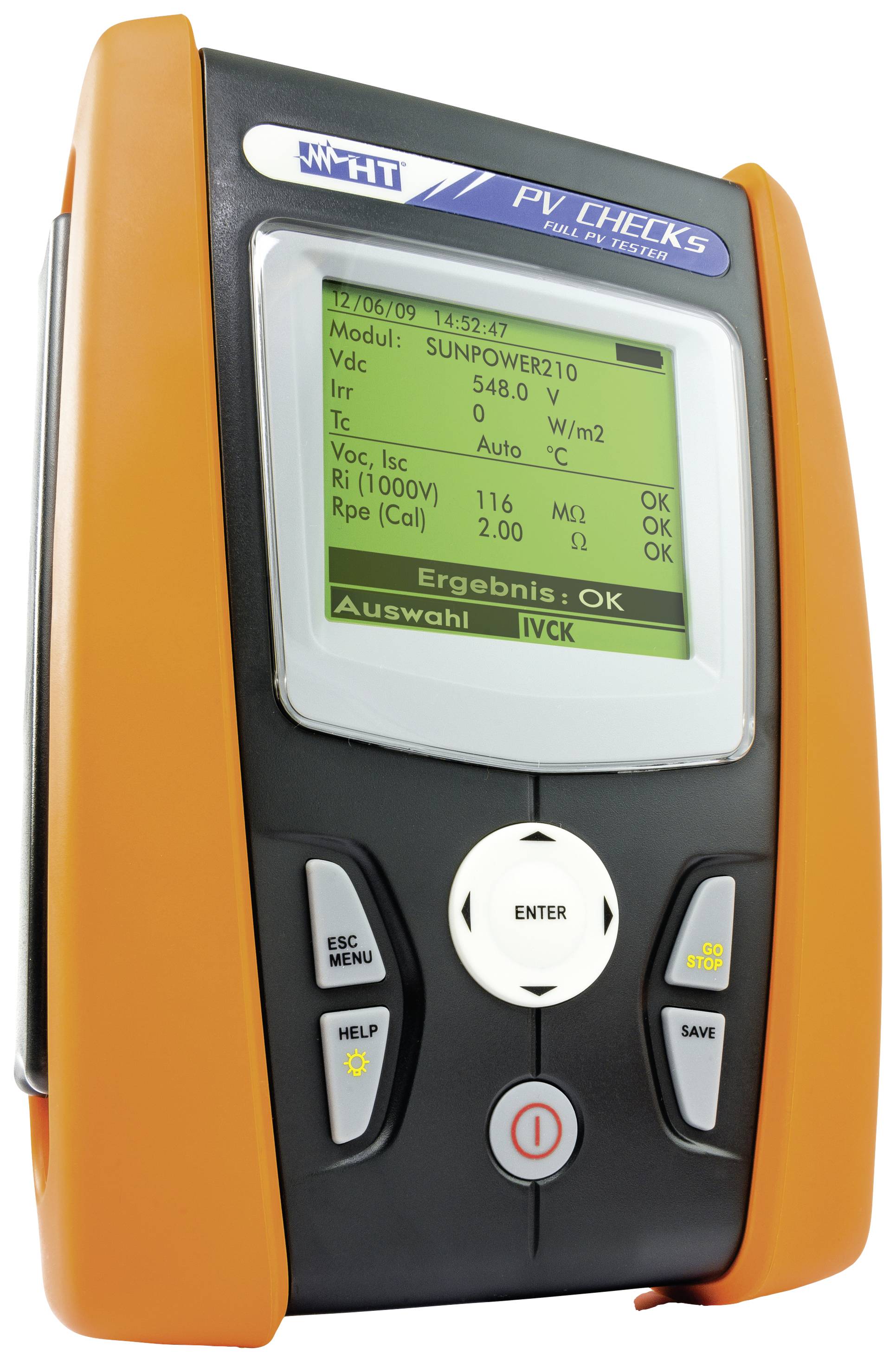

HT Instruments PV-CHECKs Electrical tester Calibrated to (DAkkS standards) VDE standard 0126
EAN:
Part number:
Item no:
Technical specifications
- Product type
Electrical tester
DAkkS standards
- Reading category
CAT I 1000 V
CAT III 300 V
- Interfaces
USB
- Dim
(L x W x H) 235 x 165 x 75 mm
- Weight
1.2 kg
- Reading range (VDE)
Earth leakage resistance
Insulation resistance
- DIN standard
DIN EN 62446
- Display type
Digital (LCD)
- Width
165 mm
- Height
75 mm
- Length
235 mm
- Test procedure
automated
manual
- Voltage supply
Battery
- Memory (space)
999
- Memory
Yes
- Type
PV-CHECKs
- VDE standard
0126
- Features
PV testing
incl. software
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2347005 HT Instruments PV-CHECKs Electrical tester Calibrated to (DAkkS standards) VDE standard 0126
Description
With the PV-Checks all required electrical safety tests on photovoltaic systems can be carried out simply, safely and in accordance with VDE 0126-23 (EN 62446). The simple operation (auto-sequence measuring sequence) enables a safe, reliable and fast execution of all required measurements (automatic test sequence): Short-circuit current - no-load voltage - insulation measurement - low-ohm measurement.
This text is machine translated.
This text is machine translated.
Features
- Insulation resistance measurement 250/500/1000 V/DC, with Riso single measurement + or – against earth, continuity test/low-ohm measurement RPE, no-load voltage measurement Uoc up to 1000 V/DC, short-circuit current measurement ISC up to 15 A DC, automatic display of voltage polarity, result display OK/not OK, function test & power measurement DC up to 100 A, data logger function, DC efficiency (optional with reference cell HT304N), temperature measurement (Optional with sensor PT300N), radiation measurement (optional with reference cell HT304N), including measured value memory for 999 measurements, incl. USB interface.
Scope of delivery
- 1 x HT4004 DC current transformer (10/100A DC)
- KITGSC4 set with 4 test leads and 4 alligator clips
- KITPV3 set with 2 MC-3 connection adapters
- KITPV4 set with 2 MC4 connection adapters
- Batteries
- USB connection cable C2006
- CD-ROM EVALUATION SOFTWARE TOPVIEW
- Transport bag BORSA2051
- Manual and calibration protocol ISO9000.
