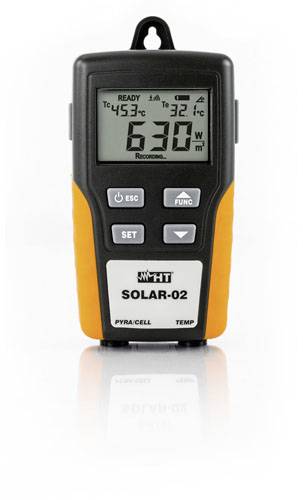

HT Instruments 1006720 SOLAR-02 Multi-channel data logger Unit of measurement Temperature, Radiant flux -20 up to 99.9 °
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 478.15 / piece)
€ 478.15
plus VAT.
14-day return policy included
Highlights & Details
HT Instruments 1006720 SOLAR-02 Multi-channel data logger Unit of measurement Temperature, Radiant flux -20 up to 99.9 °C
- Display of the solar radiation strength
- Display of the PV-Module temperature
- Display of the ambient temperature
- USB connection & radio module for transmission of the data stored
- Display the angle of inclination of PV-modules
Technical specifications
- Product type
Multi-channel data logger
- Unit of measurement
Temperature
Radiant flux
- Temperature reading range (min.)
-20 °C
- Temperature reading range (max.)
99.9 °C
- Sampling interval
5 to 900 s
Manufacturer's standards (no certificate)
- Power supply (details)
4 x 1.5 V type AAA
- Battery life
480 h
- Dim
(L x W x H) 35 x 65 x 120 mm
- Weight
215 g
- Resolution
0.1 °C
- Temperature reading range
-20 up to 99.9 °C
- Sample rate (max.)
900 s
- Sample rate (min.)
5 s
- Width
65 mm
- Height
120 mm
- Length
35 mm
- Power supply
AAA batteries (4x)
- Type
SOLAR-02
- Depth
35 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 103024 HT Instruments 1006720 SOLAR-02 Multi-channel data logger Unit of measurement Temperature, Radiant flux -20 up to 99.9 °
User & Safety Instructions
User & Safety Instructions 103024 HT Instruments 1006720 SOLAR-02 Multi-channel data logger Unit of measurement Temperature, Radiant flux -20 up to 99.9 °
Description
With the data logger SOLAR-02, the sunlight as well as the ambient and PV-Module temperature °C using the connected probes can be measured. In combination with the SOLAR300 N, I-V400 or SOLAR-IV, the above parameters for the recordings at 1- or 3-phase PV systems carried out for single-phase or three-phaseigen ermitt, paying attention to the efficiency of photovoltaic systems as well as for the STC Ermittelung the I-U characteristics of PV-modules.
This text is machine translated.
This text is machine translated.
Features
- LCD Display
- Auto-off function
- USB 2.0 port
- Radio module for transmission
- Radio module range 2 m
- Solar radiation strength
- Display PV module temperature
- Display ambient temperature.
Scope of delivery
- Solar 02
- 4 x 1.5 V AAA batteries
- User manual
- Calibration protocol.
