ICOM ICM330GE Maritime CB radio
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 293.28 / piece)
€ 293.28
plus VAT.
14-day return policy included
Highlights & Details
ICOM IC-M330GE Marine FM/DSC Fixed-mount radio with GPS antenna
- Compact FM maritime radio for fixed installation
- 25 W transmission power
- DSC Class D (Channel 70 Cont. Watch)
- Integrated GPS receiver with external GPS antenna (GPS/GLONASS/SBAS)
- Compliant with ITU-R M.493-14
- IPX7 waterproof.
- AquaQuake™ speaker drainage
- Dimensions 156.5 × 66.5 × 110.1 mm
Technical specifications
- Product type
Maritime CB radio
- Transfer type
Analogue
Radio
- Transmitter power
VHF 25 W
- Frequency ranges
VHF marine radio (TX: 156.000 – 162.000 MHz / RX: 156.000 – 163.425 MHz / CH70: 156.525 MHz) MHz
- Width
156.5 mm
- Height
66.5 mm
- Depth
110.1 mm
- Weight
730 g
- Dim
(W x H x D) 156.5 x 66.5 x 110.1 mm
Documents & Downloads
Datasheet
Datasheet 3829818 ICOM ICM330GE Maritime CB radio
User & Safety Instructions
User & Safety Instructions 3829818 ICOM ICM330GE Maritime CB radio
Description

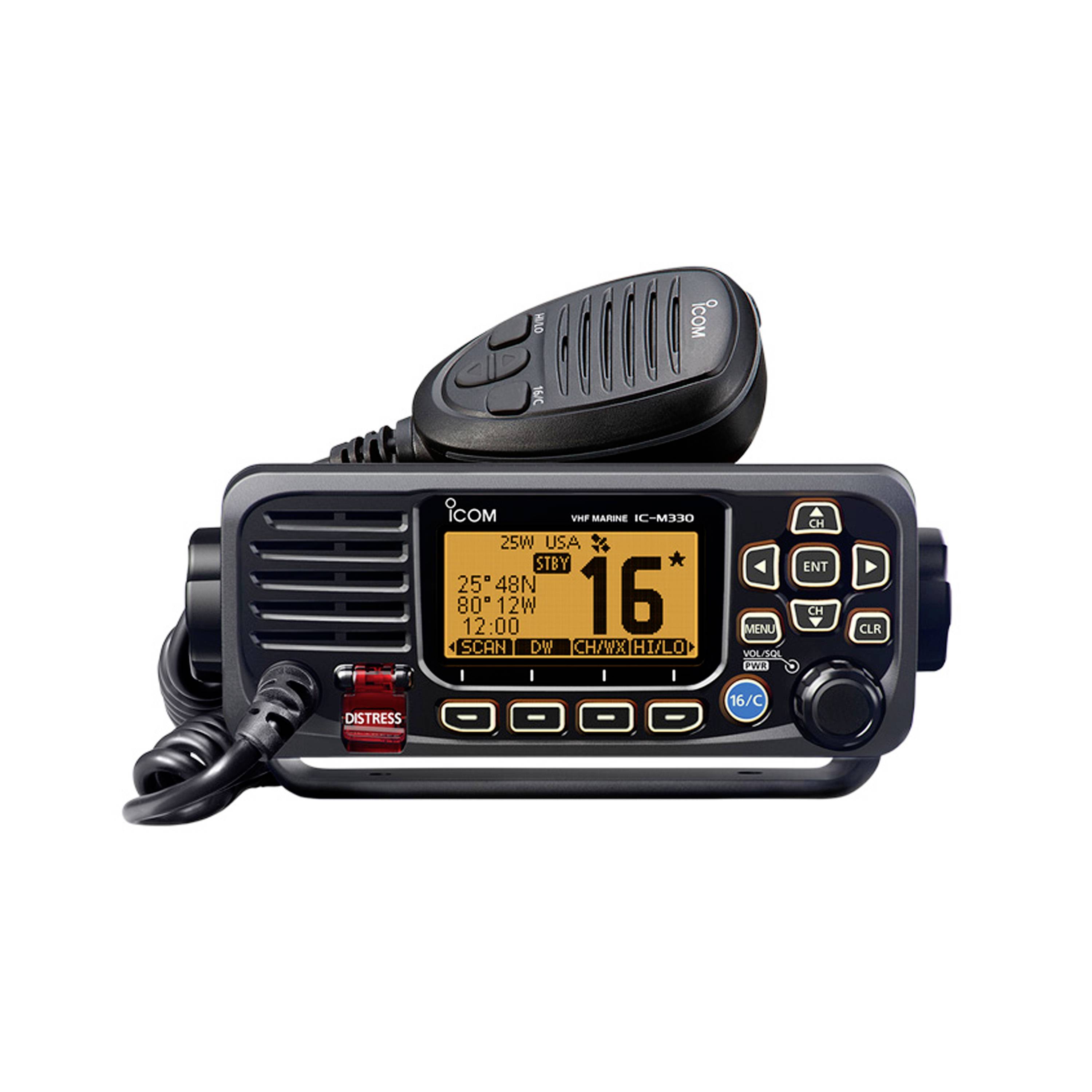

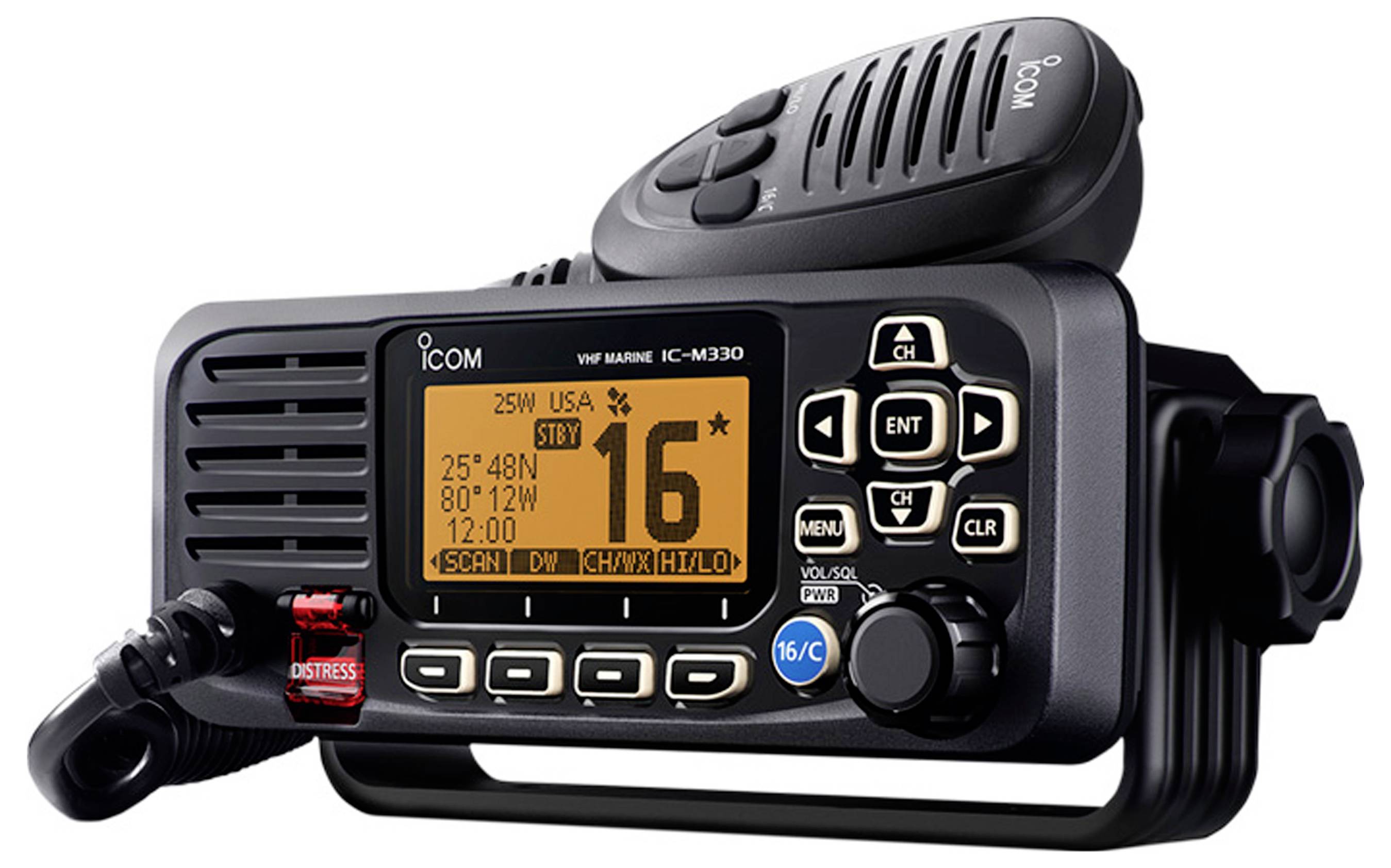

The ICOM IC-M330GE is an ultra-compact FM fixed mount marine radio with integrated DSC Class D controller and built-in GPS receiver with external GPS antenna for GPS, GLONASS and SBAS signals. As compared to the predecessor series M323G/M423G the device has been reduced by around 35% and still offers full 25 W transmission power as well as reliable IPX7 protection. The AquaQuake™ feature removes water from the speaker and ensures clear voice playback at any time.
This text is machine translated.
This text is machine translated.
Features
- 25 W transmission power
- Built-in DSC Class D Controller
- Integrated GPS receiver with external GPS antenna (GPS/GLONASS/SBAS)
- Compliant with ITU-R M.493-14
- IPX7 waterproof.
- AquaQuake™ speaker drainage
- High selectivity over 70 dB
- Dimensions 156.5 × 66.5 × 110.1 mm
Scope of delivery
- Radio device IC-M330GE
- HM-235B hand-held microphone
- GPS antenna (0800016040)
- Mounting bracket incl. accessories
- Power supply cable (DC)
- Microphone holder
- User manual
Hints
Before using ham radio devices you need to apply for an amateur radio licence (granted by your government).
