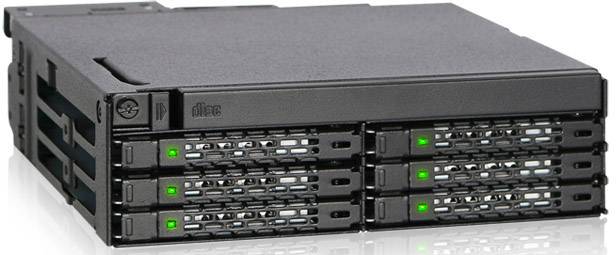

ICY DOCK ToughArmor 5.25" HDD caddy

With the ToughArmor MB606SPO-B, ICY DOCK presents a robust Hot Swap removable frame for 6x SATA/SAS SSDs and HDDs of up to 7mm height and 1x Ultra-Slim 9.5mm CD/DVD/Blu-ray ROM drive in a 5.25" installation slot. It is made entirely of metal and designed for commercial applications in military or medical systems, in-vehicle PCs, in-vehicle systems, servers, workstations and mobile computers. Ensure optimum operating temperatures with the adjustable 40mm fan and numerous ventilation openings. Removable trays / slots with vibration protection protect your drives even in adverse operating environments and the individual status LEDs give you the full overview of your drives at all times.

Maximum space usage
The highly compact design of the ToughArmor MB606SPO-B offers space for six 2.5" SSD/HDD hot swap slots with up to 7mm height and an optical ultra-slim CD/DVD/Blu-ray ROM drive in a single 5.25" installation slot - perfect for applications with small space requirements such as portable military workstations or industrial rack-mount PCs.

For Ultra Slim ODD (9.5 mm height)
The newly developed holder for optical drives of the MB606SPO-B offers an adaptive design that supports ultra-slim 9.5mm CD/DVD/Blu-Ray ROM drives.

Supports 5-7mm 2.5" installation height
MB606SPO-BS Tray was developed to support HDDs and SSDs with up to 7mm height and allows the use of SAS and SATA drives. For example, SAS drives are used in enterprise environments for long-term archiving due to their long life, higher reliability.

Versatile design
If you use an Ultra Slim drive - the installation is easy thanks to the labeled mounting holes. Once the bracket and drive are connected, your drive is held securely in place by means of a screw integrated in the front - even in case of strong movements and vibrations.

Removable CD/DVD drive bracket
If your CD/DVD/Blu-ray drive is to be replaced, then it is just as easy. Loosen the screw in the front and the spring-loaded eject lever becomes visible. Simply pull the lever to remove the optical drive from the housing.

Robust construction
CY Docks ToughArmor relies on a robust full-metal design for both the housing and the trays, which is also retained in the MB606SPO-B. ToughArmor is specifically designed for industrial applications that run in demanding operating environments such as military and medical applications, aerospace systems, factory systems, and any applications that require fire classification.

Packed with features
To prevent dust contamination, which permanently clogs internal connections or affects the air flow, the inclusive dust cover offers effective protection in case no optical drive is installed. If a CD/DVD/Blu-ray drive is then installed, the dust protection cover can be easily removed without tools and screws.

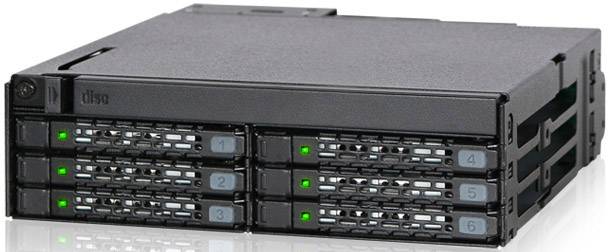

Individual drive status LED
Individual status LEDs for each bay allow you to have a full overview of your drives at any time. You can see which drives are currently being accessed or which bays are empty.

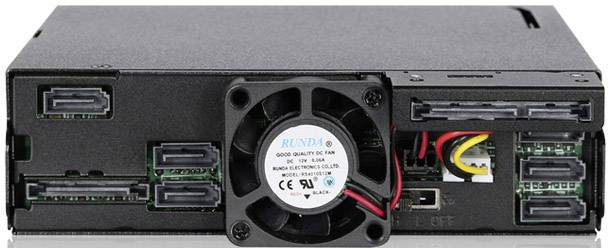

Fan control
An adjustable 40mm fan works together with numerous ventilation openings in the trays and the housing in order to dissipate as much heat as possible, so that your drives can be operated at an optimum temperature. The fan can be set to maximum performance (high) for labor-intensive applications with mechanical hard drives or low for operation with SSDs. The fan can also be switched off completely to put on the cooling through the housing fans.

Supports holder clips
Both SATA data and power cables with retaining clips are supported, so you don't have to worry about accidentally disconnecting cables during operation. Once the cables are connected, they remain secure until they are removed manually, ensuring reliable data and power connections.

Recommended applications
Ideal for applications requiring compact storage solutions for SSDs and mechanical hard drives, especially SATA hard drives with high storage capacity or SAS drives. For example, medical and military systems that require a robust design or compact servers that rely on 2.5" mechanical HDDs as storage devices.
