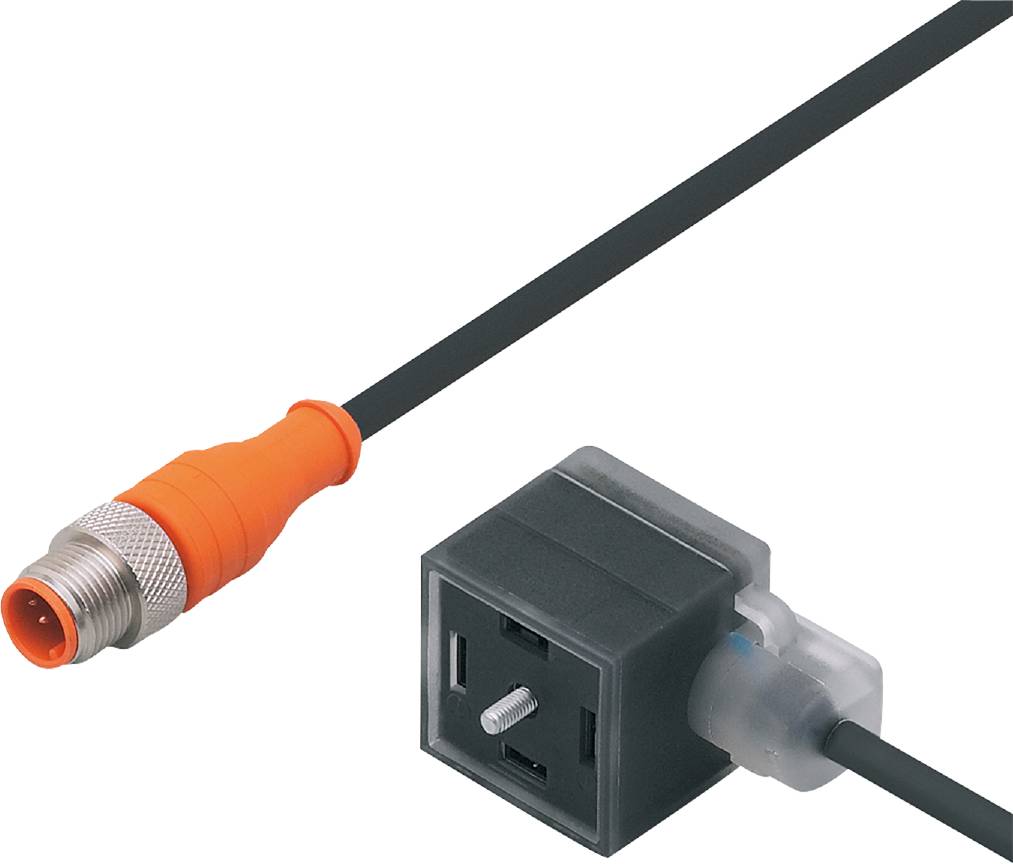

Ifm E70224 Connecting cable E70224 E70224 ifm Electronic Content: 1 pc(s)
Packaging type
Piece
Product type
Square connector + molded lead
Type
A standard
Connection
Socket
Number of pins
3
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm E70224 Connecting cable
- Reliable connection of valves in the field
- High protection class to meet the requirements of harsh industrial ambient
- High operating temperature range
- Highly visible LED
- Robust rectangular connectors
Technical specifications
- Display: Operation 1 x LED, green
- Ambient temperature-1 [°C]: -25...90
- Special feature: Silicone-free; halogen-free; gold-plated contacts
- OPERATING VOLTAGE [V] < 24 AC/DC
- Weight [g]: 117,000
- Cable 2 - Cable: 1.5 m, PUR/PVC, halogen-free; 3 x 0.5 mm² (42 x Ø 0.1 mm)
- IP 67 protection
- Silicone-free: Yes
- Plug connection: 1.Plug - Pin layout: 0062 - Plug connection: 1 x M12, straight; Coding: A; Grip body: TPU; Locking: Brass, Nickel-plated; contacts: gold-plated / 3.socket - pin layout: 0102 - plug connection: 1 x valve design A DIN, angled; handle body: TPU; lock: brass, nickel plated; Nickel-plated brass contacts
- Overvoltage protection: Free-wheeling diode
- Material grip body: TPU
- Material swivel nut: Nickel-plated brass
- Packaging type
Piece
- Conductor material
TPU
- Product type
Square connector + molded lead
- Type
A standard
- Connection
Socket
- Number of pins
3
4
- Nominal voltage
24 V DC/AC
- Display
LED
- Total no. of pins
3, 4
- Weight
117.000 g
- Manufacturer part #
E70224
- Content
1 pc(s)
- Cable length
1.5 m
- Cable cross section
0.5 mm²
- Length
1.5 m
- max. cross section
0.5 mm²
- RoHS-compliant
Yes
- Circuit layout description
incl. diode
- Standard
DIN
- Connector type
right angle
- Max. temperature
90 °C
- Min. temperature
-25 °C
- Type
E70224
- Features
LED
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3316005 Ifm E70224 Connecting cable E70224 E70224 ifm Electronic Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3316005 Ifm E70224 Connecting cable E70224 E70224 ifm Electronic Content: 1 pc(s)
Description
Ifm E70224 Connecting cable
