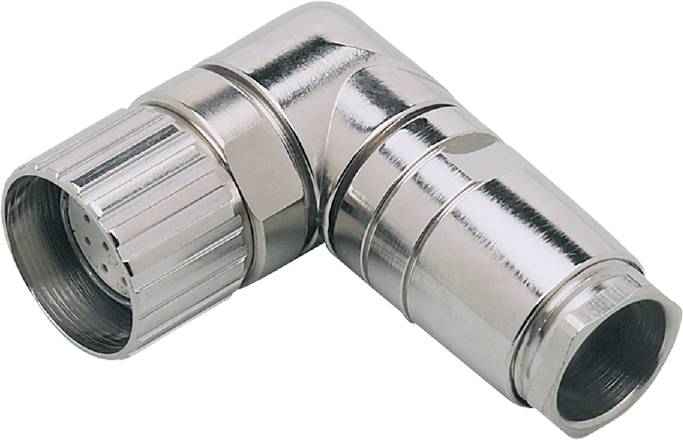

ifm Electronic E10447 Sensor/actuator connector M23 Socket, right angle No. of pins (RJ): 12 1 pc(s)
Product type
Sensor/actuator connector
Connector type
Socket, right angle
Connection side A
M23
Connection side B
Customisable
No. of pins
12
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm E10447 preassembled socket
- For central distributor with M23 plug connector
- Robust metal casing for use in harsh industrial environments
- High operating temperature range
- Angled design for use in cramped spaces
- Secure cable connection by means of solder connection
Technical specifications
- Dimensions [mm] 51 x 26 x 58
- Ambient temperature-1 [°C]: -25...90
- Operating voltage [V]: 10... 30 DC
- Weight [g]: 144,500
- Connection/terminals ready for assembly: Solder connection: ...1 mm²; cable jacket: Ø 10...14 mm
- Protection system: IP 65
- Plug connection: Socket - pin layout: 0021 - plug connection: 1 x M23, angled; grip body: Brass, nickel-plated; lock: Brass, nickel-plated
- Current carrying capacity total [A]: 7.5
- Material grip body: Nickel-plated brass
- Material swivel nut: Nickel-plated brass
- Type
E10447
- Product type
Sensor/actuator connector
- Connector type
Socket, right angle
- Connection side A
M23
- Connection side B
Customisable
- No. of pins
12
- Nominal voltage
30 V DC
- Connector cross-section (max.)
1 mm²
- Cross-section (sensor/actuator wiring)
1 mm²
- Thread type connection side
M23
- max. cross section
1 mm²
- Features
Industrial-grade
- Min. temperature
-25 °C
- Max. temperature
90 °C
- Manufacturer part #
E10447
- Content
1 pc(s)
- Cable Ø (max.)
14 mm
- Cable Ø up to
10 mm
- Cable Ø range
10 - 14 mm
- RoHS-compliant
Yes
- UKCA
yes
