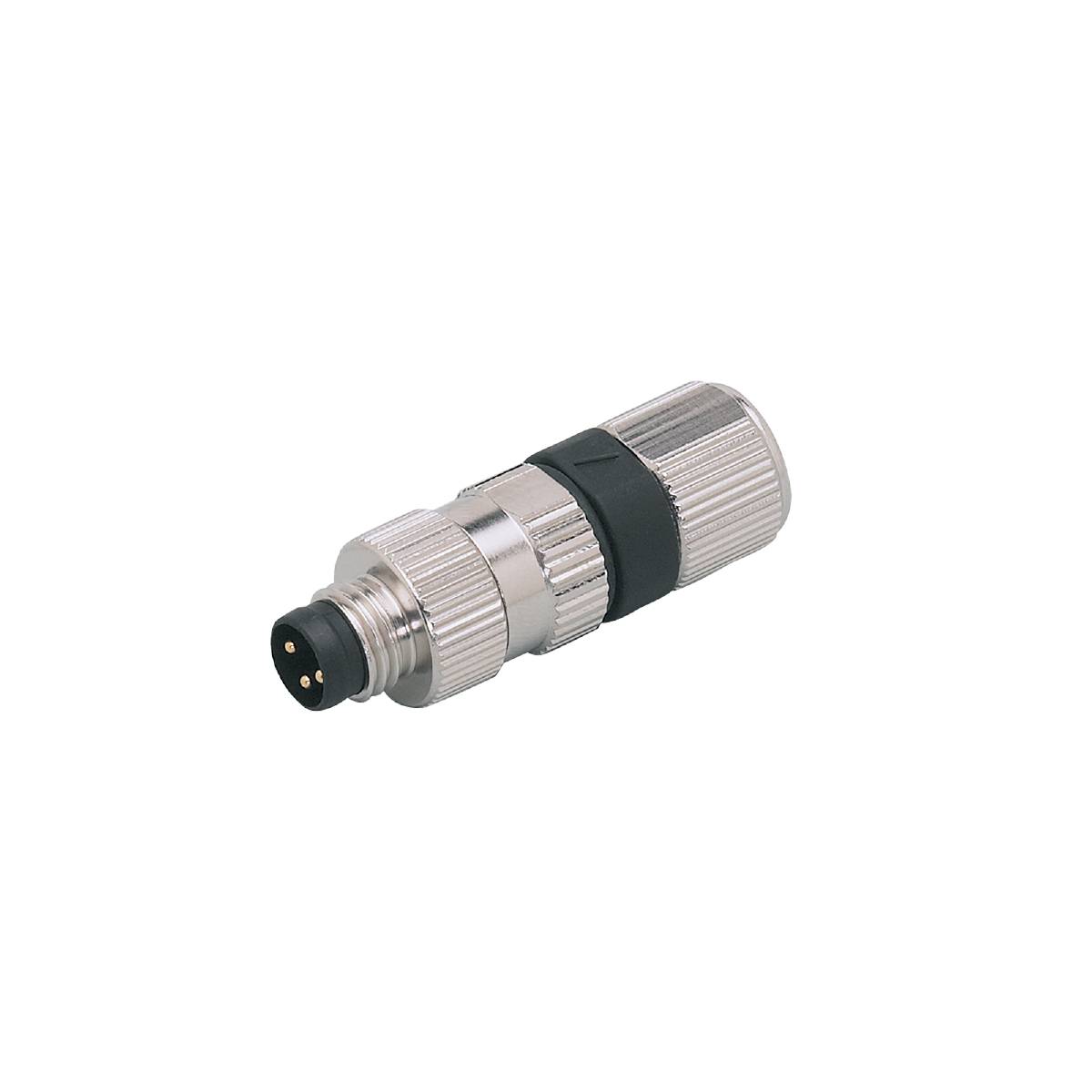

ifm Electronic E11550 Sensor/actuator connector M8 Plug, straight No. of pins (RJ): 3 1 pc(s)
Product type
Sensor/actuator connector
Connector type
Plug, straight
Connection side A
M8
Connection side B
Customisable
No. of pins
3
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
E11550
- Product type
Sensor/actuator connector
- Connector type
Plug, straight
- Connection side A
M8
- Connection side B
Customisable
- No. of pins
3
- Nominal voltage
50 V AC
75 V DC
- Connector cross-section (max.)
0.38 mm²
- Cross-section (sensor/actuator wiring)
0.38 mm²
- Connection
Plug
- Thread type connection side
M8
- Coding
A
- Contact material
Gold
- Contact surface
Gold plated
- Features
A-coded
- Min. temperature
-25 °C
- Max. temperature
90 °C
- Manufacturer part #
E11550
- Content
1 pc(s)
- Cable Ø (max.)
5 mm
- Cable Ø up to
3 mm
- Cable Ø range
3 - 5 mm
- UKCA
yes
