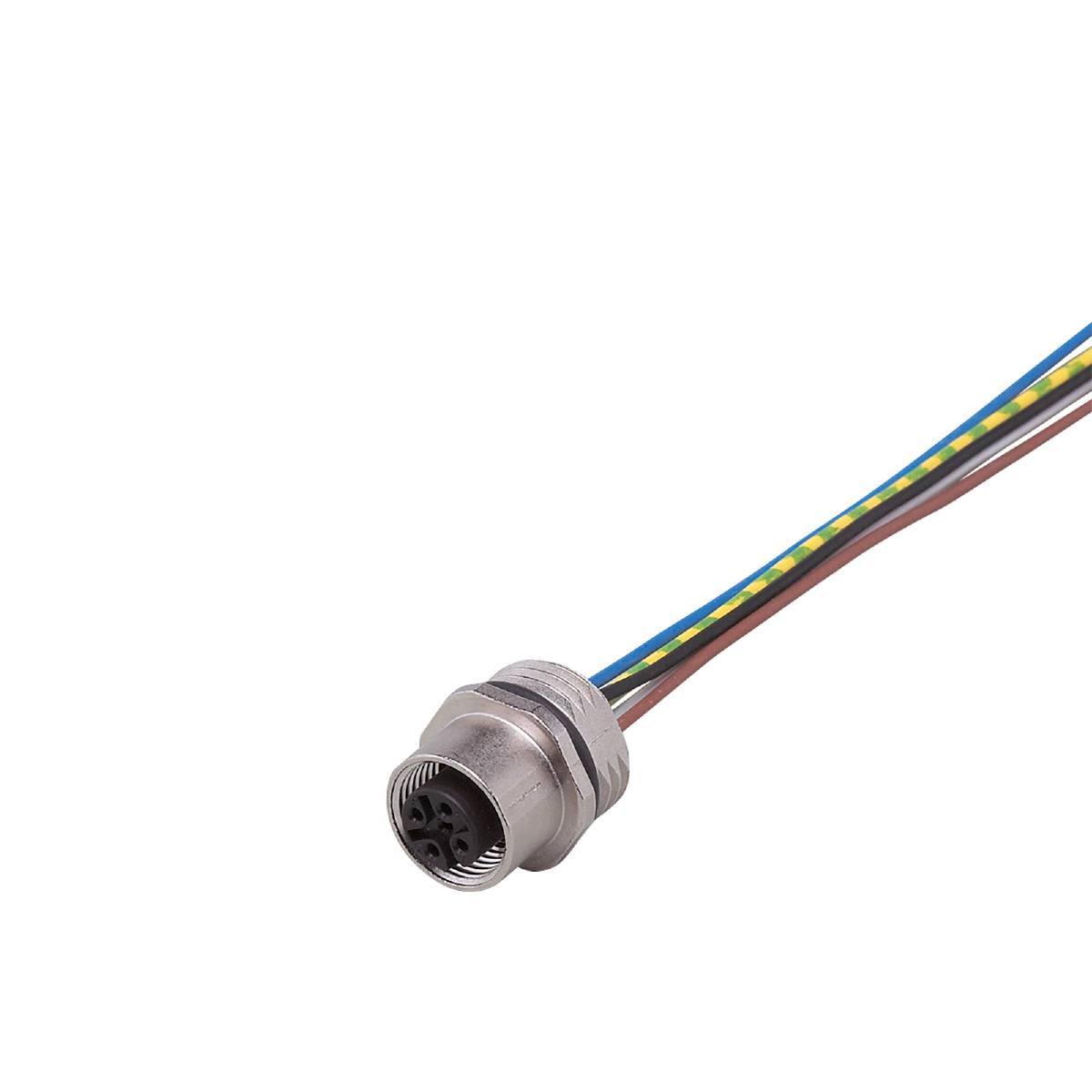

ifm Electronic E11917 Sensor/actuator recess-mount socket M16 0.7 m No. of pins (RJ): 5 1 pc(s) Piece
Product type
Sensor/actuator recess-mount socket
Connection side A
M12
Connection side B
Cable, open end
No. of pins
5
Cable length
0.7 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Type
E11917
- Product type
Sensor/actuator recess-mount socket
- Connection side A
M12
- Connection side B
Cable, open end
- No. of pins
5
- Cable length
0.7 m
- Jacket material
PVC
- Nominal voltage
125 V DC/AC
- Connector cross-section (max.)
0.5 mm²
- Cross-section (sensor/actuator wiring)
0.5 mm²
- Connection
M12 socket
- Thread type connection side
M16
- Thread type (wiring and installation)
M16
- Coding
A
- max. cross section
0.5 mm²
- Features
PVC
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Manufacturer part #
E11917
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
