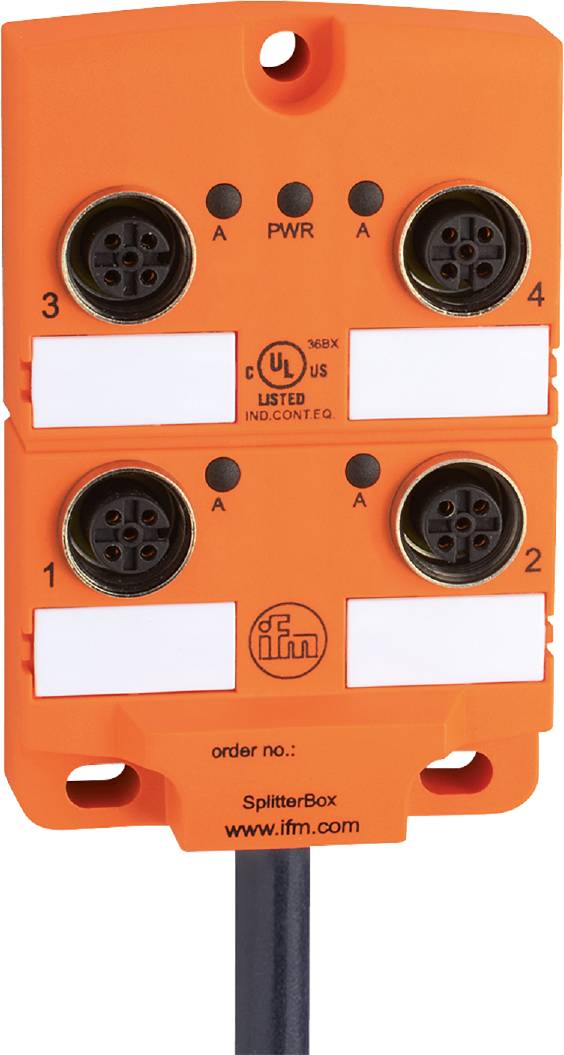

Image similar
ifm Electronic EBC015 Sensor/actuator splitter/adapter 5 m No. of pins (RJ): 5 1 pc(s)
Product type
Sensor/actuator splitter/adapter
Connector standard
Sensor connector
Connection side A
M12
Connection side B
Cable, open end
No. of pins
5
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
EBC015
- Product type
Sensor/actuator splitter/adapter
- Connector standard
Sensor connector
- Connection side A
M12
- Connection side B
Cable, open end
- No. of pins
5
- Cable length
5 m
- Jacket material
PUR
- Nominal voltage
30 V DC
- Connector cross-section (max.)
1 mm²
- Cross-section (sensor/actuator wiring)
1 mm²
- Connection
M12 socket
- Coding
A
- Contact material
Gold plated
- Contact surface
Gold plated
- max. cross section
1 mm²
- Min. cross section
0.34 mm²
- Features
Halogen-free
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Manufacturer part #
EBC015
- Content
1 pc(s)
- Cable Ø
7.5 mm
- Cable Ø (max.)
7.5 mm
- Cable Ø range
7.5 mm (max)
- UKCA
yes
