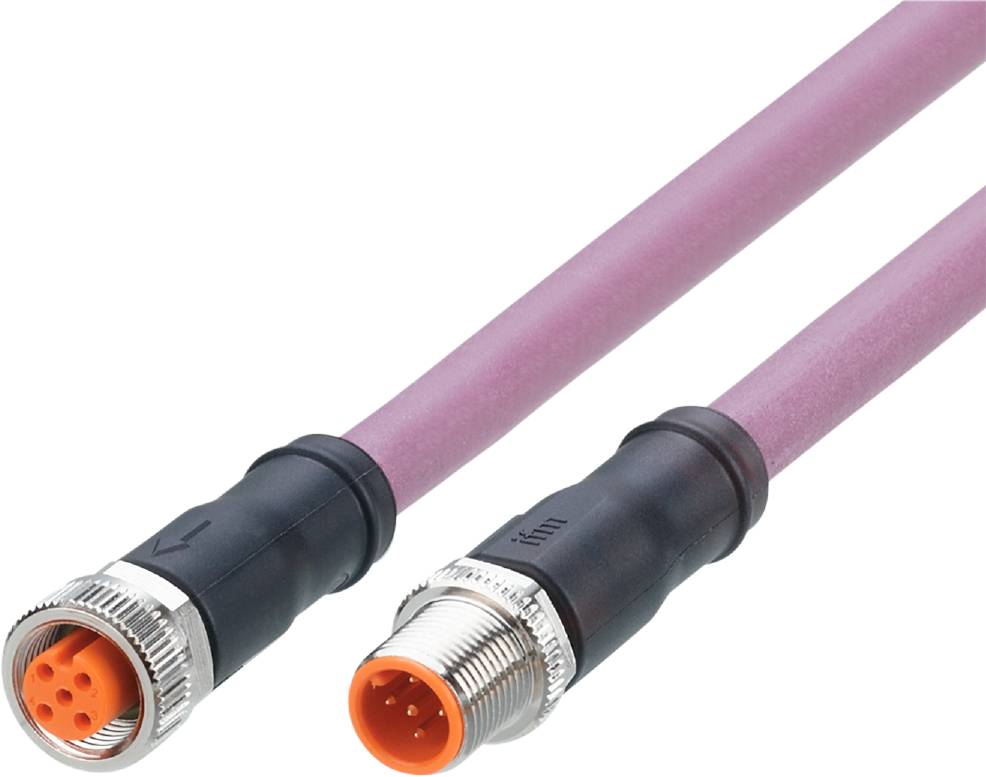

ifm Electronic EVC962 Cable connection M12 Plug, straight, Socket, straight 2 m No. of pins (RJ): 5, 5 1 pc(s)
Product type
Cable connection
Connector type
Plug, straight
Socket, straight
Connection side A
M12
Connection side B
M12
No. of pins
5
5
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
EVC962
- Product type
Cable connection
- Connector type
Plug, straight
Socket, straight
- Connection side A
M12
- Connection side B
M12
- No. of pins
5
5
- Cable length
2 m
- Jacket material
PUR
- Nominal voltage
32 V DC
- Connector cross-section (max.)
0.75 mm²
- Cross-section (sensor/actuator wiring)
0.75 mm²
- Connection
M12 plug
M12 socket
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
A
- Contact surface
Gold plated
- max. cross section
0.75 mm²
- Features
Suitable for drag chains
Shake-proof
Shielded
Halogen-free
Oil-resistant
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
EVC962
- Content
1 pc(s)
- Cable Ø
8.4 mm
- Cable Ø (max.)
8.4 mm
- Cable Ø up to
8.4 mm
- Cable Ø range
8.4 - 8.4 mm
- RoHS-compliant
Yes
- UKCA
yes
