Image similar

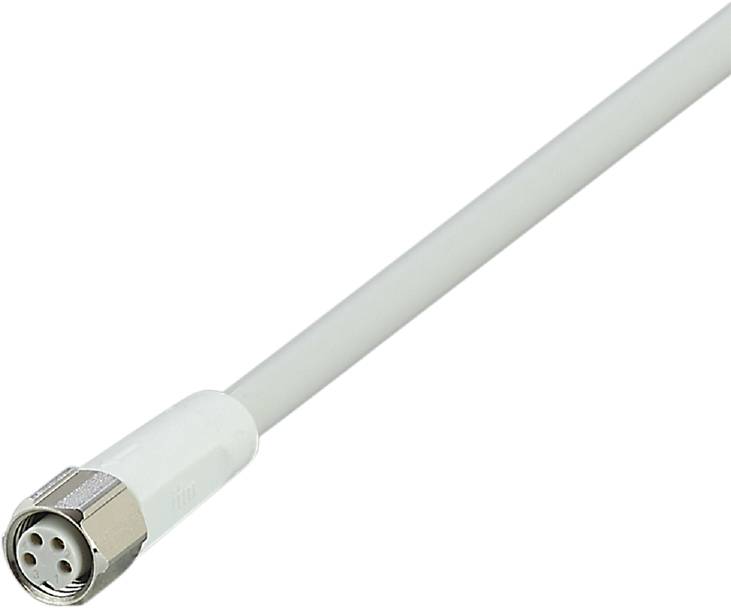

ifm Electronic EVF646 Cable M8 Socket, straight 20 m No. of pins (RJ): 4 1 pc(s)
Product type
Cable
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
M8
Connection side B
Cable, open end
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
EVF646
- Product type
Cable
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
M8
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
20 m
- Jacket material
MPPE
- Nominal voltage
50 V AC
60 V DC
- Connector cross-section (max.)
0.34 mm²
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
M8 socket
- Thread type connection side
M8
- Coding
A
- Contact material
Gold plated
- Contact surface
Gold plated
- max. cross section
0.34 mm²
- Features
Halogen-free
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
EVF646
- Content
1 pc(s)
- Cable Ø
4.9 mm
- UKCA
yes
