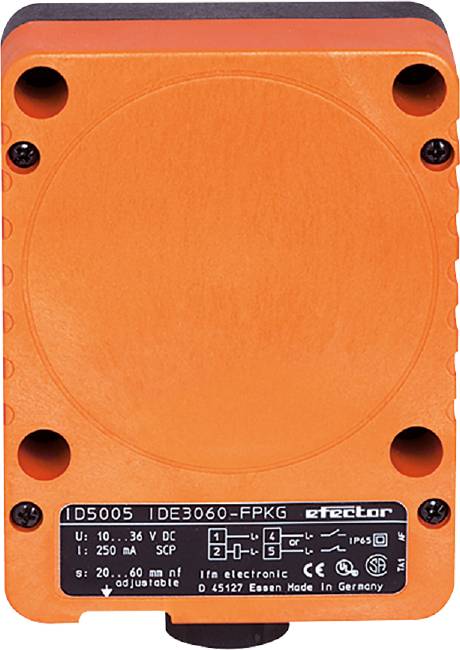

ifm Electronic Sensor Inductive ID5005 ID5005 105 x 80 mm non-shielded PNP (L x W x H) 40 x 80 x 40 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 breaker
1 maker
Switching distance (max.)
60 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Ifm ID5005 inductive sensor
- Very long switching distance
- Large active sensor surface
- Simply setting the switching distance using potentiometers
- Output function NO / NC programmable
- Robust housing for use in rough industrial environment
Technical specifications
- Dimensions [mm] 105 x 80 x 40
- Display: Switch status 1 x LED, yellow
- Working distance [mm]: 0...48.6
- Ambient temperature-1 [°C]: -25...80
- Output function: NO / NC; (selectable)
- Operating voltage [V]: 10... 36 DC
- Continuous current carrying capacity of the switching output DC [mA]: 250
- Built: Not flush-mounted
- Electrical version: PNP
- Housing: Square
- Weight [g]: 434,000
- Hysteresis: 1...15
- Connection / Terminals ready for assembly: Terminals: ...2.5 mm²; cable jacket: Ø 7...13 mm; cable gland: M20 X 1.5
- Correction factor (Al): 0.3
- Correction factor (Cu): 0.2
- Correction factor (Ms): 0.4
- Correction factor (V2A) 0.7
- Correction factor steel (St37): 1
- Short-circuit protection: Yes
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 1277
- Test mark (special cases): CCC
- Real switching distance Sr [mm]: 60 ± 10 %
- Switching distance [mm]: 60
- Switching distance adjustable: Yes
- Switching frequency DC [Hz]: 100
- Switch point drift: -10...10
- Protection system: IP 65
- Protection class: II
- Power consumption 15; (24 V)
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Factory setting Switching distance [mm]: 60
- Product type
Sensor
- Type
ID5005
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 breaker
1 maker
- Switching distance (max.)
60 mm
- Outputs
PNP
- Enclosure material
PPE
- Model
Inductive
- Installation type
non-shielded
- Size
105 x 80 mm
- Connector
Clip
- Min. temperature
-25 °C
- Max. temperature
80 °C
IP65
- Length
40 mm
- Width
80 mm
- Height
40 mm
- Dim
(L x W x H) 40 x 80 x 40 mm
- Content
1 pc(s)
- Switching frequency
100 Hz
- Weight
0.43
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320463 ifm Electronic Sensor Inductive ID5005 ID5005 105 x 80 mm non-shielded PNP (L x W x H) 40 x 80 x 40 mm
User & Safety Instructions
User & Safety Instructions 3320463 ifm Electronic Sensor Inductive ID5005 ID5005 105 x 80 mm non-shielded PNP (L x W x H) 40 x 80 x 40 mm
Description
Ifm ID5005 inductive sensor
This text is machine translated.
This text is machine translated.
What kind of Proximity Sensors are you looking for?

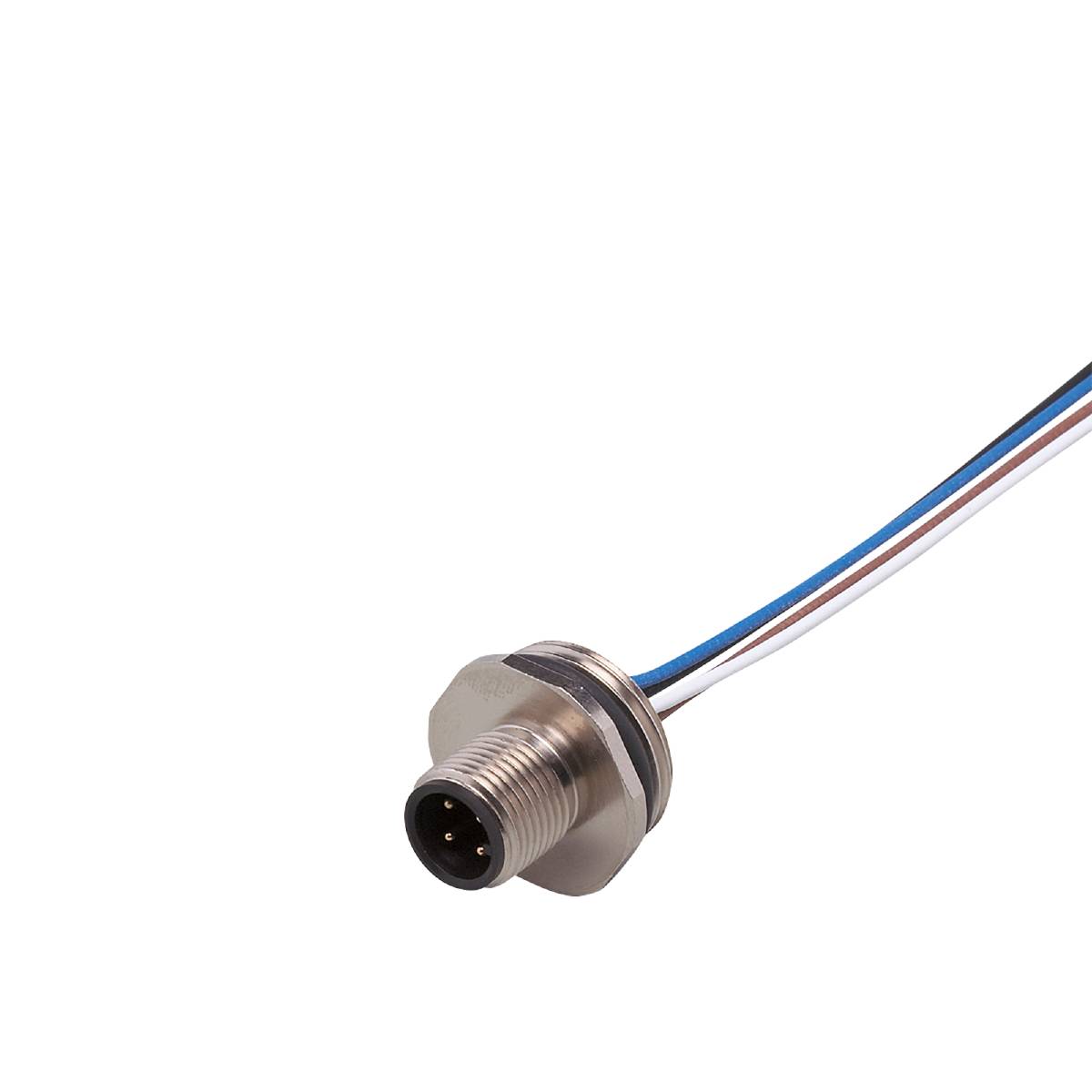

Accessories
