Image similar

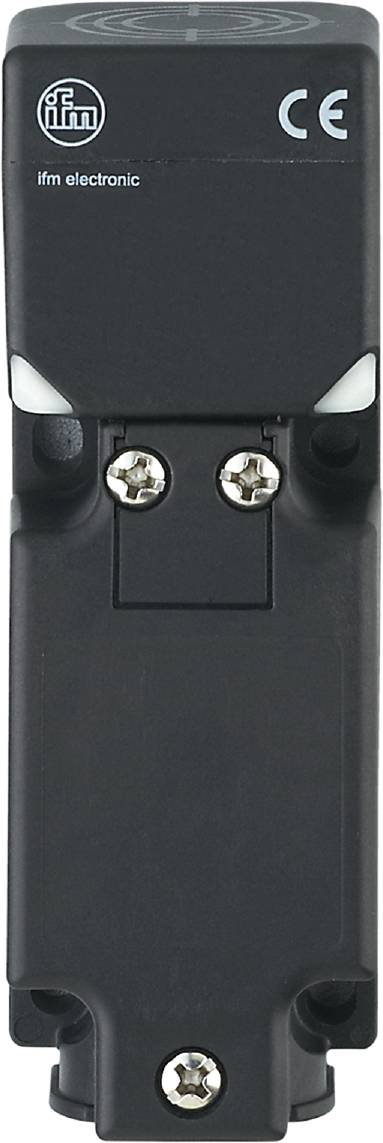

ifm Electronic Sensor Inductive IV5004 IV5004 shielded PNP (L x W x H) 118 x 40 x 40 mm
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
Antivalent
Switching distance (max.)
20 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm IV5004 Inductive Sensor
- Active surface can be aligned in five positions
- High switching distance for high plant availability
- Robust housing for use in rough industrial environment
- For applications in materials handling technology
- LED indicator for controlling switch status and operation
Technical specifications
- Dimensions [mm] 40 x 40 x 118
- Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
- Working distance [mm]: 0...16.2
- Ambient temperature-1 [°C]: -25...85
- Short-circuit protection version: Synchronised
- Output function: Earlier
- Operating voltage [V]: 10... 30 DC
- Continuous current carrying capacity of the switching output DC [mA]: 200
- Flush mounting type: Flush mounting
- Electrical version: PNP
- Housing: Square
- Weight [g]: 250,000
- Hysteresis: 1...10
- Connection/terminals ready for assembly: Terminals: ...2.5 mm²; cable gland: M20 X 1.5
- Correction factor (Al): 0.3
- Correction factor (Cu): 0.3
- Correction factor (Ms): 0.4
- Correction factor (V2A) 0.7
- Correction factor steel (St37): 1
- Short-circuit protection: Yes
- max. Voltage drop switch output DC [V]: 2
- MTTF: 652.2
- Test mark (special cases): CCC
- Real switching distance Sr [mm]: 20 ± 10 %
- Switching distance [mm]: 20
- Switching frequency DC [Hz]: 400
- Switch point drift: -10...10
- PROTECTION CLASS IP 68; IP 69K
- Protection class: II
- Power consumption 20; (24 V)
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Product type
Sensor
- Type
IV5004
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
Antivalent
- Switching distance (max.)
20 mm
- Outputs
PNP
- Model
Inductive
- Installation type
shielded
- Connector
Clip
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Length
118 mm
- Width
40 mm
- Height
40 mm
- Dim
(L x W x H) 118 x 40 x 40 mm
- Content
1 pc(s)
- Switching frequency
400 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318956 ifm Electronic Sensor Inductive IV5004 IV5004 shielded PNP (L x W x H) 118 x 40 x 40 mm
User & Safety Instructions
User & Safety Instructions 3318956 ifm Electronic Sensor Inductive IV5004 IV5004 shielded PNP (L x W x H) 118 x 40 x 40 mm
Description
Ifm IV5004 Inductive Sensor
This text is machine translated.
This text is machine translated.
