Name: Iiyama IIYAMA 60.5cm (23,8"") T2452MSC-B2AG 16: Industrial touchscreen EEC: E (A - G) 61 cm (24 inch) 16:9 5 ms
Brand: Iiyama
SKU: 3796687

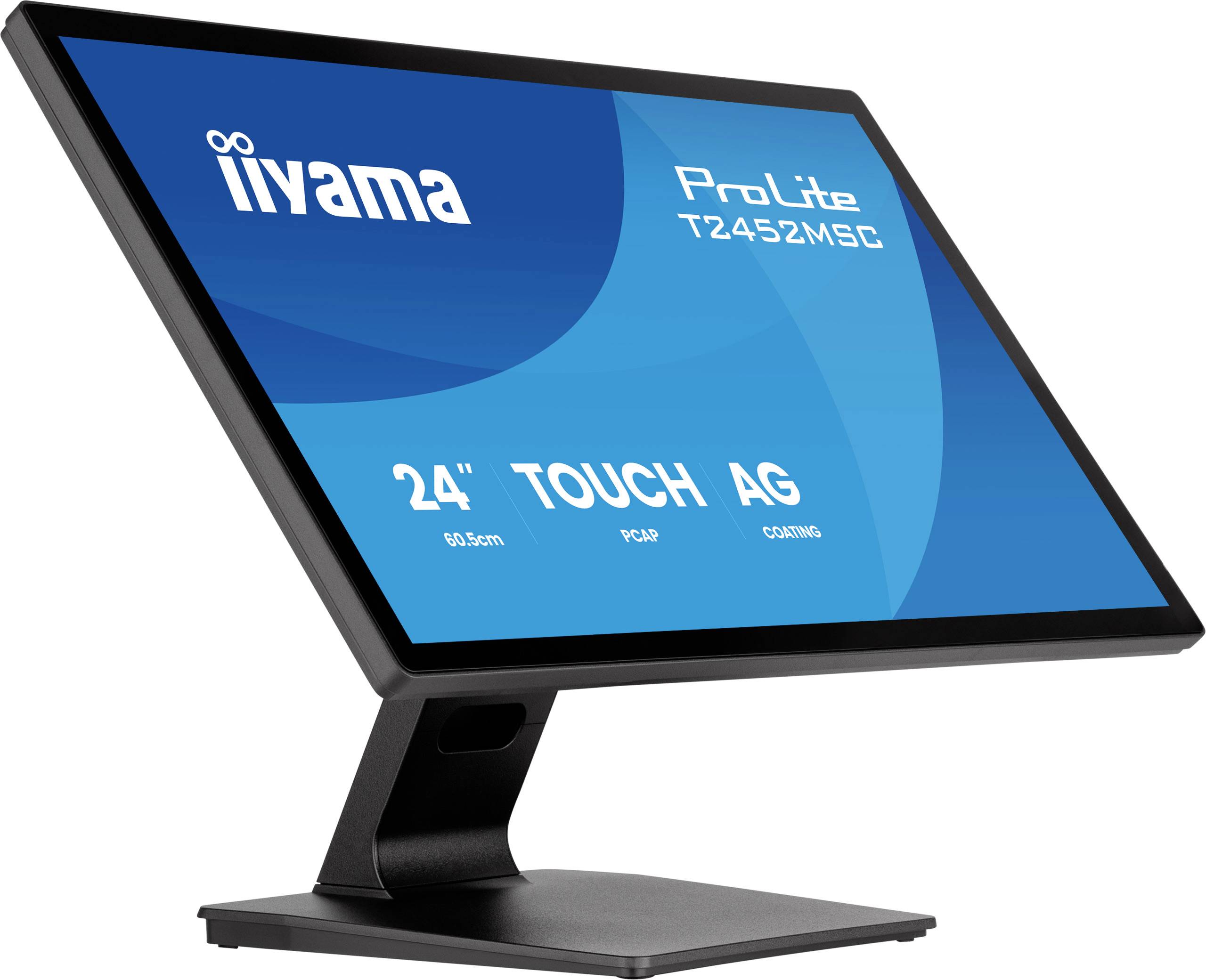

Iiyama ProLite T2452MSC 24-inch touchscreen monitor on a stand, shown angled on a white background.

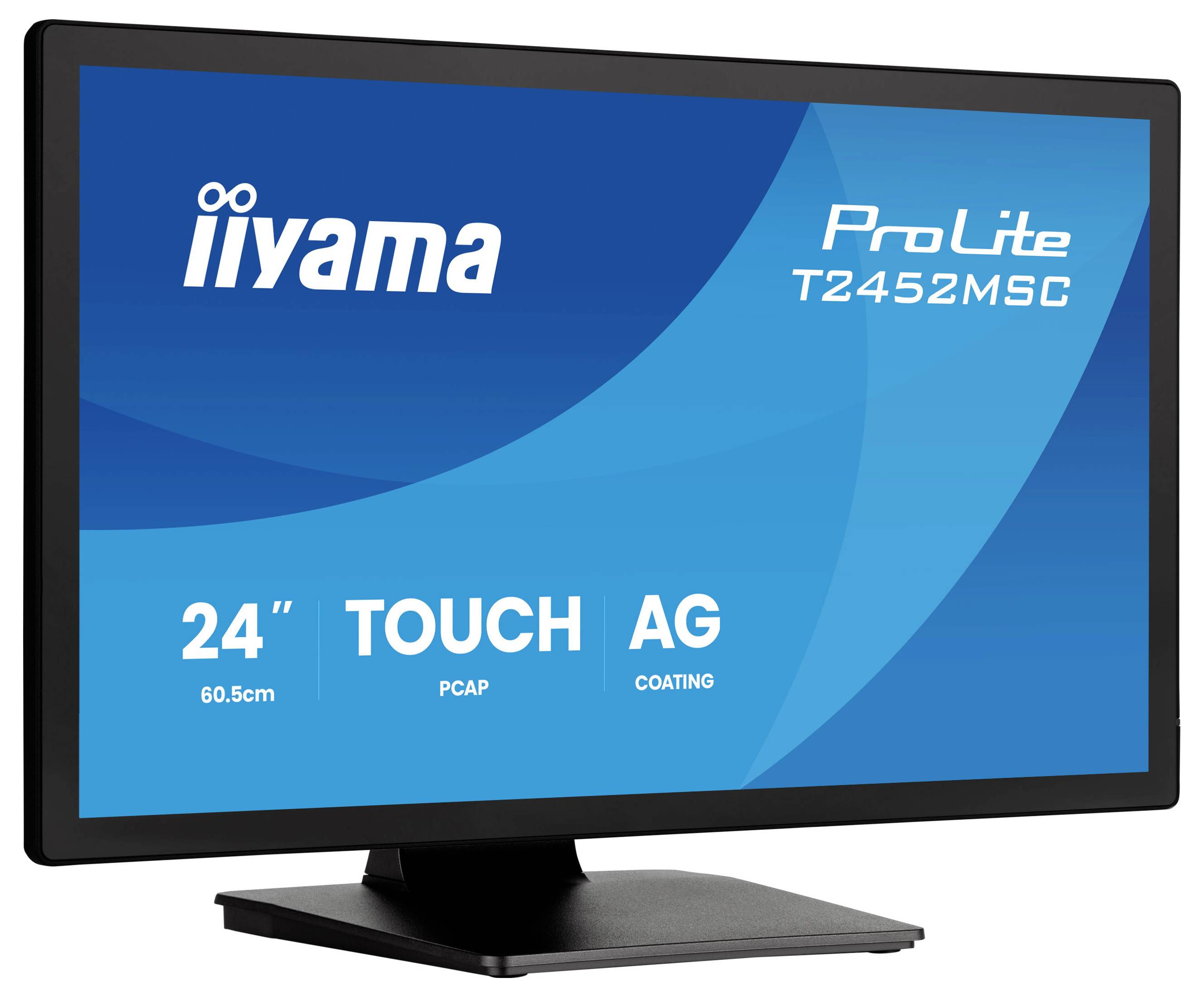

Iiyama ProLite T2452MSC 24-inch touch monitor with anti-glare coating on a stand.

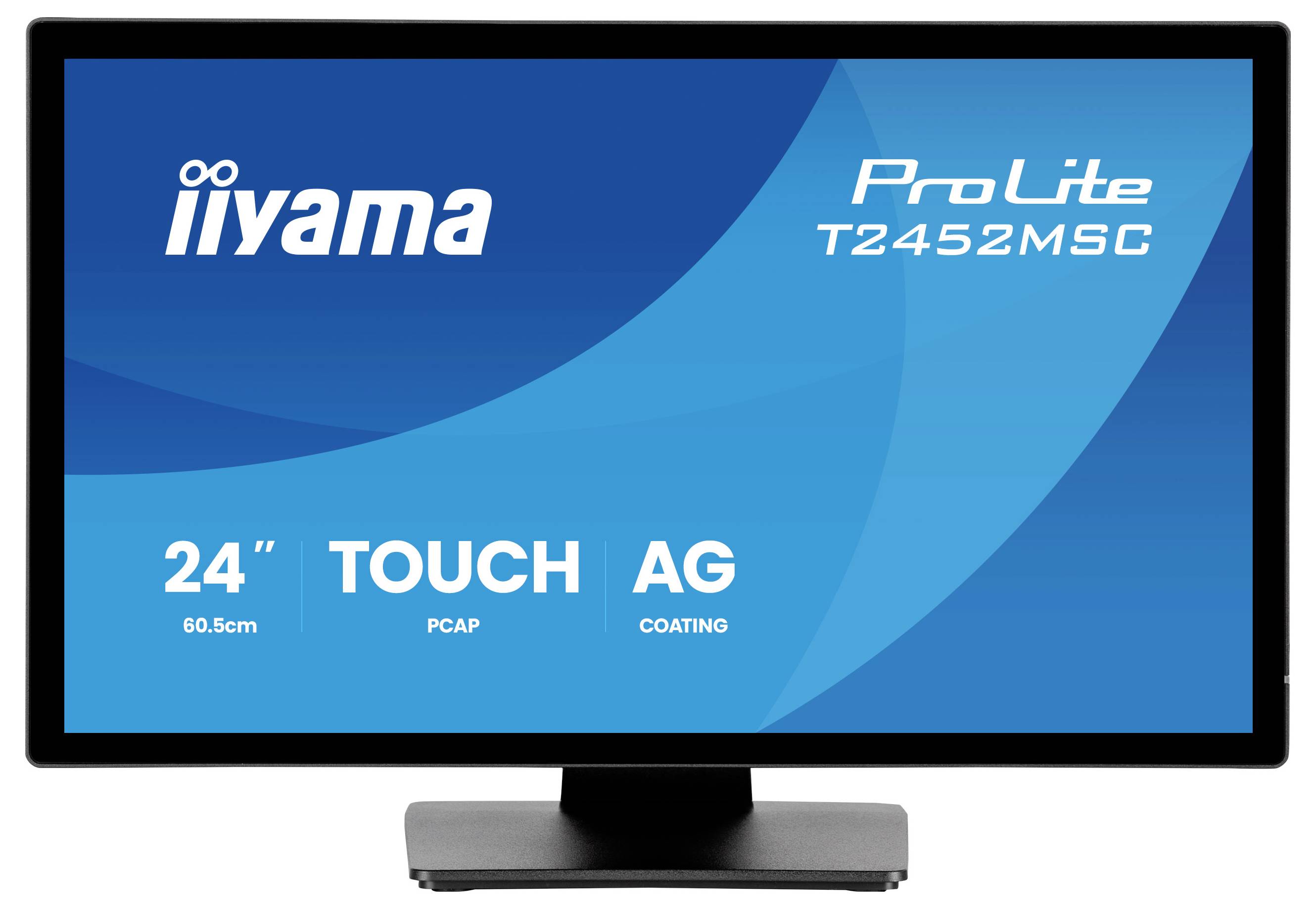

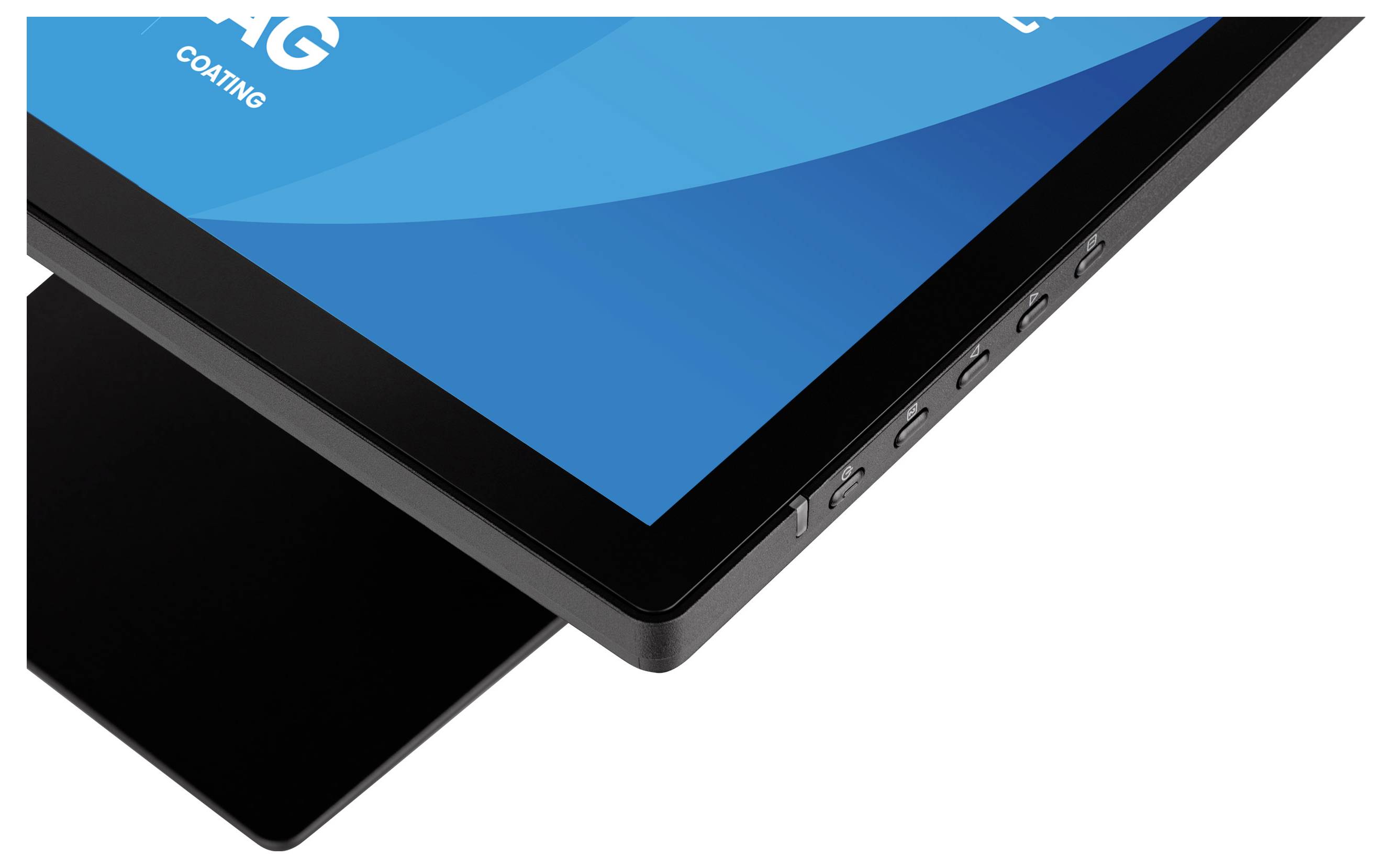

Iiyama ProLite T2452MSC 24-inch touchscreen monitor with blue promotional screen showing 'TOUCH' and 'AG coating' features.

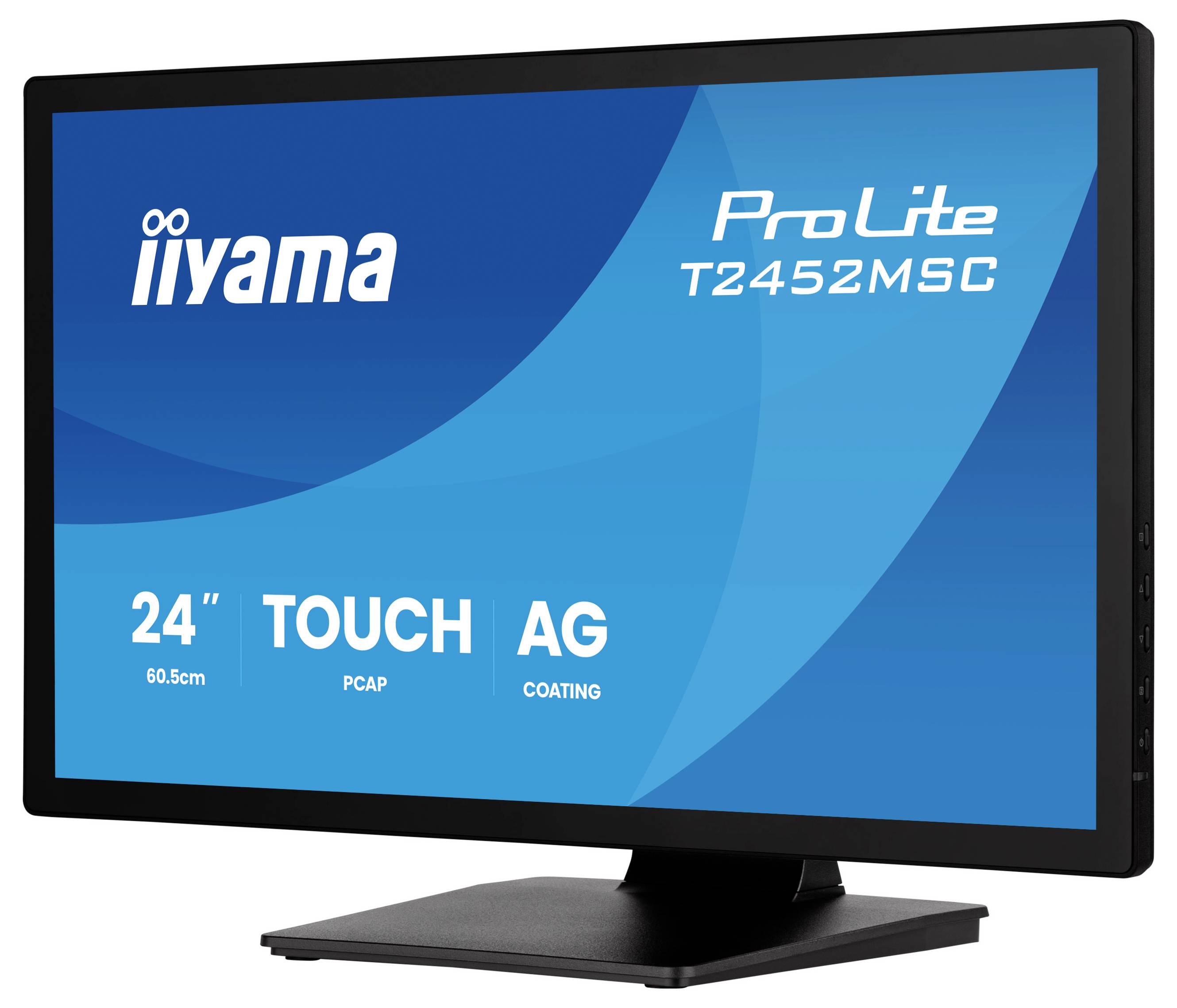

Product image of an iiyama ProLite T2452MSC 24-inch touchscreen monitor with blue display and stand.

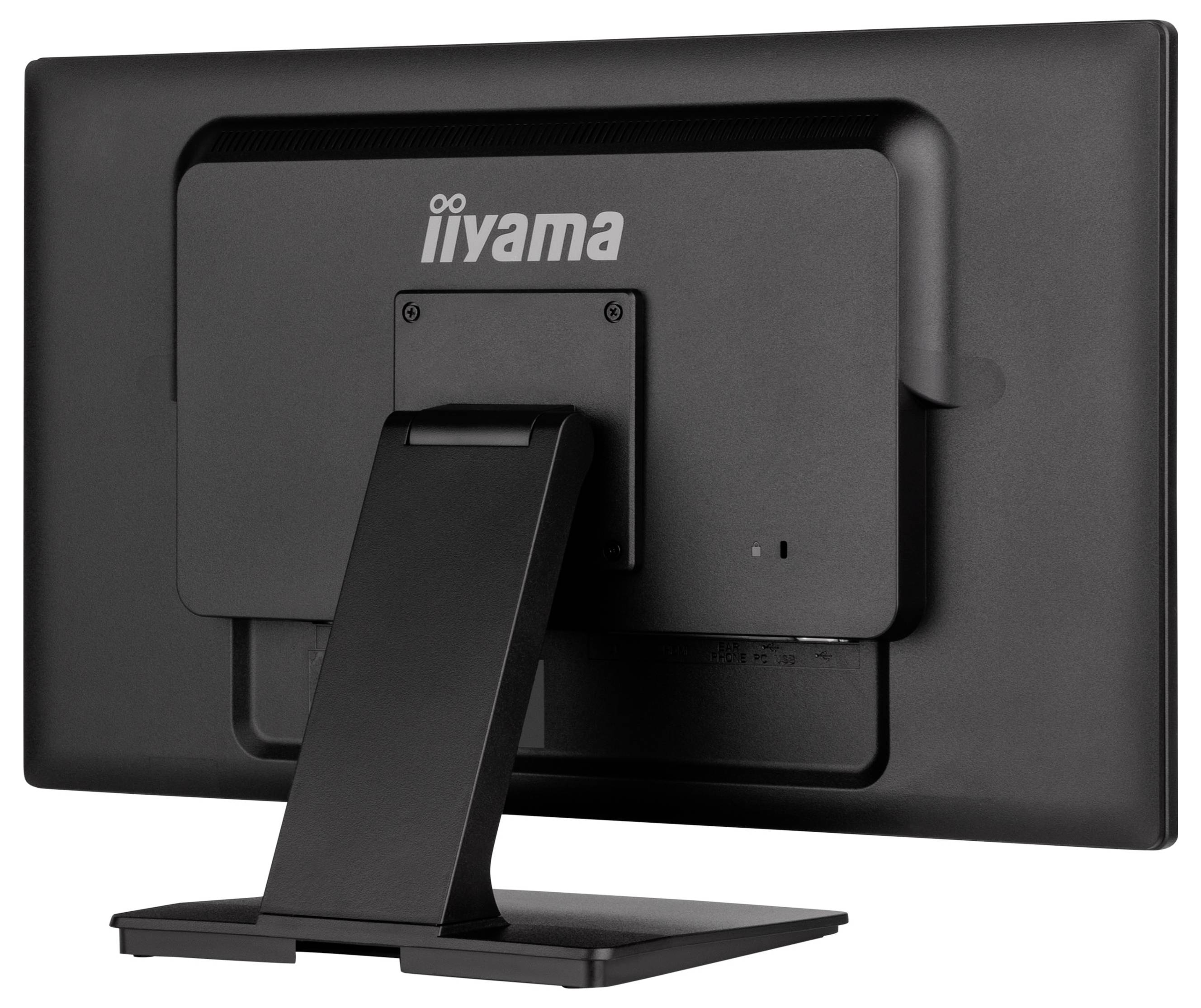

Back view of a black iiyama computer monitor on a stand, showing the rear mounting panel and cable area.<br>

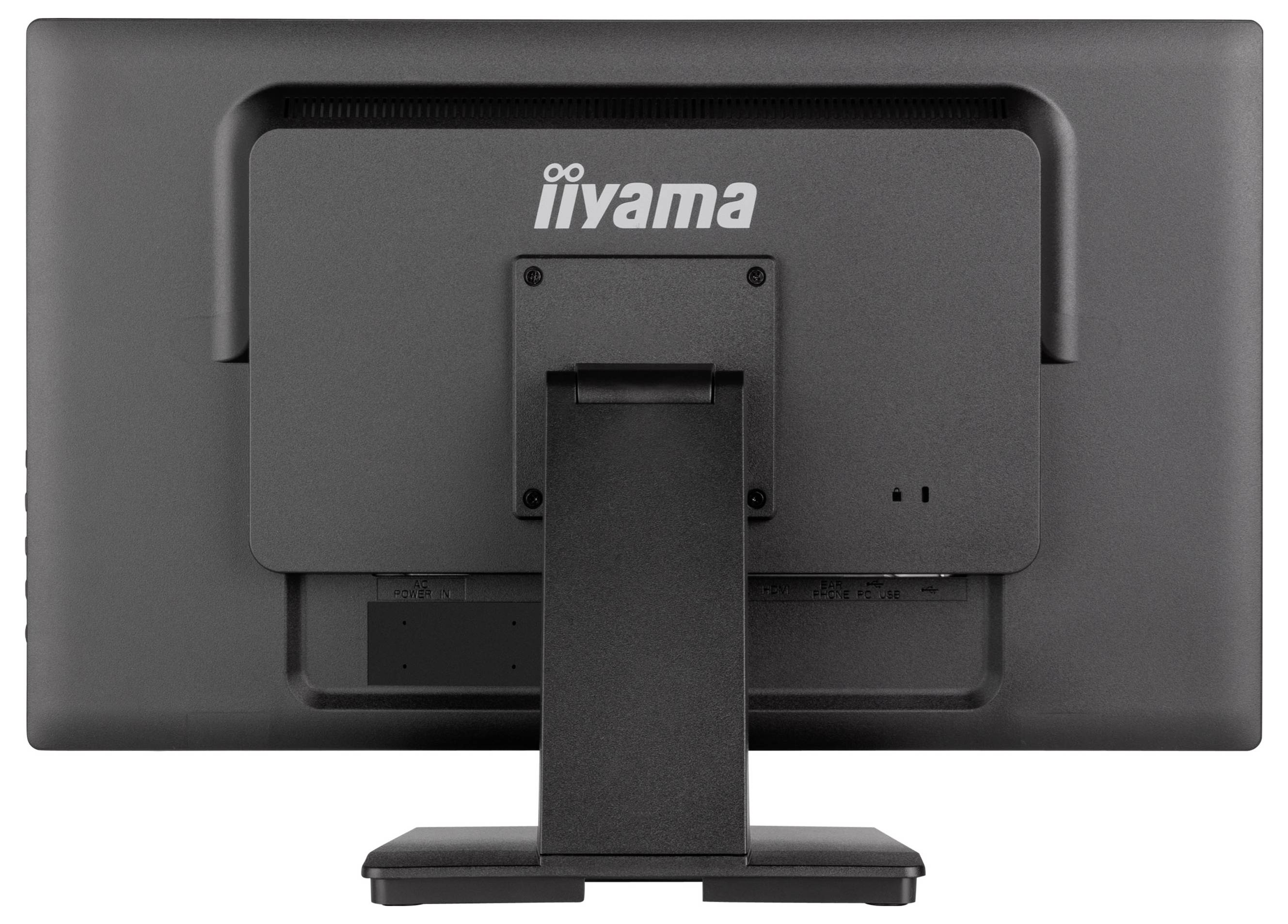

Back view of an iiyama computer monitor on a stand.

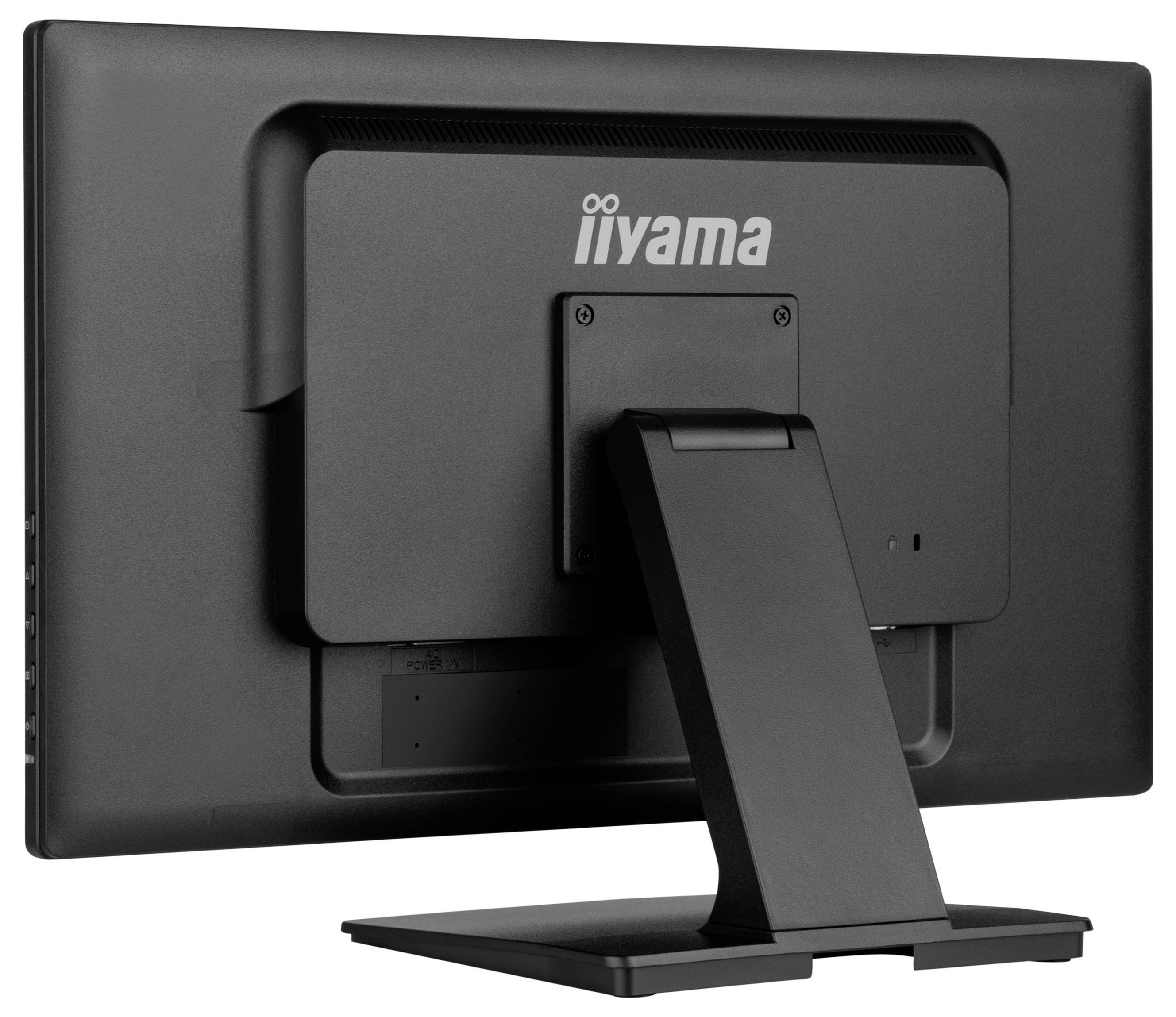

Back view of a black Iiyama computer monitor on a stand, showing the rear mount and adjustable support arm.

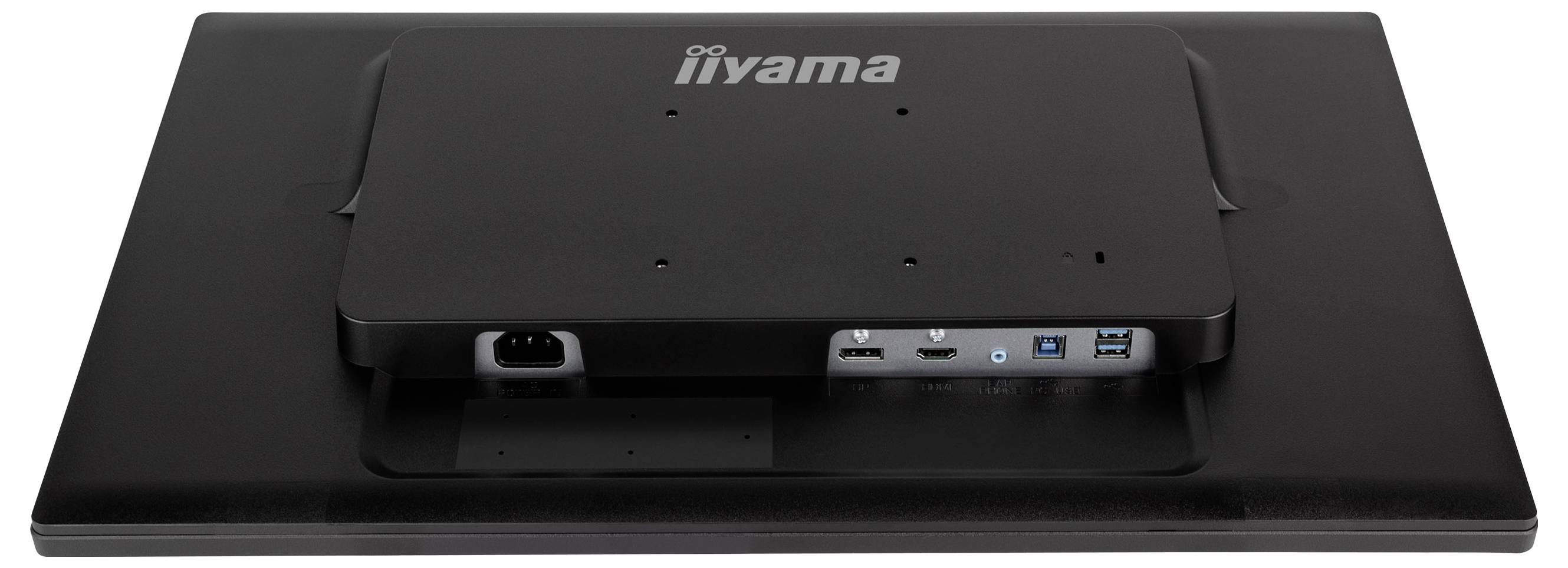

Back view of an Iiyama monitor stand with built-in cable ports and input connections visible on the rear panel.

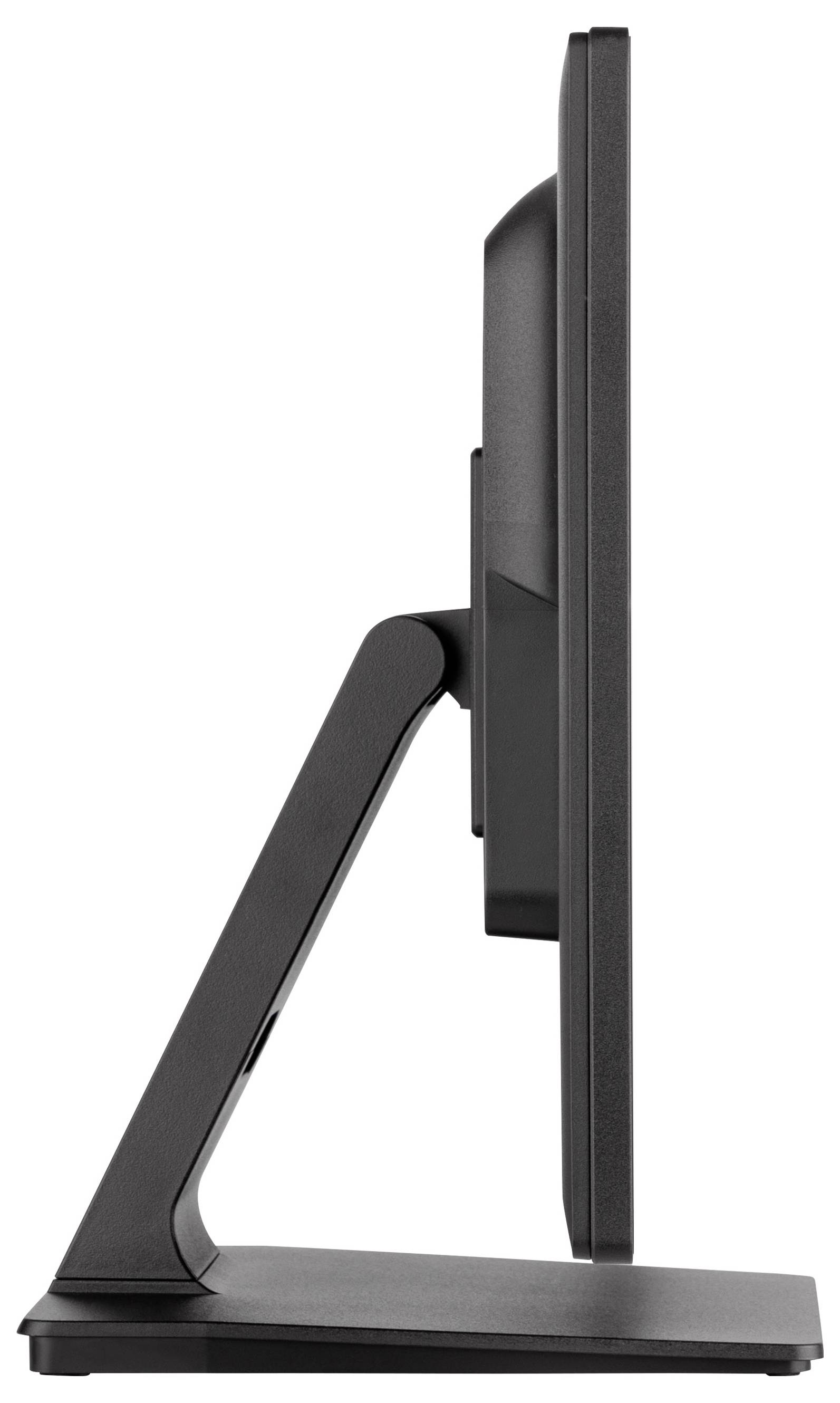

Side view of a black desktop monitor on a stand with a slanted support arm against a white background.

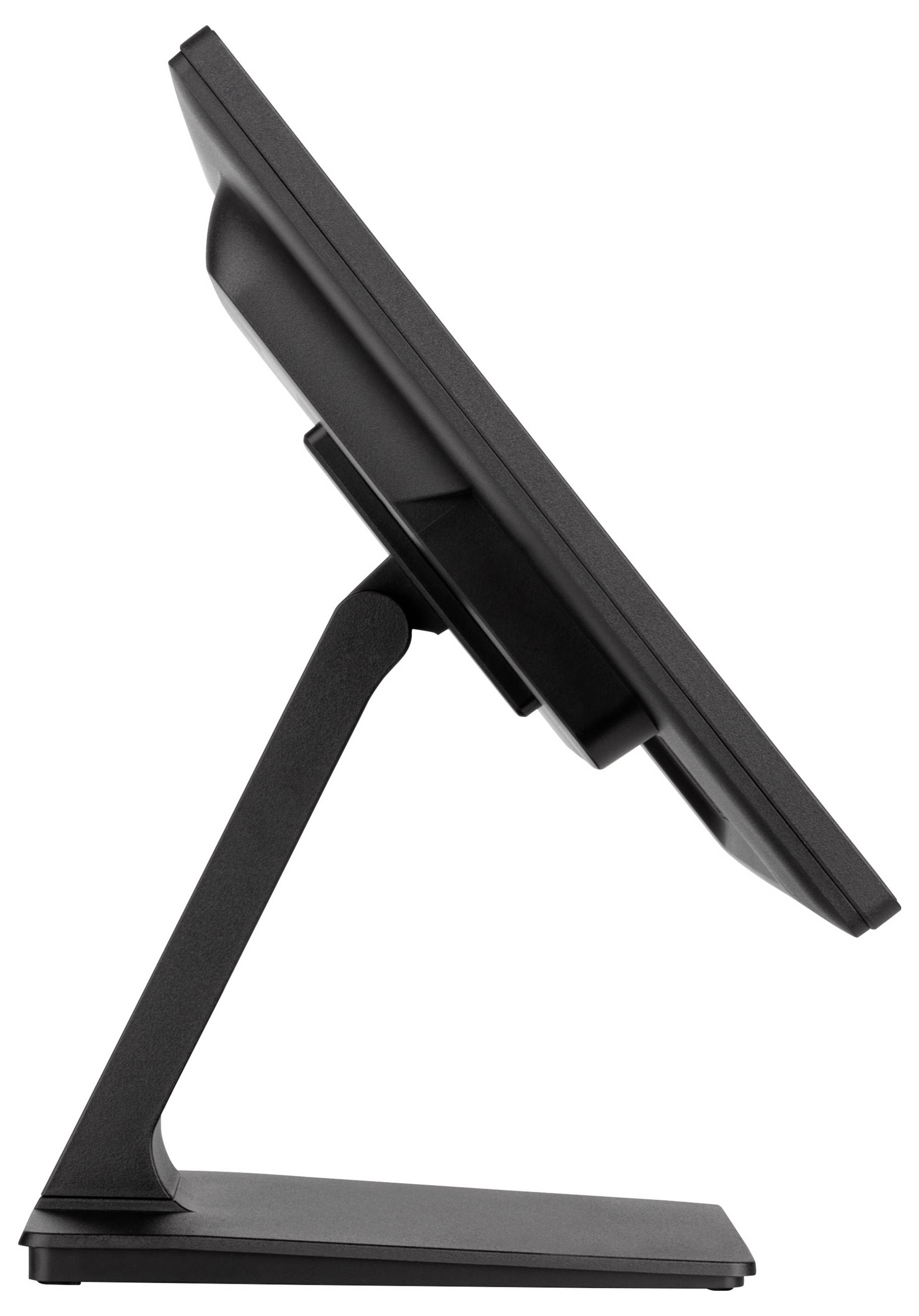

Black tablet or monitor display on an adjustable angled stand against a white background.

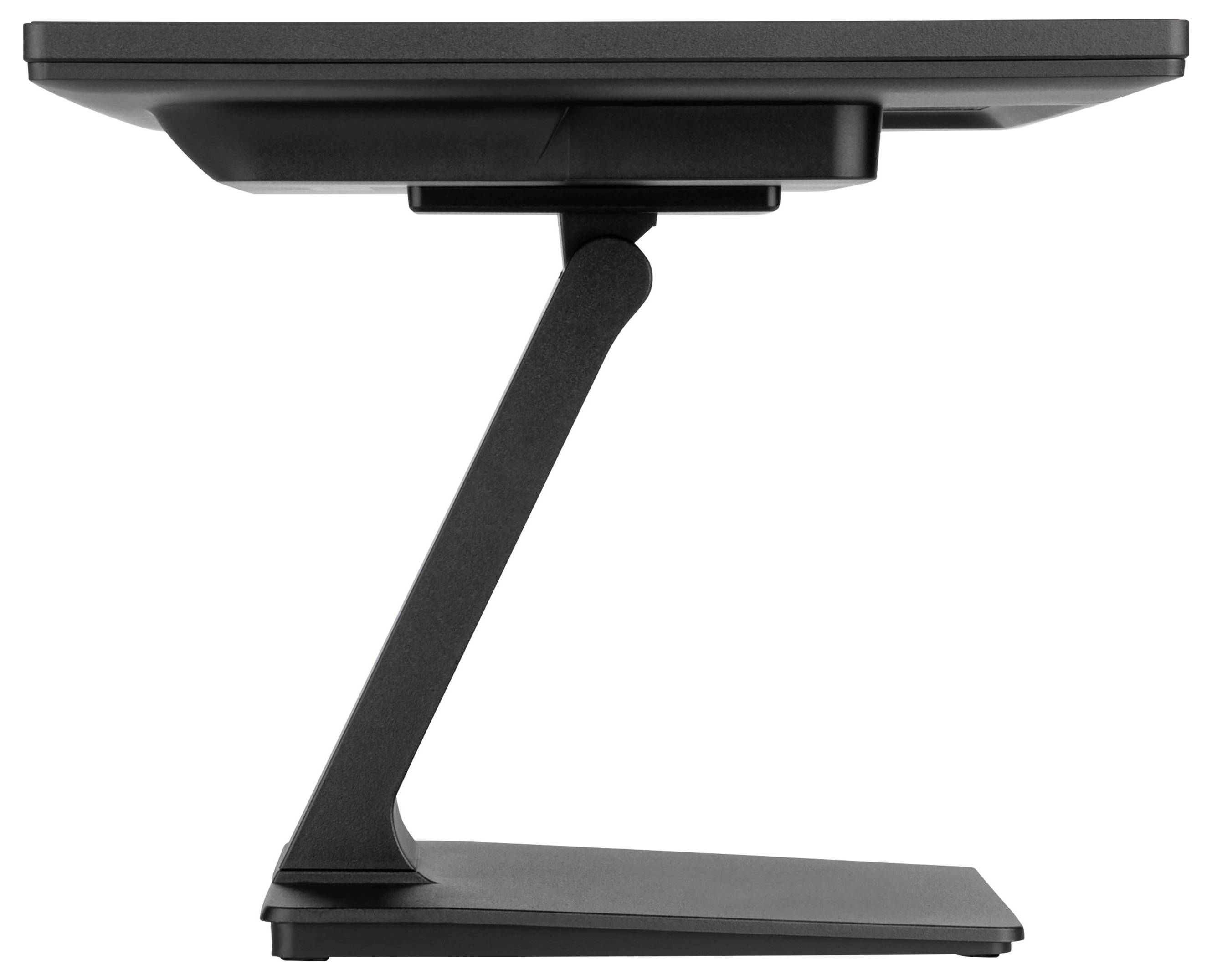

Black modern Z-shaped desk lamp with a flat rectangular base and top, shown in side view on a white background.

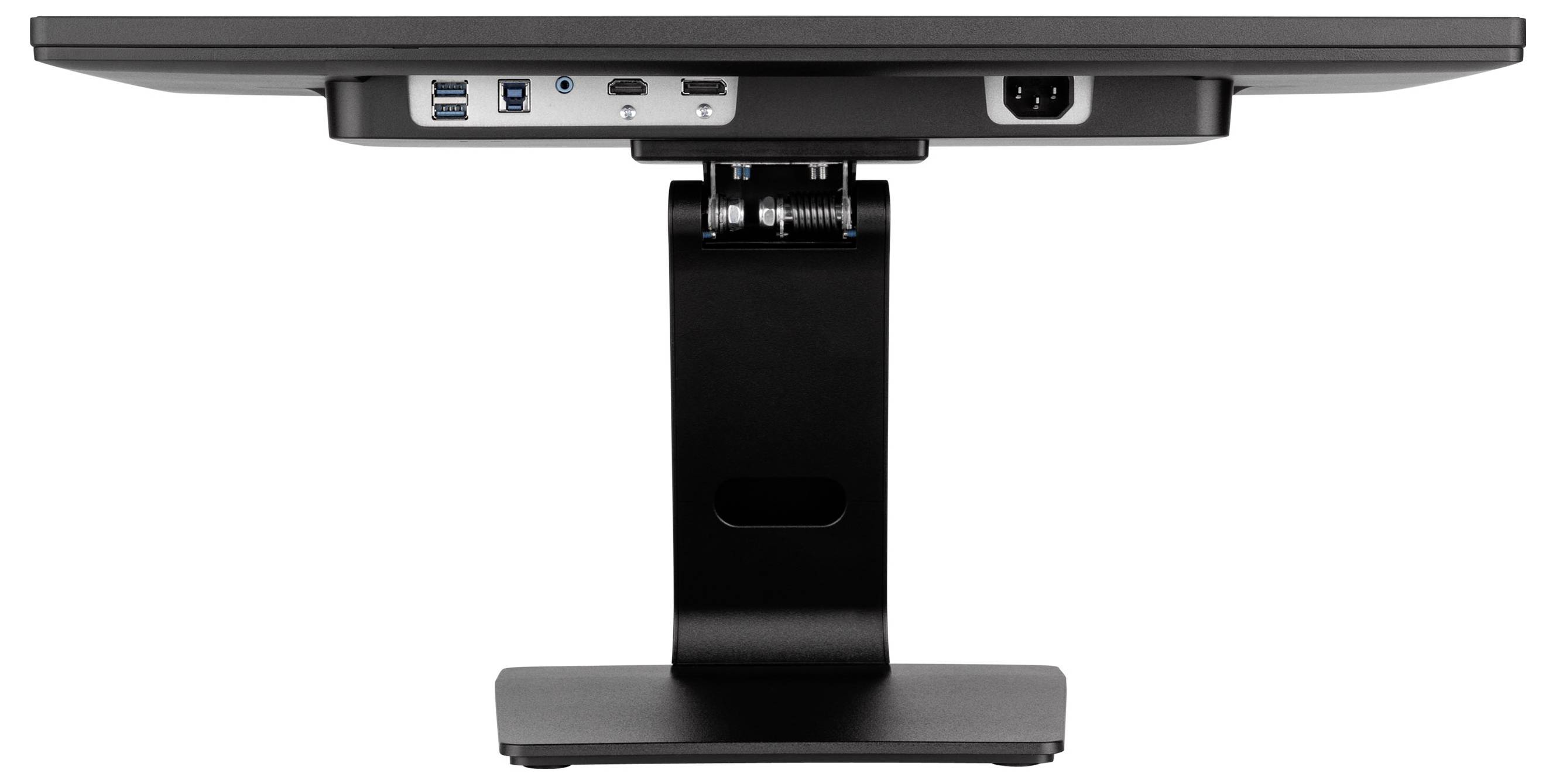

Side view of a black monitor stand with a wide base, central column, and adjustable top bracket holding a screen.

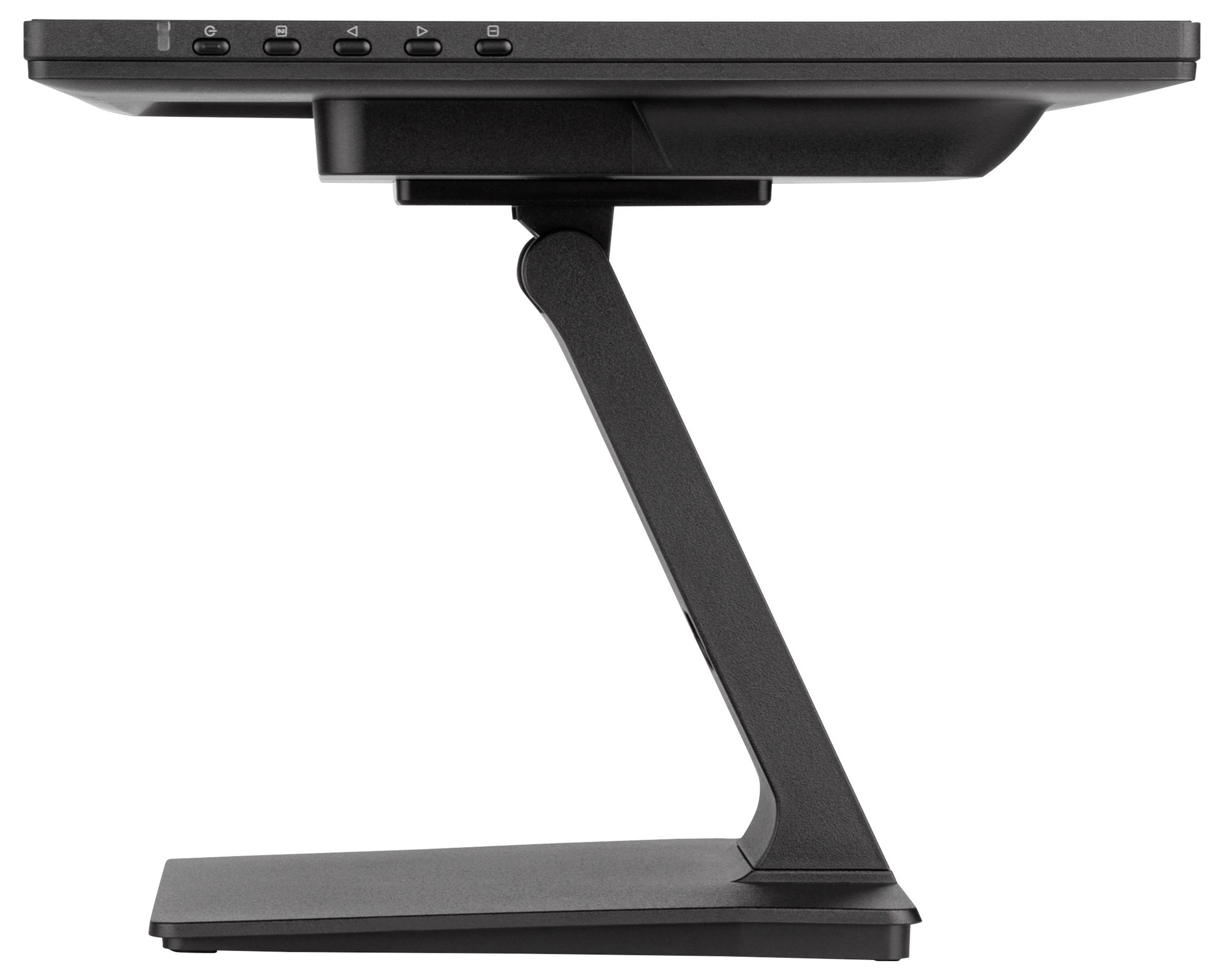

Black adjustable desk lamp with a flat rectangular base and angled support arm, shown in side view on a white background.

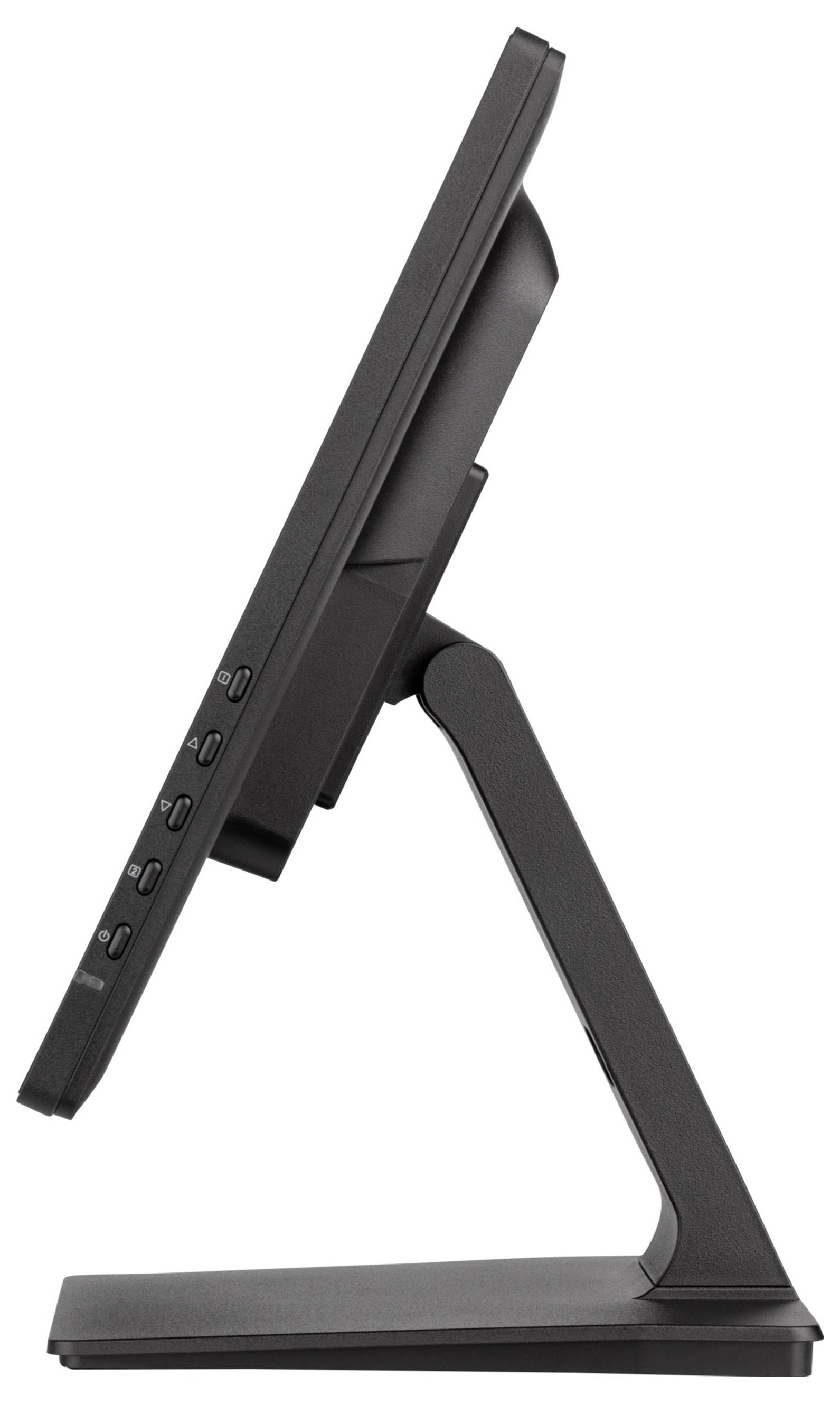

Black flat-panel computer monitor shown in side view on a stand, isolated on a white background.

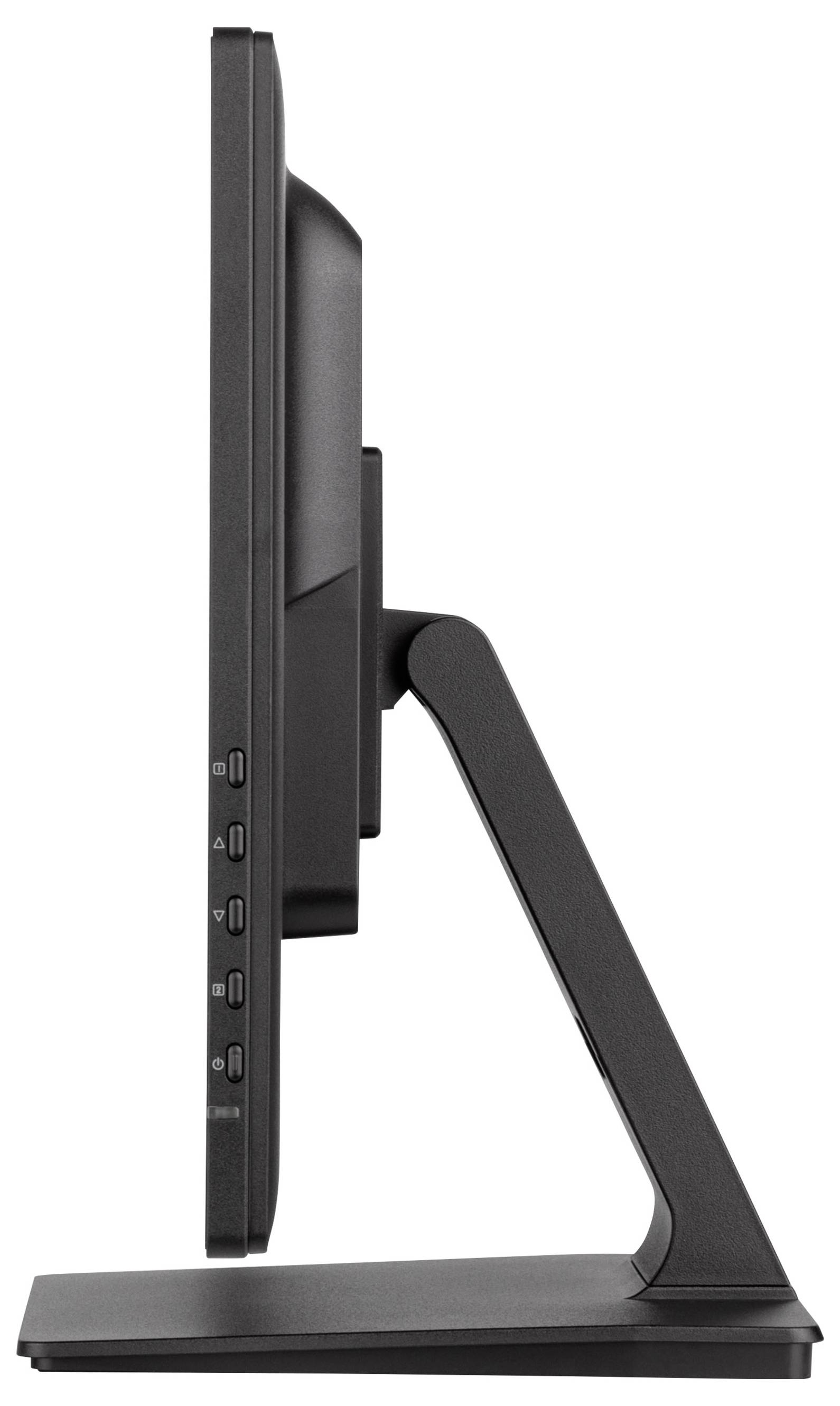

Side view of a black computer monitor on a flat stand with an adjustable angled support arm.

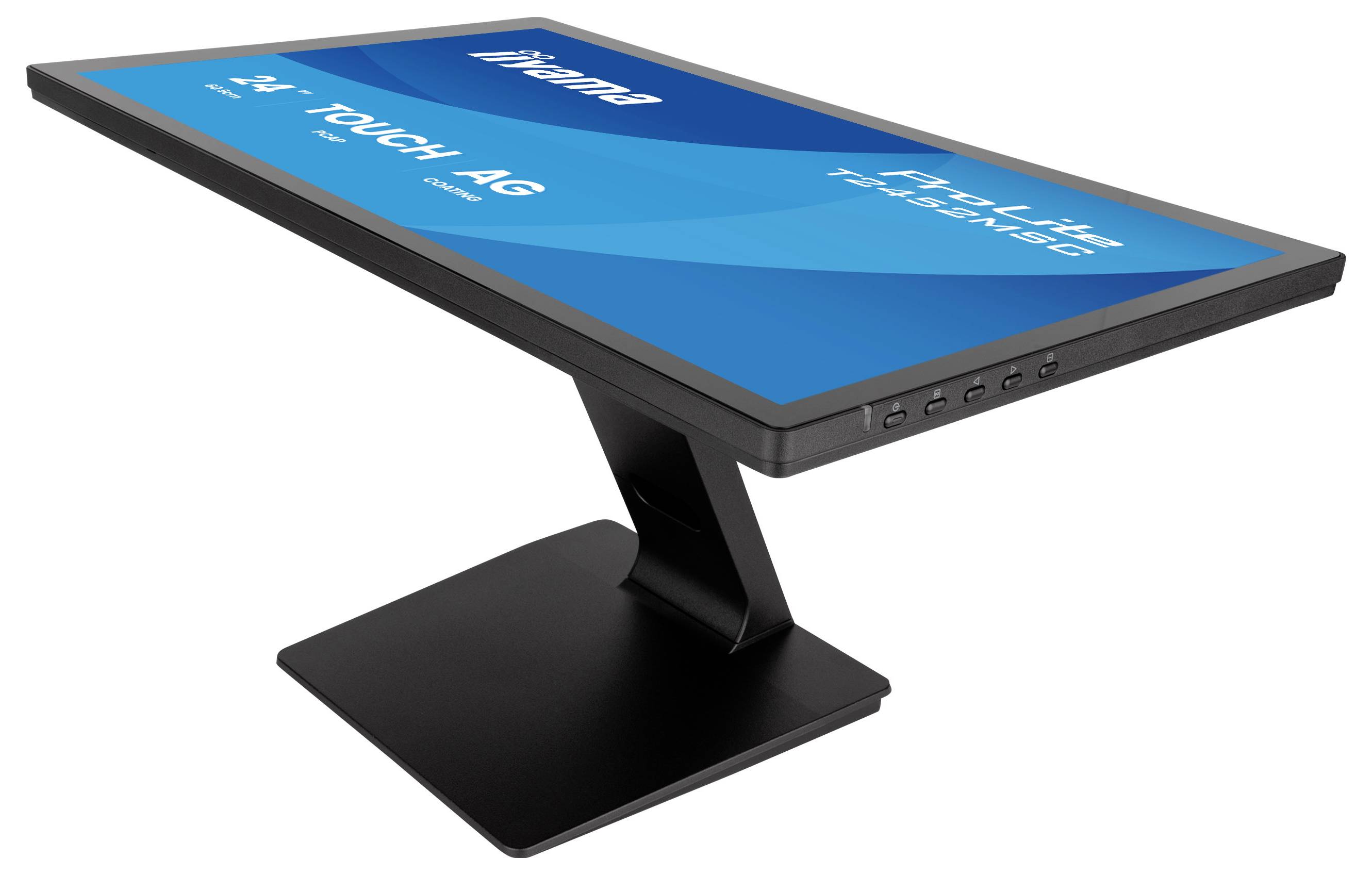

Angled touchscreen kiosk display on a black pedestal stand<br>

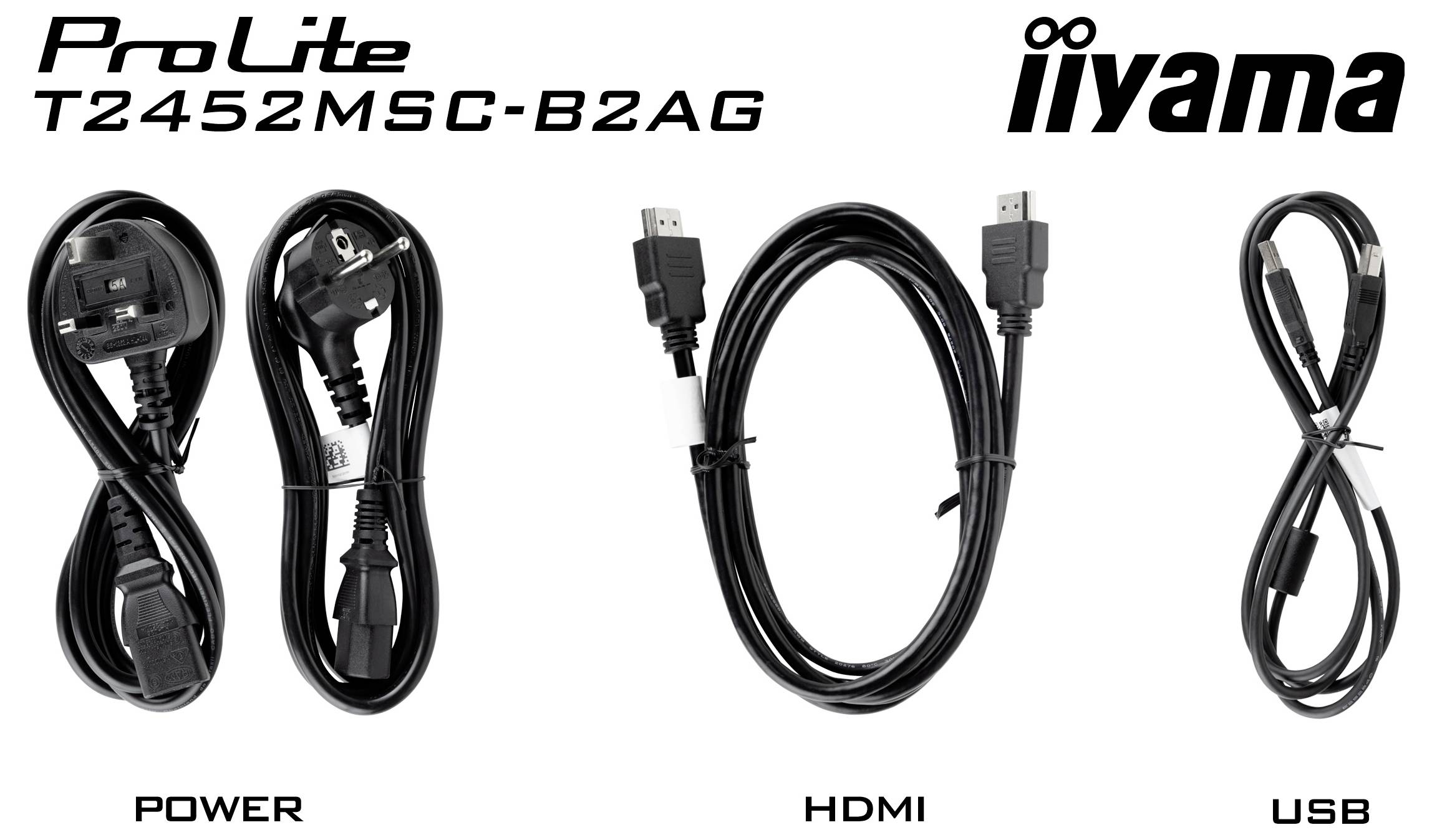

iiyama ProLite T2452MSC-B2AG monitor accessories shown: power cable, HDMI cable, and USB cable.<br>

1/18

Product data sheet

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Iiyama ProLite T2452MSC-B2AG computer monitor 61 cm (24") 1920 x 1080 pixels Full HD LED touch-screen black

Screen size 61 cm (24 inch)
Energy efficiency rating (calc): E (A - G)
Interfaces: Response time: 5 ms

Technical specifications

Screen technology: LED
Contrast ratio 1300:1
0.275 x 0.275 mm pixel distance
Tilt angle range -5 - 90°
Energy efficiency rating (HDR): Not available

Product type: Industrial touchscreen

Image format: 16:9

Response time: 5 ms

Brightness: 360 cd/m²

Hor. viewing angle: 178°

Vertical viewing angle: 178°

Factory colour: Black

No. of HDMI ports: 1 x

No. of USB ports: 2 x

No. of DisplayPort: 1 x

Width: 567 mm

Height: 385 mm

Depth: 253.5 mm

Dim: (W x H x D) 567 x 385 x 253.5 mm

Weight: 5.6 kg

Power consumption (standby): 1.5 W

Display size: 24 inch - 29 inch

: E (A - G)

Display: 61 cm (24 inch)

Audio power (max.): 2 W

Power supply (details): 100 - 240 V

Touchscreen (display): Yes

Display (cm): 61 cm

Screen size diagonal (cm): 60.5 cm

Screen size diagonal (inches): 24 inch

Power consumption (off): 0.3 W

Power consumption (ON): 18 W

Cable length: 1.5 m

Display properties: IPS

Display resolution: 1920 x 1080 Pixel

Frame rate: 120 Hz

Range of uses: Office

Display resolution mode: Full HD

HDCP: Yes

Type: internal

: 100 x 100 mm

UKCA: yes

Number of speakers: 2

Anti-glare screen: yes

Number of simultaneous touchpoints: 10

Headphone out: yes

Cable lock slot: yes

Brightness: 360 cd/m²

Active display area (W x H): 527 x 296,5 mm

VESA mounting: yes

Built-in USB hub: yes

Headphone outputs: 1

Built-in speaker(s): yes

On Screen Display (OSD): yes

Cable management: yes

Horizontal scan range: 30 - 138 kHz

HDMI cable length: 1.5 m

USB Touch port: yes

Palm rejection: yes

Flicker-free technology: yes

Low Blue Light technology: yes

Quick start guide: yes

Energy consumption (SDR) per 1000 hours: 18 kWh

Positional accuracy: 2 mm

: 2

Mean time between failures (MTBF): 50000 h

HDMI: yes

Package weight: 7.1 kg

Plug and Play: yes

Built-in camera: no

Power cable length: 1.8 m

Tilt adjustment: yes

Viewable size, horizontal: 52.7 cm

Viewable size, vertical: 29.6 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3796687 Iiyama IIYAMA 60.5cm (23,8"") T2452MSC-B2AG 16: Industrial touchscreen EEC: E (A - G) 61 cm (24 inch) 16:9 5 ms

Description

Enjoy a smooth and intuitive control with the ProLite T2452MSC-B2AG, a 24" (60.5 cm) full HD touch screen developed for a natural and precise touch. Its DeepContrast PCAP+ (Optical Bonded PCAP) 10-point touch technology provides for immediate response, lively contrast and reduced reflections thanks to optical gluing. The display is also protected against moisture and potential condensation. The anti-fingerprint and anti-glare coating keeps the screen clean and easy to read, while the IPS panel provides rich colors and a consistent image quality from any angle. The adjustable pedestal was developed for comfort and efficiency and supports an ergonomic positioning, while the integrated cable management system provides for a tidy workstation. With integrated audio and versatile connection possibilities (HDMI, DisplayPort, USB 3.2-hub) it offers a clear and flexible setup. Sleek edge-to-edge glass and sophisticated black design make it stylish and functional – perfect for interactive signage, retail, POS, hospitality and creative environments.
