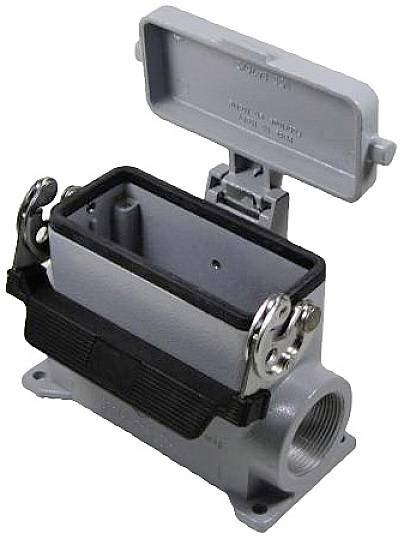

ILME MAP24LS32 MAP 24 LS32 Socket enclosure 1 pc(s) Piece
Packaging type
Piece
Product type
Socket enclosure
Thread size
M32
Case material
Aluminium
Type
MAP 24 LS32
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Type
MAP 24 LS32
- Product type
Socket enclosure
- Series
MAP
- Manufacturer part #
MAP24LS32
- Features
1x cable entry (lateral)
+ longitudinal brace
Anti-corrosive
+ hinged cover
UV-resistant
- Thread size
M32
- Case material
Aluminium
- Content
1 pc(s)
- Terminal Ø (max.)
21.0 mm
- Clamp Ø
11.0 mm
IP65
- Max. temperature
125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2566080 ILME MAP24LS32 MAP 24 LS32 Socket enclosure 1 pc(s) Piece
Description
THE Ilme article number "MAP 24 LS32" defines the article "Base housing, high, Gr.104.27, aluminum, 1 bracket, 1xM32 on the side, metal lid". The C-Type series housing is the classic housing for standard size and high quality industrial connectors, which is reflected, for example, in the stainless steel locking system with roll and spring.
