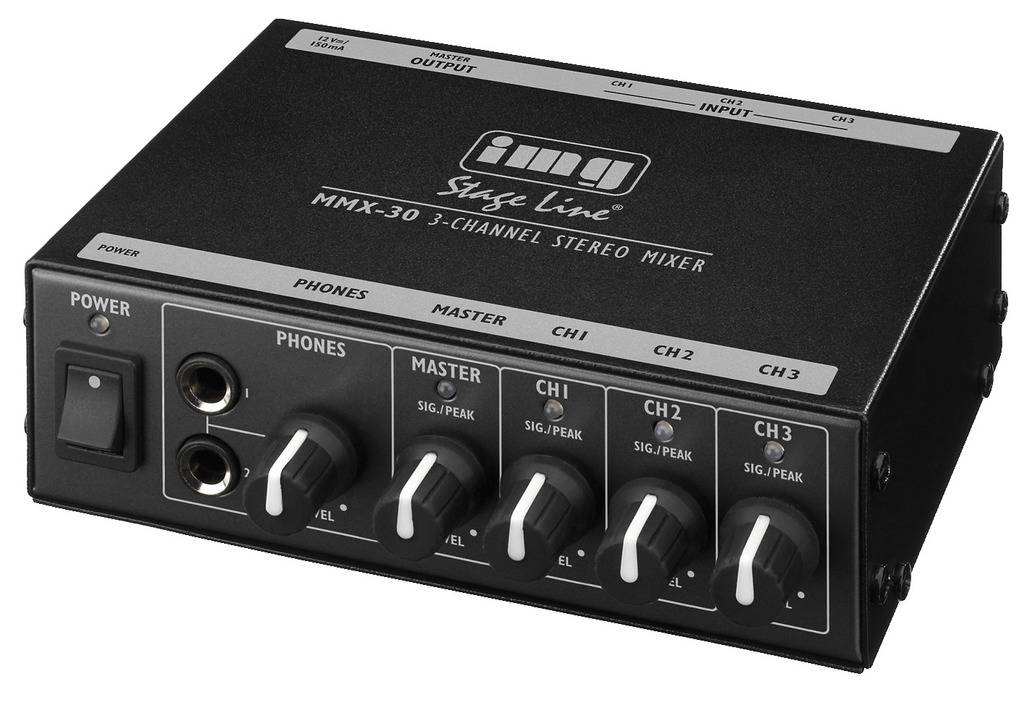

IMG Stageline MMX-30 Mixing console No. of channels:3
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- General information:
- Input sensitivity:
- Mic: -
- Line: 40 mV
- Outputs: max. 4 V (Master, stereo) 2 x 10 mW/2 x 32 Ohm (headphones)
- Frequency range: 5-30000 Hz
- Harmonic distortion:
- 66 dB
- Power supply: via suppl. plug power supply
- Permissible operating temperature: 0-40°C
- Dimensions: 147 x 50 x 119 mm
- Weight: 755 g
- Inputs: 3 x RCA L/R
- Outputs: 1 x RCA L/R 2x6.3 mm stereo jack (headphones)
- Power supply: 1 xKleinspannungsbuchse
- Product type
Mixing console
- Channels
3
- No. of inputs
3 x
- Interfaces
RCA out
RCA in
6.35 mm headphone out
- No. of 6.3 mm headphone outputs
1 x
- No. of line-ins
3 x
- Weight
755 g
- Width
147 mm
- Height
50 mm
- Length
119 mm
- Dim
(L x W x H) 119 x 147 x 50 mm
Documents & Downloads
Datasheet
Datasheet 1332120 IMG Stageline MMX-30 Mixing console No. of channels:3
User & Safety Instructions
User & Safety Instructions 1332120 IMG Stageline MMX-30 Mixing console No. of channels:3
Conformity certificate
Conformity certificate 1332120 IMG Stageline MMX-30 Mixing console No. of channels:3
Description
Features
- Compact 3-channel stereo-Line Mixer
- 3 stereo input channels, each with a level control
- 1 stereo sums output, adjustable
- Cinch connectors for input channels and output
- 2 stereo headphone outputs, together adjustable
- Signal-to-peak LEDs for input channels and peak-LED for the output
- This text is machine translated.
Scope of delivery
- Mains adapter.
