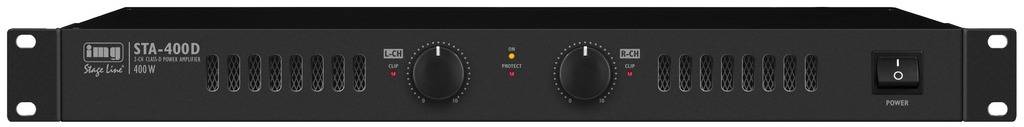

IMG Stageline STA-400D PA amplifier RMS power per channel (at 4 Ohm): 270 W
EAN:
Part number:
Item no:
Technical specifications
- Output power:
- Sinusoidal power:
- 4 ohms: 2x270 WRMS2x325 WMAX
- 8 ohms: 2x180 WRMS2x240 WMAX
- 8 ohm bridge operation: -
- 4-ohm bridge operation: -
- Max. Power 700 WMAX
- General:
- Inputs: 1 V/10 kOhm (XLR, bal.).1 V/4.7 kOhm (phono)
- Frequency range 20-20000 Hz
- Signal-to-noise ratio > 110 dB, A"-rated
- Crosstalk attenuation: -
- Distortion factor < : 0.02 %
- Power supply 230 V AC/50 Hz/600 VA
- Permissible operating temperature: 0-40 °C.
- Dimensions 482x277x52 mm, 1 HE
- Weight: 2.5 kg
- Connections: 1 x cold device book1 x 3-pin XLR L/R1 x cinch L/R1 x NEUTRIK-type SPK L/R2 x screw-type pair"
- Product type
PA amplifier
- Power per channel (4Ω)
270 W
- Power per channel (8Ω)
180 W
- Max. frequency
20000 Hz
- Min. frequency
20 Hz
- Interfaces
RCA in
XLR in
SPK type socket
Screw terminals
- Weight
2.5 kg
- Width
48.2 cm
- Height
5.2 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332775 IMG Stageline STA-400D PA amplifier RMS power per channel (at 4 Ohm): 270 W
Description
EVENT rookie 01/2015
To STA-400D and STA-800D small and fine, it is true well-being very good - real weak points we have on both subjects not found.
It should be noted that the minimum noise of the two amps record-breaking. . ..
This text is machine translated.
To STA-400D and STA-800D small and fine, it is true well-being very good - real weak points we have on both subjects not found.
It should be noted that the minimum noise of the two amps record-breaking. . ..
This text is machine translated.
Features
- The new generation of digital PA amplifiers from IMG Stage Line impresses with its rich performance and high energy efficiency.
- Quiet and light are also features that recommend this series for fixed installation as well as for mobile use.
- Stereo PA digital amplifier
- Class-D concept
- 482mm (19") rack mount, 1U, with mounting brackets included
- Silent operation by temperature-controlled fans
- Lightweight design thanks to compact switched-mode power supply
- Energy-saving concept thanks to high efficiency
- Also impressive in the bass range thanks to generously dimensioned buffer electrolytic capacitors (high power reserve)
- 2 level controls
- Protective circuits against short-circuit and overheating
- LEDs for power, overload (CLIP) and protect
- Special flat design
- NEUTRIK type SPK connections
Scope of delivery
- Mounting bracket
