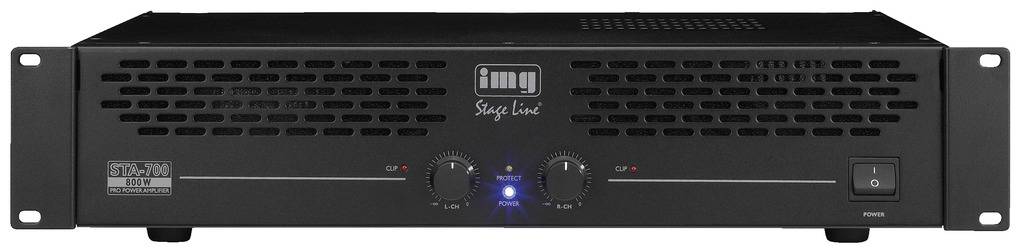

IMG Stageline STA-700 PA amplifier RMS power per channel (at 4 Ohm): 275 W
EAN:
Part number:
Item no:
Technical specifications
- Output power:
- Sinusoidal power:
- 4 ohms: 2 x 275WRMS
- 8 ohms: 2 x 200WRMS
- Maximum power: 800WMAX
- General information:
- Inputs: 0.85 V/55 kOhm
- Frequency range: 10-2 0000 Hz
- Signal-to-noise ratio: 85 dB
- Crosstalk attenuation:> 43 dB
- The non-linear distortion factor< 0.05%
- Power supply 230 VWechsel/50 Hz/1100 VA
- Permissible operating temperature: 0-40°C
- Dimensions: 482 x 98 x 296 mm, 2 HE
- Weight: 9.4 kg
- Inputs: 1 x 6.3 mm jack L/R,
- : 1 x RCA L/R
- Outputs: 2 x speaker 1 x 6.3 mm jack L/R 2 x screw terminals Pair
- Product type
PA amplifier
- Power per channel (4Ω)
275 W
- Power per channel (8Ω)
200 W
- Max. frequency
20000 Hz
- Min. frequency
10 Hz
- Interfaces
6.3 mm jack in
RCA in
SPK type socket
Screw terminals
- Weight
9.4 kg
- Width
48.2 cm
- Height
9.6 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332779 IMG Stageline STA-700 PA amplifier RMS power per channel (at 4 Ohm): 275 W
Description
Features
- Stereo-PA-amplifier for universal use.
- Fan cooled
- 2 level control
- Ground-lift switch
- Loudspeaker input delay
- Protected against short-circuit, overheating and dc voltage overlay on the outputs by protective circuit with LED display
- Per channel 1 LED for over-regulation (clip)
- This text is machine translated.
