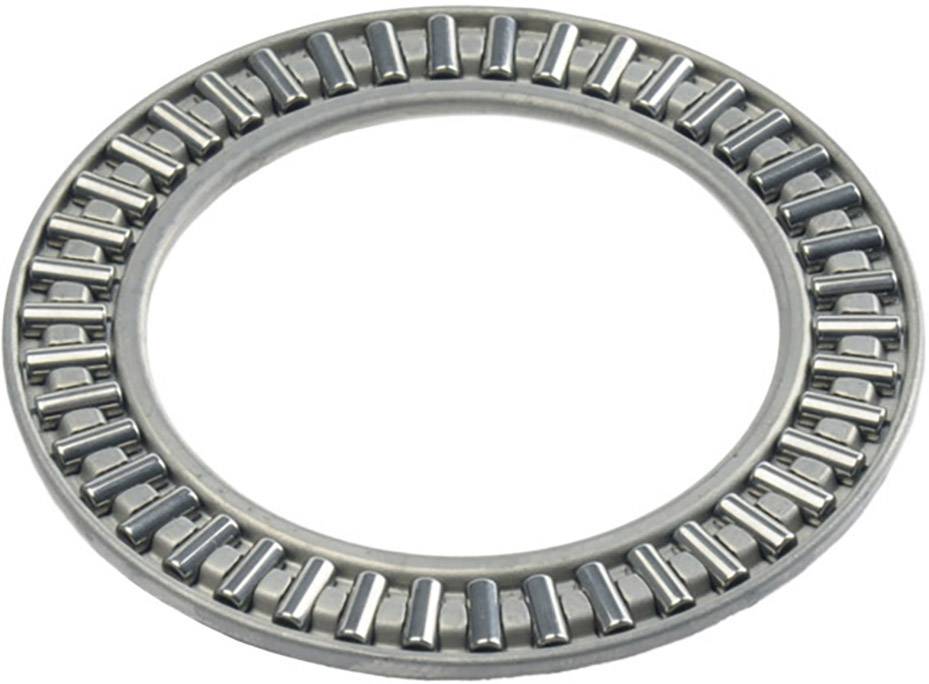

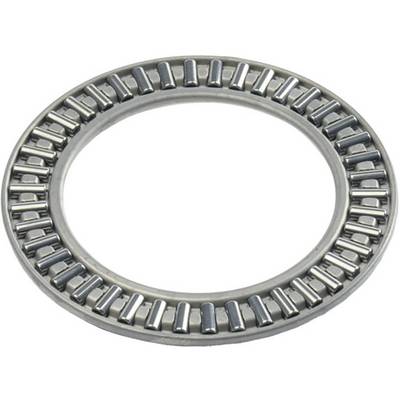

INA Axial bearing cages AXK1730-A/0-10
EAN:
Part number:
Item no:
Bore Ø
17 mm
Outside Ø
30 mm
Product type
Axial bearing cages
Type
AXK1730-A/0-10
Manufacturer part #
AXK1730-A/0-10
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Single direction, according to DIN 5405-3
- Type
AXK1730-A/0-10
- Manufacturer part #
AXK1730-A/0-10
- Dim
(Ø x L) 30 mm x 2 mm
- (Ø)
30 mm
- Length
2 mm
- Width
30 mm
- Inside diameter
17 mm
- Bore Ø
17 mm
- Outside Ø
30 mm
- Weight
1 g
- UKCA
not relevant
- Product type
Axial bearing cages
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1850261 INA Axial bearing cages AXK1730-A/0-10
Description
AXK axial bearing cages, according to DIN 5 405-2
AXK Axial needle cages are made of plastic or metal axial cages with integrated needle rollers and have a very low axial height. The cages support high axial forces in one direction. Radial loads must be recorded separately. Axial needle cages assume that hardened and ground start-up areas as career can be used.
Suffix: TV = plastic cage · A = Standard.
This text is machine translated.
AXK Axial needle cages are made of plastic or metal axial cages with integrated needle rollers and have a very low axial height. The cages support high axial forces in one direction. Radial loads must be recorded separately. Axial needle cages assume that hardened and ground start-up areas as career can be used.
Suffix: TV = plastic cage · A = Standard.
This text is machine translated.
