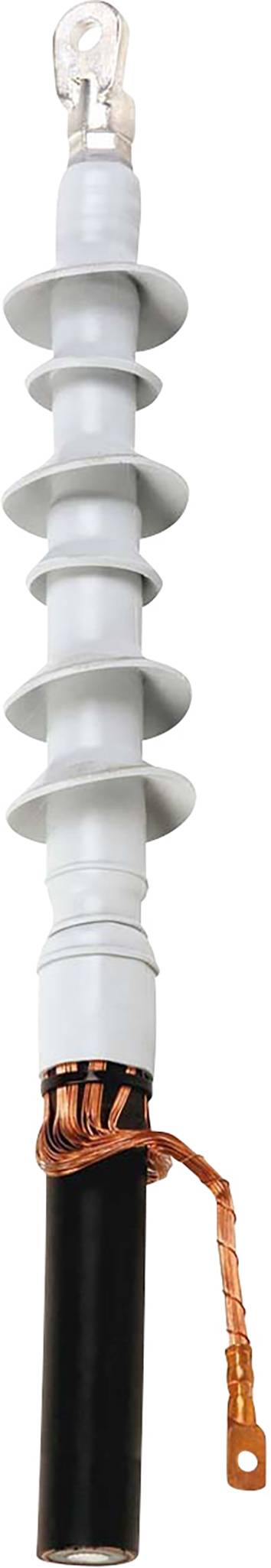

Inner end cap + outer 1x185-500qmm,12/20FL 94-EB 64-1 7000092173 3M Content: 1 pc(s)

The 3M 3M high voltage end cap Quick Term II of the 94 EB series fulfills the requirements according to DIN VDE 0278 Part 628 as well as part 629.1 for indoor and outdoor applications and is suitable for all VDE and TGL plastic insulated 12/20 kilovolt and 18/30 kilovolt cable with one or three conductors respectively. The one-piece cold-shrink closure with integrated refractive field control provides for a permanent radial contact pressure. It is resistant to creep current and consists of weather-resistant HTV silicone rubber. This makes it moisture-resistant and therefore particularly suitable for use in non-air-conditioned rooms and outdoors. The simple and fast assembly by pulling out the supporting coil enables a reliable installation of the narrow end cap even without special tools, such as shrink burner. All components required for installation are included in the delivery, but no cable lugs.

This text is machine translated.
