Intellinet 561264 Network switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)

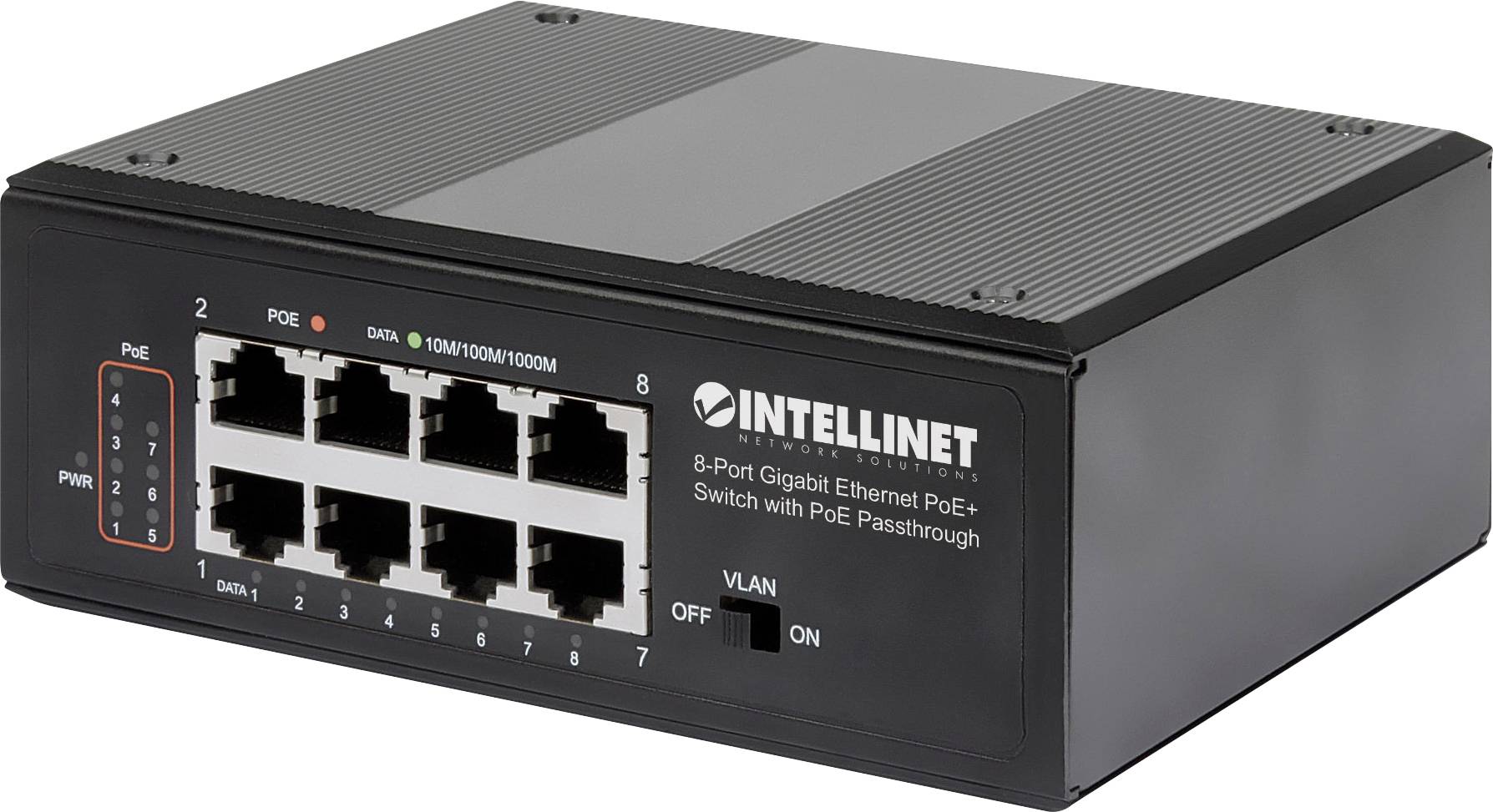

Intellinet 561264 Network switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)-0

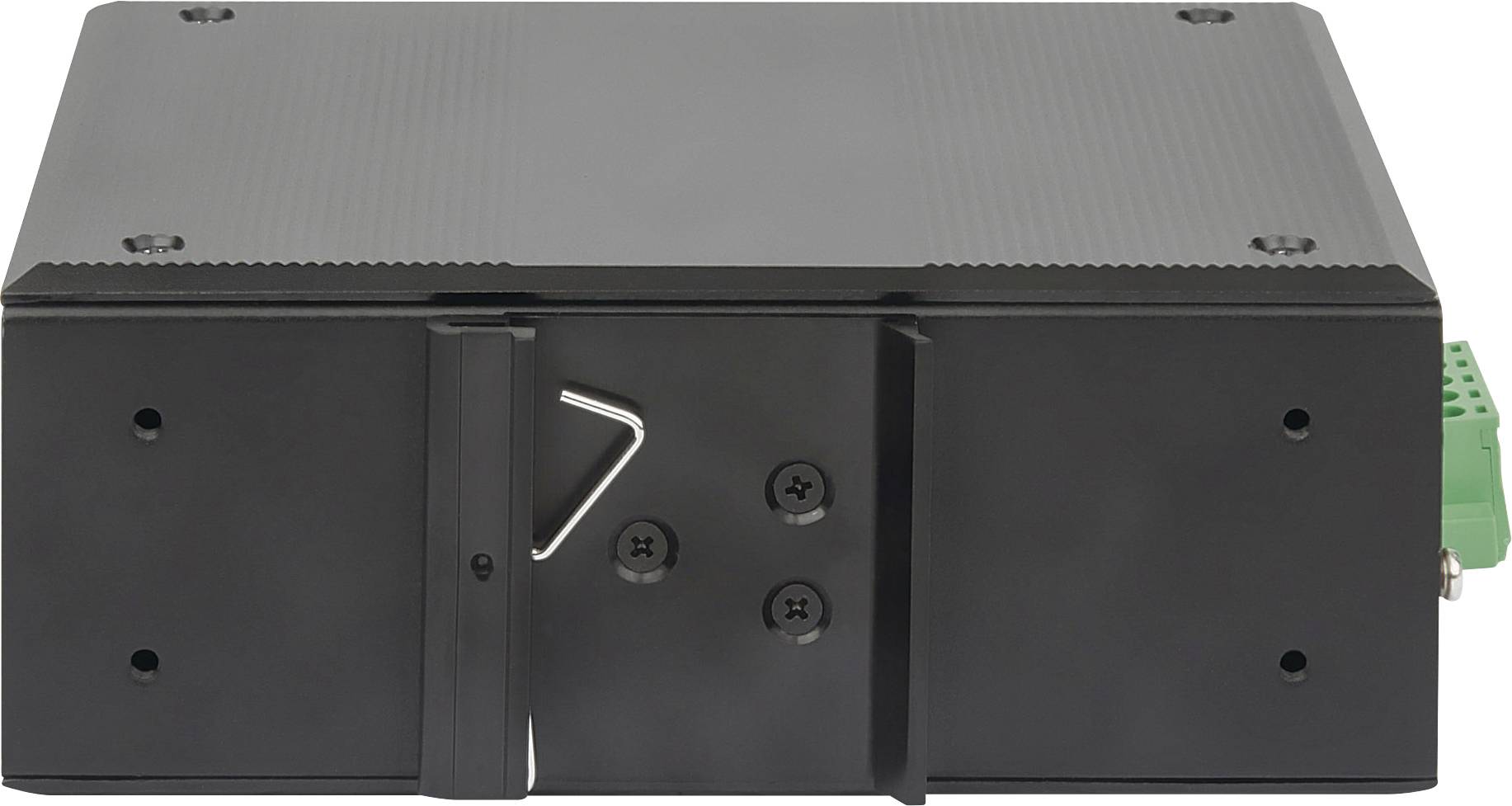

Intellinet 561264 Network switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)-1

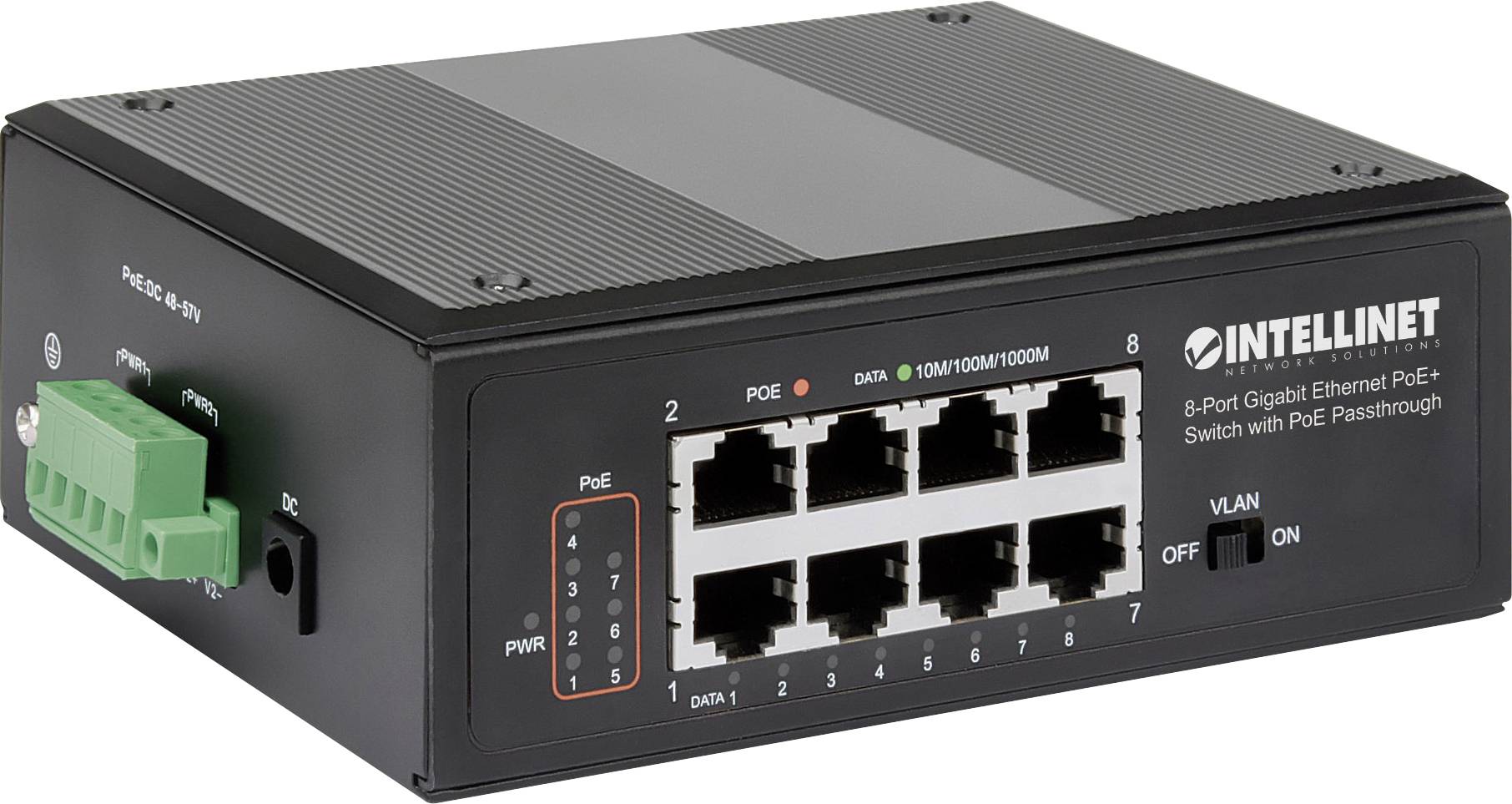

Intellinet 561264 Network switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)-2

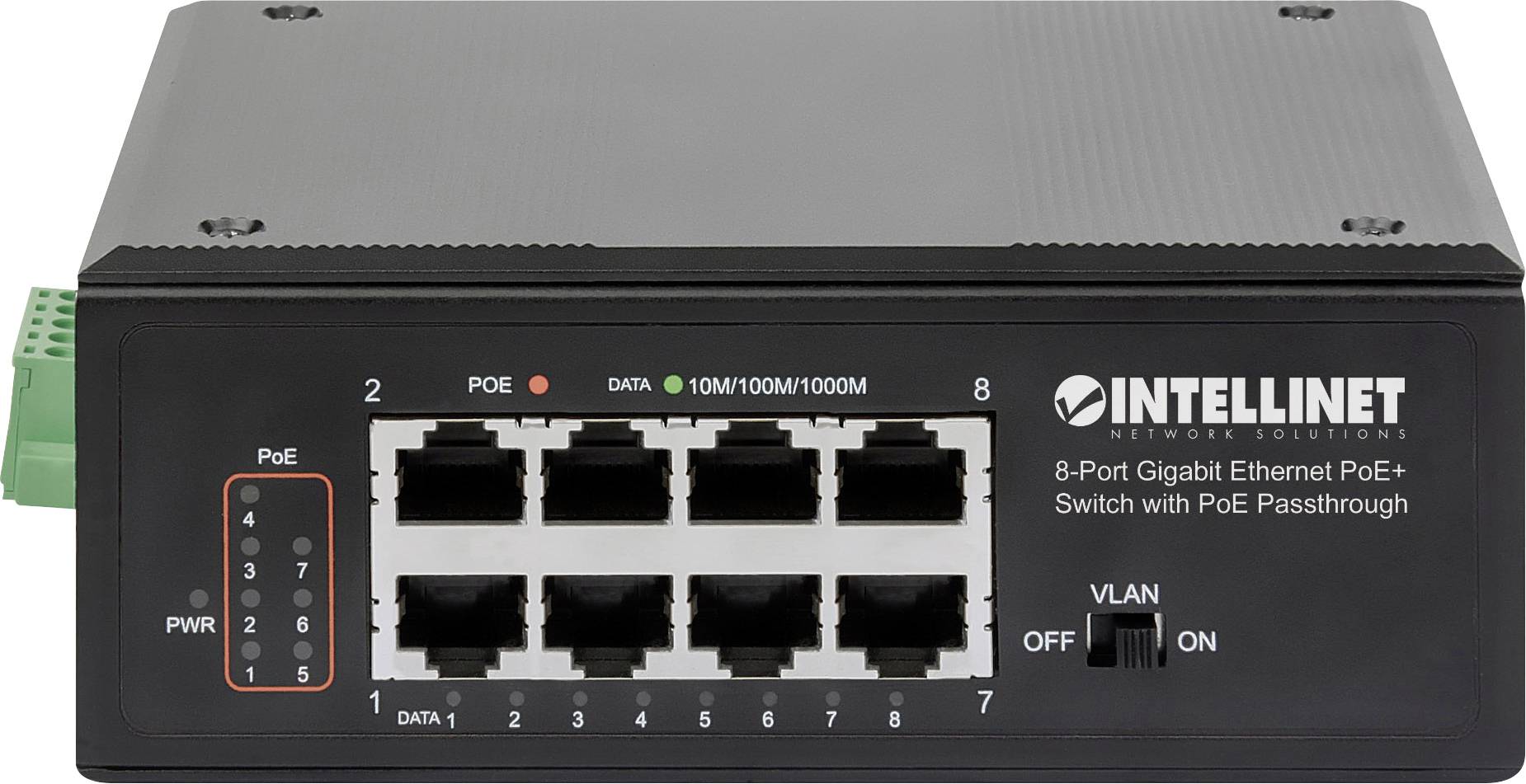

Intellinet 561264 Network switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)-3

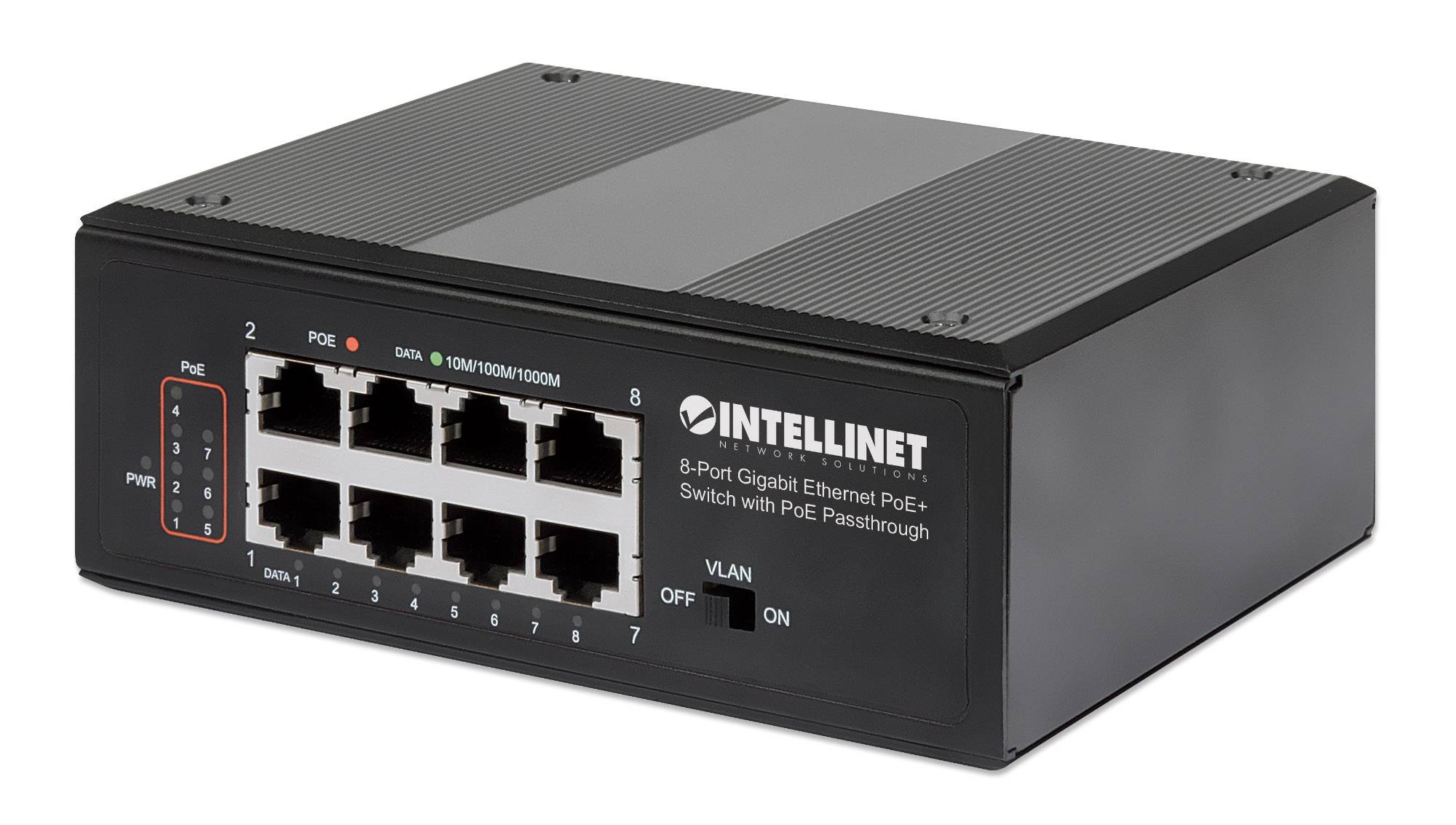

Intellinet 561264 Network switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)-4
Intellinet 561264 Network switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)-5
Intellinet 561264 Network switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)-6
1/7
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

INTELLINET 8-Port PoE+ Gigabit Switch with PoE-pass-through

  • One PD PoE port with 95 W input power
  • Seven PSE PoE ports
  • PoE power budget up to 120 W.
  • IEEE 802.3at/af compliant
  • DIN-rail mount
  • This text is machine translated.

Technical specifications

  • Operating temperature: -20 – 75°C
  • Storage temperature -40 to 75°C.
  • Operating humidity: 10% – 90% RH, non-condensing
  • Storage humidity: 5% – 90% RH, non-condensing
Product type

Network switch

PoE

IEEE 802.3af (12.95 W)

IEEE 802.3at (25.5 W)

LAN data transfer rate

10 / 100 / 1000 MBit/s

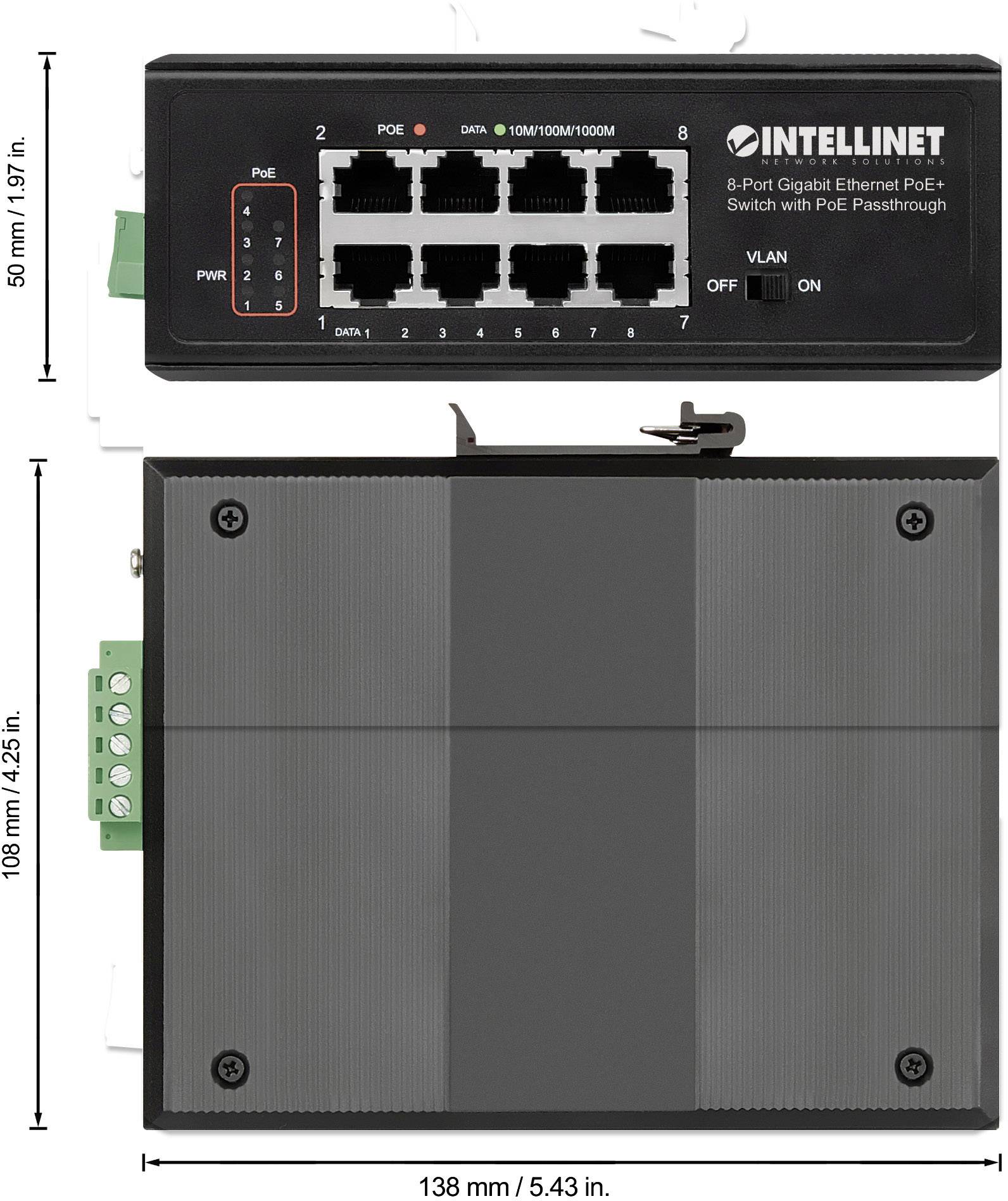

Width

108 mm

Height

50 mm

Length

138 mm

Depth

150 mm

Factory colour

Multicolour

Weight

0.90

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2270525 Intellinet 561264 Network switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)

User & Safety Instructions

User & Safety Instructions 2270525 Intellinet 561264 Network switch 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)

Description

Features

  • Power supply
  • • via PD port (port 8)
  • - input: IEEE802.3af/at compliant
  • - PoE power budget: 95 watts (max.)
  • • via power supply
  • - input 100 - 240 VDC, 50 - 60 Hz
  • - PoE power budget 120 watts (max.)
  • • via industrial power supply
  • - input: 48 - 57 V
  • - PoE power budget: 120 watts (max.)

Scope of delivery

  • 8-port PoE+ Gigabit switch with PoE pass-through
  • DIN rail mounting bracket
  • Quick guide

Hints

Supports up to 95 W input current from a PoE injector or PoE switch
Power and data connection for up to seven PoE network devices
Doubles the connection range between PoE source and device from 100 m to 200 m.
Power supply via PoE, power supply or power supply for industrial applications (not included)
PoE power budget up to 120 watts (depending on the power supply used)
