Name: Intellinet IP55 19" Wandverteiler mit integrierten Lüftern 6 HE 600 mm tief grau RAL7035 19" industrial cabinet (W x H x
Brand: Intellinet
SKU: 2896523
Availability: BackOrder

White, square box with a locking mechanism and a key in the lock, suitable for securely storing small items.

Intellinet IP55 19" Wandverteiler mit integrierten Lüftern 6 HE 600 mm tief grau RAL7035 19" industrial cabinet (W x H x-1

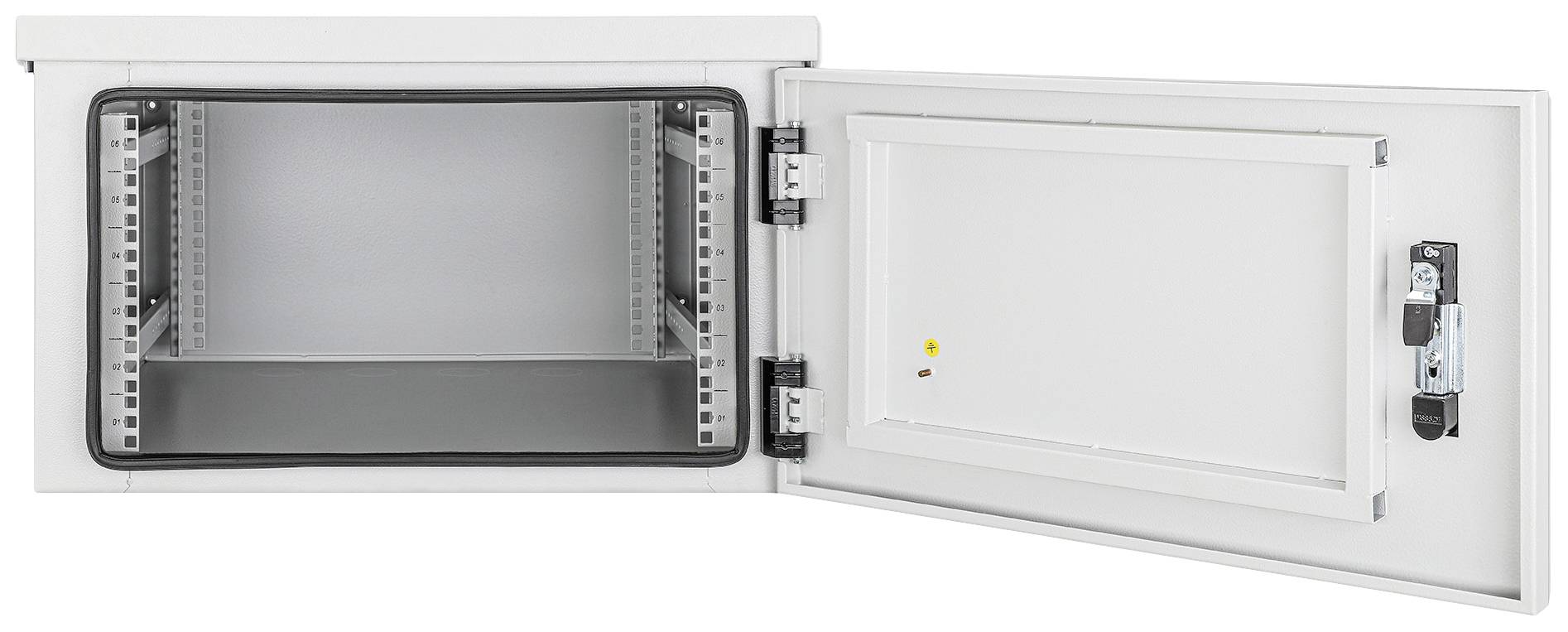

A white metal cabinet with an open, empty interior, featuring a door hinged on the right side, equipped with a locking mechanism and a seal.

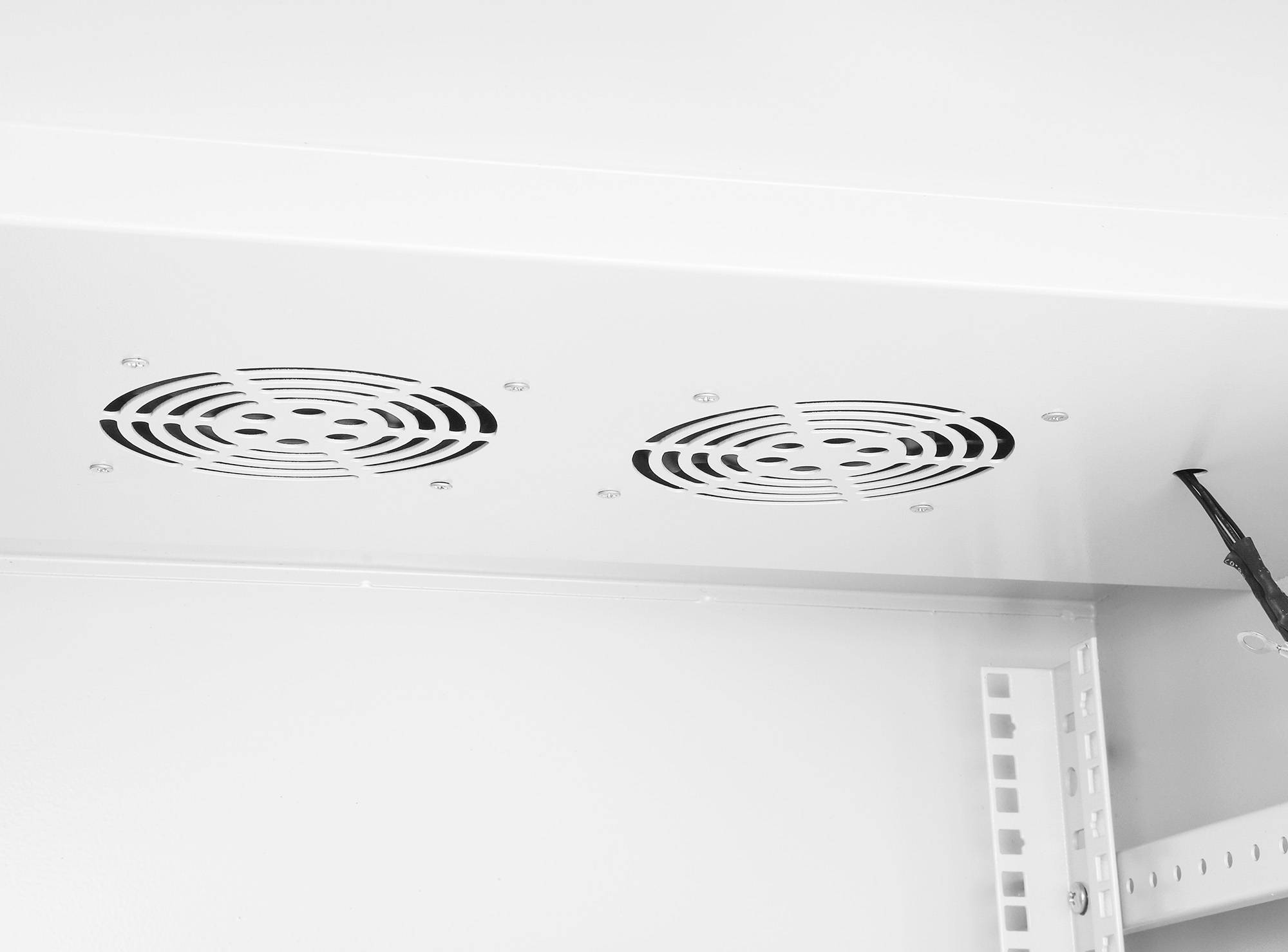

Two round ventilation grilles on the underside of a white device, connected by a cable.

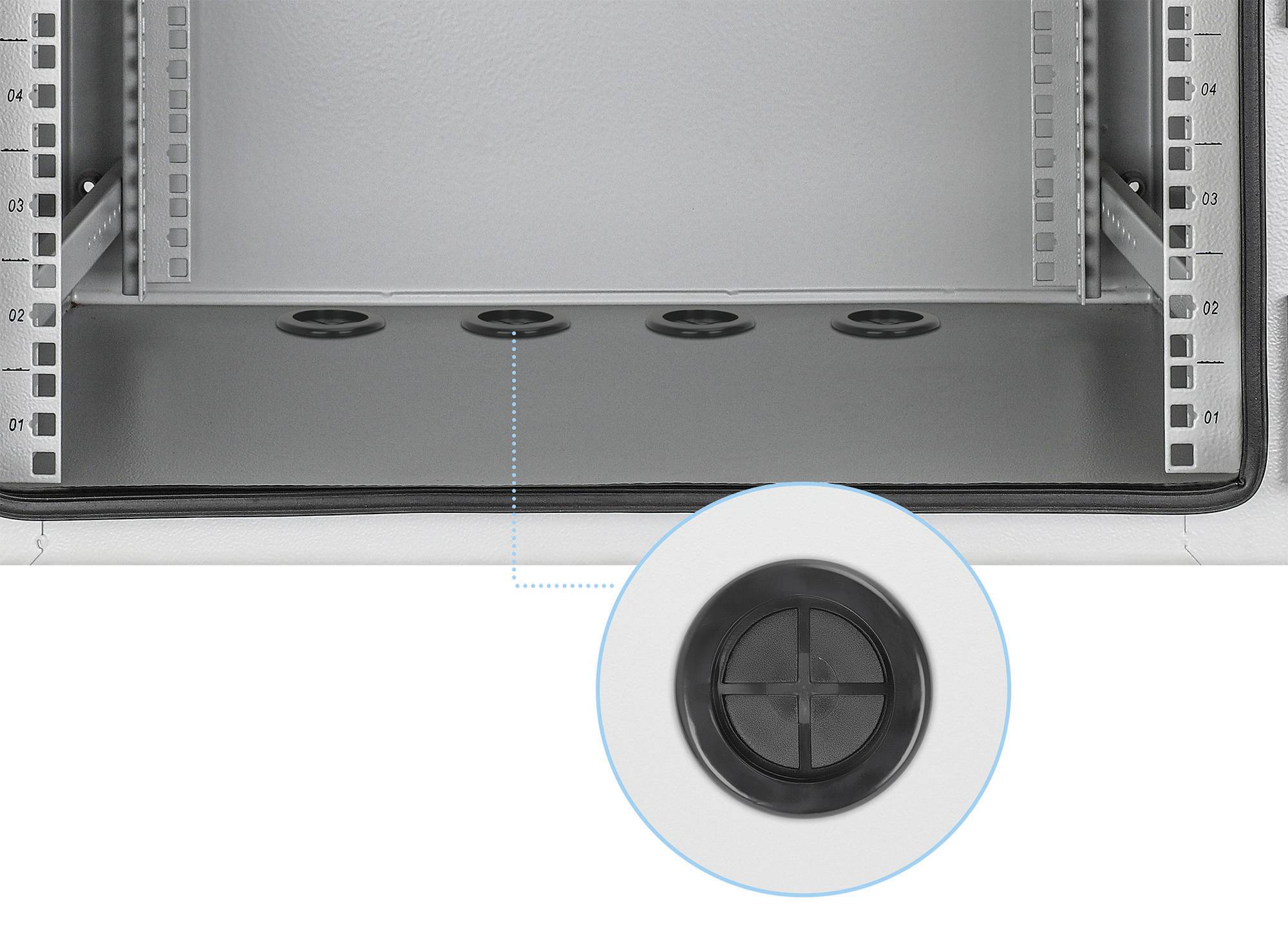

A network or server cabinet shows cable entries in the floor. A circular insert is highlighted.

1/5

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 409.00 / piece)

€ 409.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Intellinet industrial IP55 19" wall distributor

Protection class IP55 for industrial applications: Protected against dust and water spray from any angle
Robust, secure steel construction with anti-static powder coating
Usable installation depth: 169 mm to 549 mm
Integrated roof-fan unit with air filters and two quiet fans with a volume of only 24.9 dB (A)
Efficient heat dissipation for wide operating temperature range up to 50°C.

Technical specifications

Product type: 19" industrial cabinet

Rack unit: 6 U

Width: 615 mm

Height: 370 mm

Depth: 600 mm

Material: Steel

Dim: (W x H x D) 615 x 370 x 600 mm

Weight: 26.5 kg

Factory colour: Grey (RAL 7035)

Rack size: 483 mm (19")

Wireless charging: No

Product type description: Rack

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2896523 Intellinet IP55 19" Wandverteiler mit integrierten Lüftern 6 HE 600 mm tief grau RAL7035 19" industrial cabinet (W x H x

Description

19" wall housing with protection class IP55 as network cabinet for industrial applications - dust-proof and waterproof
The IP55 wall cabinet from Intellinet NETWORK SOLUTIONS is suitable because of its equipment even for harsh industrial environments. Its antistatic coated steel housing complies with IEC Standard 60529 for secure protection against dust and water jets from any angle. Four cable entries on the underside with blind plugs are securely sealed. To ensure this safety, the cabinet is supplied fully assembled and WAS ensures quick and convenient use. The robust steel construction carries heavy 19" network components with a total load of 100 kg and can be locked by a 3-point lock in the pivot lever handle. This IP55 wall housing is available in 6, 9, 12 and 18 HE.

Efficient cooling with the integrated roof fan unit
To cool your network equipment, this cabinet has a roof mounted cooler unit with two quiet fans. The heat dissipation and air circulation ensure higher performance and longer life of your network components.

This text is machine translated.
